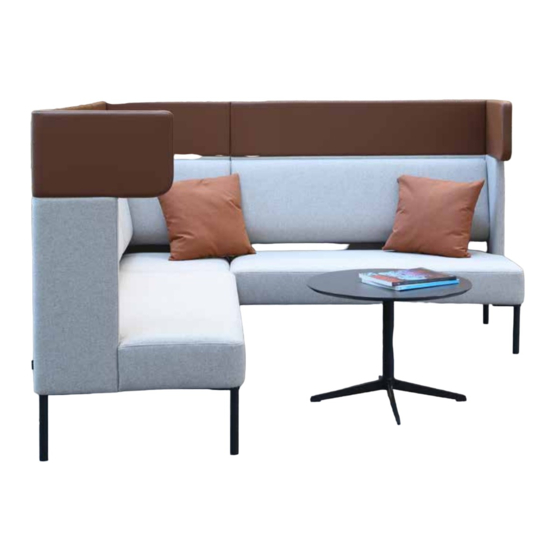

Instruction to assemble FourUs Corner modules
Four Us
FourUs Corner:
1
ATTENTION:
1) ALL BOLTS AND SCREWS ATTACHED NEED TO BE USED FOR CORRECT ASSEMBLY!
2) Do not use a knife or other sharp object to unpack the product.
3) Always be at least two persons to set up the FourUs Booth.
4) Make sure to be gentle when handling the Booth components.
5) Be careful not to let the fabric touch the floor, as it can be damaged or get dirty.
Corner
®
Tools used in the manual:
2x size 13" socket wrench
Drill with bits accordingly
Rubber hammer
Advertisement
Table of Contents
Related Manuals for Four Design FourUs Corner
Summary of Contents for Four Design FourUs Corner
- Page 1 Instruction to assemble FourUs Corner modules Four Us Corner ® FourUs Corner: Tools used in the manual: 2x size 13” socket wrench Drill with bits accordingly Rubber hammer ATTENTION: 1) ALL BOLTS AND SCREWS ATTACHED NEED TO BE USED FOR CORRECT ASSEMBLY! 2) Do not use a knife or other sharp object to unpack the product.
- Page 2 Mount the legs on all the modules, by turning the leg clockwise into the footplate metric hole. Place a corner module (module B, D or E) where you would like the corner of FourUs Corner to be placed. Be two persons to lift the attaching module (module A, C or F) and place it in the bracked on the corner seat.
- Page 3 Use two size 13mm wrench to tighten from both sides. Tighten the 3 different threaded rods little by little, until you can hear the wood squeak and the walls is pinched up against each other. The last threaded rod is to be attached under the bench parts, in the beams being next to each other.
- Page 4 Repeat the steps from 2-6 until the full FourUs Corner is assembled.
