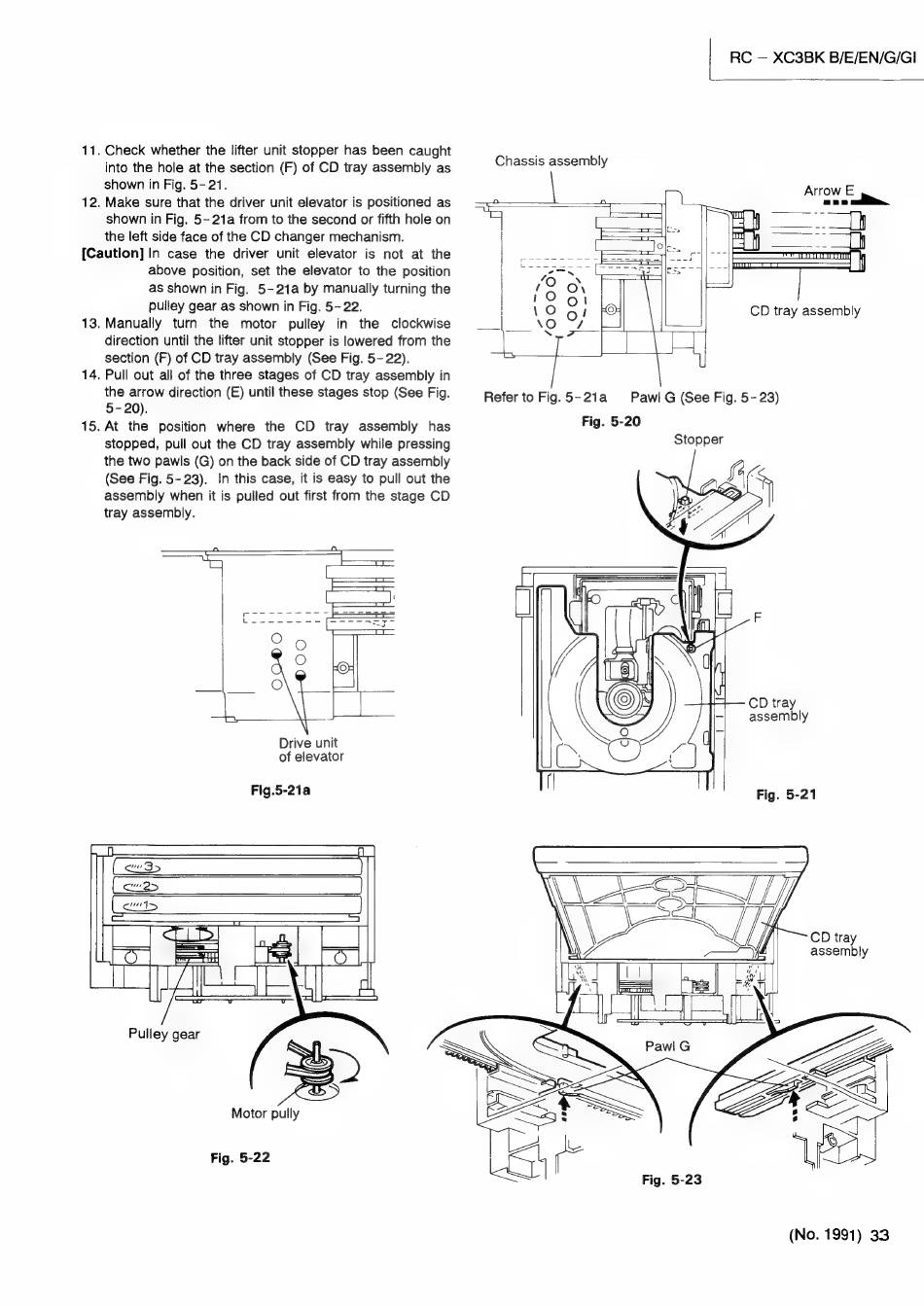

JVC RC-XC3BK Service Manual page 33

11. Check whether the lifter unit stopper has been caught
into the hole at the section (F) of CD tray assembly as
shown in Fig. 5-21.
12. Make sure that the driver unit elevator is positioned as
shown in Fig. 5-21a from to the second or fifth hole on
the left side face of the CD changer mechanism.
[Caution] In case the driver unit elevator is not at the
above position, set the elevator to the position
as shown in Fig. 5-21a by manually turning the
pulley gear as shown in Fig. 5- 22.
13. Manually turn the motor pulley in the clockwise
direction until the lifter unit stopper is lowered from the
section (F) of CD tray assembly (See Fig. 5~ 22).
14. Pull out all of the three stages of CD tray assembly in
the arrow direction (E) until these stages stop (See Fig.
5-20).
15. At the position where the CD tray assembly has
stopped, pull out the CD tray assembly while pressing
the two pawls (G) on the back side of CD tray assembly
(See Fig. 5-23). in this case, it is easy to pull out the
assembly when it is pulled out first from the stage CD
tray assembly.
Drive unit
of elevator
Fig.5-21a
Puiley gear
Motor pully
Fig. 5-22
Chassis assembly
Oa)
g 8 lay
"0 a7 |
'
RC — XC3BK B/E/EN/G/GI
U
CD tray assembly
Refer to Fig.5-21a Pawl G (See Fig. 5-23)
Fig. 5-20
Stopper
CD tray
assembly
Fig. 5-21
yr
CD tray
assembly
vo
(No. 1991) 33
