Britax B-Clever - Stroller Manual

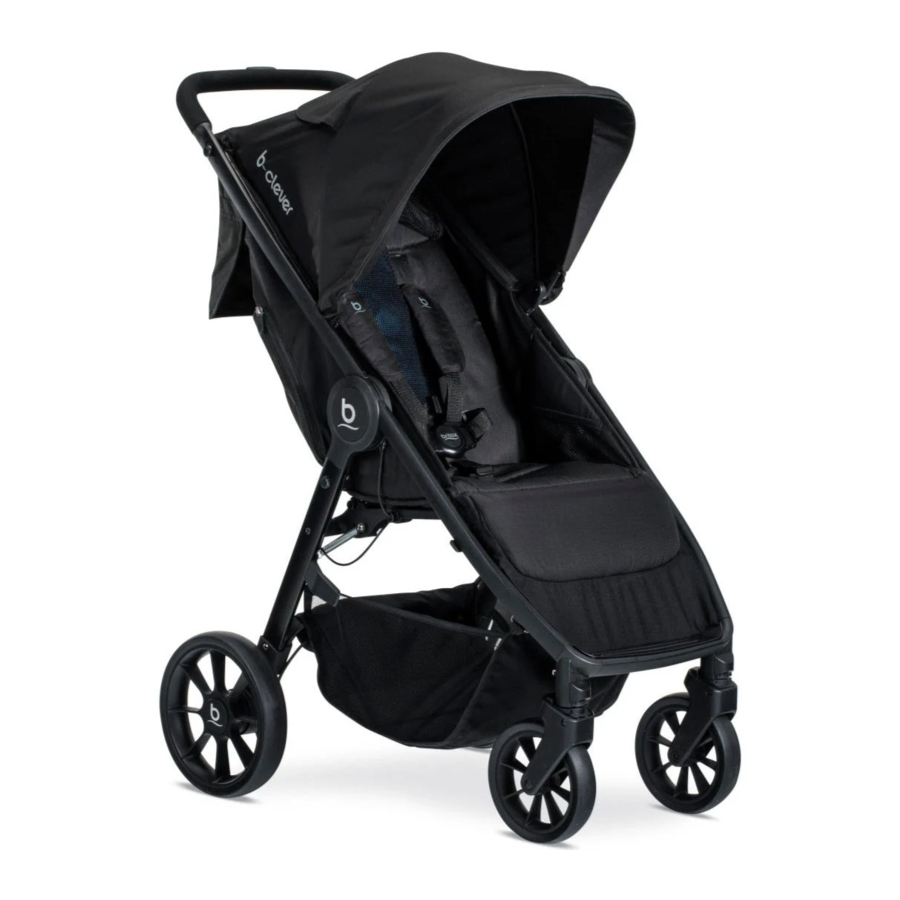

Features

Features
Actual product may vary from images.

In The Box

Actual product may vary from images.

Assembly

Stroller Frame

Push the release on the chassis lock and open the frame.
Lift handle until frame locks into upright position.
NOTE: After stroller is upright, push down on handle to make sure frame is locked in open position

Front Wheels
Installing the Front Wheels

Slide the front wheel assembly onto the mounting post at the front of the stroller.
Pull wheel to ensure that it is secure.

Removing the Front Wheels

Pull the release lever at the back of the mounting post and pull the wheel away from the stroller.

Rear Wheels Installing the Real Wheels

Slide the rear wheel axle into the rear wheel hub mounting bracket until it locks into place.
Pull wheel to ensure that it is secure.

Removing the Rear Wheels

Pull and hold the release lever at the bottom of the rear wheel hub while pulling the rear wheel away from the stroller.

Canopy

Slide the canopy stay brackets into the stroller frame mounts until they lock into place.
Attach the hook and loop fasteners on the hood of the stroller.
Attach the hook and loop fasteners around the outer edge of the canopy and hood to the stroller.

Cupholder (in select models only)

To install, push cup holder bracket onto the holding pin located on the side of the stroller handle. A click will confirm it is secure.
To remove, pull out the cup holder off the holding pin. You will hear a click.

Operation

Before and during use, always make sure the child's hands and feet are away from wheels.
Protect stroller when transporting and shipping to prevent damage to stroller and stroller components. Check closely for damage after transporting and shipping.

Using the Stroller
Folding the Stroller

Always apply brake and remove children before folding the stroller.

Press the frame release button once.
NOTE: Not necessary to continue to hold the button.
Locate the frame release strap under the seat cover in the middle of the seat.
Pull the strap until the stroller collapses and locks. Check to make sure the chassis lock is secure.

Unfolding the Stroller

Push the release on the chassis lock and open the frame.
Lift the handle until frame locks into upright position.
NOTE: After stroller is upright, push down on handle to make sure frame is locked in open position.

Adjusting the Seat

To recline, pull the recline adjuster release lever and slide it away from the seat.
To raise, pull both straps apart.

Using the Parking Brake

Press the brake pedal down to lock the brake.
NOTE: Pressing the brake locks both back wheels.
Lift the brake pedal to release the brake.

Using the Front Wheel Swivel Lock

Press the swivel lock lever down to lock the front wheel.
Lift the swivel lock lever to allow the wheel to swivel.

Using the Harness

Shoulder and waist straps separate for care and maintenance, but should always be used together to secure your child.

Align the tongues on the waist straps with the retainers of the shoulder straps and slide through until they lock into place.
Insert the tongues into the buckle assembly until a click is heard.

Adjusting the Harness

The harness can be adjusted to three different heights. Always ensure proper adjustment at or above your child's shoulders.

Pull the harness strap retainer away from the seat back and turn 90 degrees to feed it through the harness slot.
Push the harness retainer through the appropriate harness slot to the back of the seat. Turn the harness retainer to its original position as shown so it properly retains the harness.
Turn the harness retainer to its original position as shown so it properly retains the harness.

Securing Your Child

Release the harness by depressing the button in the center of the buckle while pulling the two tongues away from the buckle assembly.
Fasten the harness by inserting the tongues on the harness straps into the buckle assembly.
Tighten or loosen the harness straps by sliding the harness adjusters.

Infant Car Seat Mode

All infant car seats MUST be installed rear facing.
Always remove the infant car seat receivers when not in use.
Failure to do so may result in injury.

For infant car seats compatibility refer to us.britax.com/faqs/.
Always secure child in harness when infant car seat is in use with the stroller.

Using the Infant Car Seat Receivers
Attaching the Infant Car Seat Receivers
NOTE: Attach the adapters as shown in the image.

Lock the parking brake.
Align the receiver with the mount on the inside frame of the stroller, then push down until a click is heard. Pull up on the receiver to ensure it is secure.
Repeat for the other side.

Removing the Infant Car Seat Receivers

Press the button on the receiver and slide upward.
Repeat for the other side.

Using a Britax Infant Car Seat
Attaching a Britax Infant Car Seat

Set the parking brake.
Line up the adapter on the infant car seat with the receivers on the stroller.
Press down until locked into place.
Lift up on both sides of the infant car seat to ensure that it is secure.

Removing a Britax Infant Car Seat
Refer to your infant car seat user guide for information on the removal instructions for your specific model.

Care and Maintenance

Before each use, check the stroller and its components to make sure they are in good condition and good working order.

Parking Brake	Periodically check that the parking brake works properly and locks both wheels securely. Clean out any dirt or debris that may prevent the brake from working.
Frame	Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.
Fabric and Harness	Do not machine wash or dry the cover. Hand wash with cold water and mild soap. Air dry to prevent shrinking. Do not iron.
Plastic Parts	Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap. Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.
Maintenance	If the stroller gets wet, wipe with a clean cloth or towel to prevent corrosion. Do not fold the stroller when wet or damp. Always make sure that the stroller is dry before storing.
Storage	To prevent damage to plastic parts, store away from extreme heat. Cover the stroller to prevent dust build-up and exposure to sunlight. Do not stack other items on top of the stroller.

Safety Information

Failure to follow all warnings and instructions could result in SERIOUS INJURY or DEATH.
Read these instructions carefully before using this product To ensure proper use, store this user guide in a convenient place so it can be consulted often

Never leave child unattended.
Do not use stroller with a child taller than 44 inches (111.8 cm).
Do not use stroller with a child who weighs more than 50 lbs (22.6 kg). Exceeding this limit may cause stroller to become unstable.
Avoid serious injury from falling or sliding out. Always use harness to secure child.
Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
Stroller appropriate from birth, however, Britax recommends use only with an infant car seat until child has head and neck control.
Do not overload basket – Maximum weight in basket is 10 lbs (4.5 kg). Overloading the basket may cause the stroller to become unstable and tip over.
Do not overload the hood storage pocket - Maximum weight in storage pockets is 1 lb (0.45 kg) per pocket. Overloading the storage pocket may cause the stroller to become unstable and tip over.
DO NOT overload cup holder. Maximum weight -16 ounces (0.5 kg).
Do not attach parcels, bags, or other items to the handlebar or frame of stroller except those recommended by Britax, as stroller can become unstable and tip over.
Always make certain that the stroller is fully open and locked before use.
Assembly of this stroller must be performed only by an adult.
Only use Britax approved car seats, accessories and replacement parts with this stroller.
Do not allow children to climb on or play with the stroller.
Do not use the stroller on stairs, escalators, moving vehicles, or steep inclines. Stroller can tip over.
Stroller is intended for walking speed only. Do not use while jogging, skating, or any activity other than walking.
Always set the parking brake when stroller is not moving. Never load or unload the stroller without the parking brake set.
Do not park on inclines. The parking brake is intended to park the stroller on flat surfaces only. Parking on inclines may result in tip over or runaway stroller.
Do not exceed the manufacturer's maximum weight limit when using an infant car seat with this product. See infant car seat user guide for maximum occupant weight and other instructions.
All infant car seats MUST be installed rear facing.
Do not modify the stroller or any labels. Doing so voids the warranty and could lead to a dangerous condition.
Failure to regularly inspect this product and its components to make sure they are in good condition and good working order can result in injury. Discontinue use of stroller if damaged or any parts are missing.
