Diono Solana - Booster Seat Manual

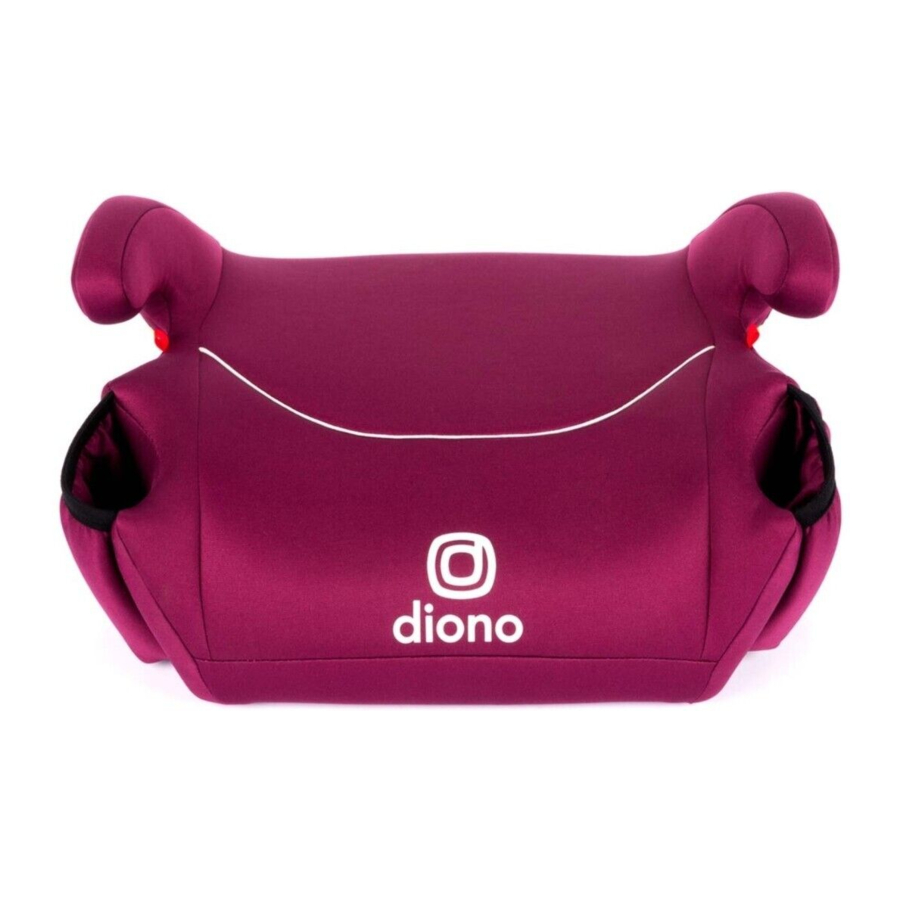

PARTS

LOWER BELT GUIDE
INSTRUCTION MANUAL STORAGE POCKET
LOCATED UNDER SEAT COVER.
SHOULDER BELT GUIDE STRAP
LOCATED UNDER SEAT COVER.
CUP HOLDER

REGISTER

Please take a moment to fill out the prepaid registration card attached to the seat and mail it in today or register online at:
Diono U.S.: diono.com/product-registration/
Diono Canada: diono.ca/product-registration/

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint's model number and manufacturing date to:

Diono U.S.
PO Box 77129 | Seattle, WA 98177
or call 1-855-463-4666
or register online at:
diono.com/product-registration/

Diono Canada ULC
2160 S. Service Rd. W.
Oakville, ON L6L 9Z9 Canada
or call 1-866-954-9786 or register online at:
diono.ca/product-registration/

For U.S. recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov. For future reference, in the case of a change of address. Please take a moment to write down the following information:
Model Name
Model Number
Serial Number
Manufacture Date
This information can be found either on the registration card or on the manufacturing label located on the seat.

SAFE USE GUIDE

Carefully read and understand all instructions and warnings in this manual, and those labeled on your child restraint. Failure to do so can result in SERIOUS INJURY or DEATH of your child.

SAFE USE REQUIREMENTS:
This child restraint is designed for use ONLY with children who weigh 40–120 lb (18–54 kg) AND whose height is 38–63 in (97–160 cm).

Use ONLY the vehicle's lap and shoulder belt system when restraining the child in this booster seat. DO NOT use a lap belt only!

Use ONLY with children whose ears are below the top of the fully raised vehicle headrest.

WARNINGS

DO NOT PLACE A CHILD RESTRAINT IN THE FRONT SEAT OF A VEHICLE WITH A PASSENGER AIR BAG. DEATH OR SERIOUS INJURY MAY OCCUR.
If an air bag inflates, it can hit the child or child restraint with enough force to cause serious injury or death to your child.
The back seat is the safest place for children 12 and under. Refer to your vehicle owner's manual for information on your child restraint installation.

DEATH or SERIOUS INJURY can occur

Read all instructions before using this child restraint. You can store these instructions in the pocket provided under the seat cover of your booster seat.
Before installing this child restraint in a vehicle, be sure to also check the vehicle owner's manual for information on proper installation.
DO NOT use this child restraint in any configuration not shown in the instructions.
Use ONLY with children who weigh 40–120 lb (18–54 kg) AND whose height is 38–63 in (97–160 cm).
Use ONLY the vehicle's lap and shoulder belt system when restraining the child in this booster seat. NEVER use with ONLY a vehicle lap belt to restrain a child. This could result in serious injury or death.
ALWAYS make sure the vehicle seat belt can properly retract before each use.
NEVER leave your child unattended.
NEVER install in rear facing, side facing or on the back of a folded down vehicle seat.
ALWAYS install this child restraint in the rear vehicle seat.
DO NOT use this child restraint unless there is vehicle headrest for that seating position.
DO NOT use this child restraint with any other backrest or cushions.
ALWAYS secure the child restraint using the vehicle belt even when it is unoccupied. It could injure other occupants in a sudden
stop or collision. DO NOT use any accessories, inserts or products not included with this child restraint, unless approved by Diono. Items not tested with this child restraint could injure your child.
DO NOT modify your child restraint.
NEVER provide this child restraint to another person without also providing them with the instruction manual.

EXPIRATION

DO NOT use the child restraint if any part is damaged or broken, expired (over 8 years from date of purchase), missing instructions, or missing parts. Call to find out if the parts can be replaced.

Diono U.S.: 1-855-463-4666
Diono Canada: 1-866-954-9786

SAFE PRACTICES

DO NOT leave loose objects, such as books, bags, etc., in the back of the vehicle. In the event of a sharp turn, sudden stop, or crash, loose objects can be thrown around and possibly cause serious injury to vehicle occupants.
DO NOT use with hot liquids as this could burn a child.
ALWAYS check all surfaces of restraint before securing your child. In warm weather, child restraints can become very hot. Do not allow children to play with vehicle seat belts.

VEHICLE SEATING LOCATIONS

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.
The safest seating position is one that works best for your specific child restraint, family and vehicle model.
Before installing this child restraint you must determine the method of installation and the best vehicle seating position for that method.
VEHICLE SEATING LOCATIONS

VEHICLE SEAT BELT SYSTEMS

Some vehicle seat belt systems cannot be used with this booster seat.

ALWAYS install this booster seat in vehicle seats with 3-point (Lap and Shoulder) belts.
DO NOT install this booster seat in vehicle seats with a Lap Belt Only.
DO NOT install this booster seat in vehicle seats with Motorized (Automatic) Vehicle Lap and Shoulder Belts.
DO NOT install this booster seat in vehicle seats with Door Mounted Vehicle Belts.
DO NOT install this booster seat in vehicle seats with Inflatable Vehicle Belts.

PRODUCT USE AFTER A COLLISION

UNITED STATES
The U.S. National Highway Traffic Safety Administration (NHTSA) recommends that car seats be replaced following a MODERATE or SEVERE collision in order to ensure a continued high level of collision protection for child passengers. In the U.S., car seats do not automatically need to be replaced following a MINOR collision.

NHTSA defines a MINOR crash as one in which ALL of the following apply:

The vehicle was able to be driven away from the crash site.
The vehicle door nearest the car seat was not damaged.
None of the passengers in the vehicle sustained any injuries in the crash.
If the vehicle has air bags, the air bags did not deploy during the crash; and
There is no visible damage to the car seat.

NEVER use a car seat that has been involved in a MODERATE or SEVERE collision.

CANADA

DO NOT USE THIS CHILD RESTRAINT SYSTEM IF IT HAS BEEN IN A VEHICLE ACCIDENT.
Transport Canada designates that you MUST replace this child restraint if it has been involved in a collision.
You must dispose of your child seat or booset seat if the child seat was in a vehicle during a crash. Even if the child seat was empty or was not directly hit, it may be damaged.
You must dispose of your child seat or booset seat if the shell is cracked or the webbing of the child car seat is frayed, torn or discolored.

SECURING THE CHILD

Use ONLY vehicle's the lap and shoulder belt system when restraining the child in this booster seat. DO NOT use lap belt only.

Only use with children whose ears are below the top of the vehicle seat or headrest.

Place booster seat on vehicle seat so it is resting firmly on vehicle seat bottom and touching the vehicle seat back.
Properly position child into installed seat, sitting upright and all the way back in the booster seat.
Fasten vehicle seat belt across child. The lap portion of the seat belt should rest within both lower belt guides. Make sure the vehicle seat belt is not twisted and lays flat across child's hips, torso and shoulder.
Tighten the seat belt by pulling the diagonal shoulder belt portion in the direction of the arrows.

DO NOT position the vehicle shoulder belt over the armrest. It MUST pass under the lower belt guide.

ALWAYS make sure the vehicle seat belt can properly retract before each use.
NEVER position the shoulder belt loosely or under the child's arm or behind their back.

The vehicle shoulder belt should lay over the shoulder and should NOT be touching the child's neck.

When using booster seat in center seating position, make sure it is stable and does not rock from side-to-side, otherwise choose a different seating position.

PROPER BUCKLE POSITION

After booster seat is installed and seat belt is fastened around child, it is important to confirm correct seat belt buckle position to ensure secure installation.

CORRECT SEAT BUCKLE POSITION
Buckle is on the outside of lower belt guide.

INCORRECT SEAT BUCKLE POSITION
If buckle is being pulled across the lower belt guide and into the seat, choose another seating position within the vehicle.

SHOULDER BELT GUIDE STRAP

If the diagonal seat belt portion does not correctly fit the child, then the seat must be used with the shoulder belt guide strap attached and properly adjusted to fit the child.

Remove shoulder belt guide strap from storage area underneath seat.
Position child correctly in seat, making sure lap and shoulder belts are positioned properly across child.
Attach the RED shoulder belt guide strap onto the diagonal shoulder belt.
Adjust strap to correct length, so that the RED guide is just above shoulder.

CARE & MAINTENANCE

DO NOT use solvents, harsh detergents or any other chemical or cleaning agent. DO NOT lubricate any part of the seat.

CLEANING FABRICS

Seat coverbuckle pads

Machine wash in cold water on gentle cycle

Dry flat and in the shade only

DO NOT bleach, iron or dry clean

CLEANING PLASTICS

Seat shell and components

Spot clean only with warm water. Use mild detergent

Towel dry completely before re-use

DO NOT bleach

WARRANTY

CANADA
To make a claim under this warranty, you can reach us by phone at 866-954-9786 Monday-Friday, or drop us an email at dionoca@diono.com
An original receipt from an authorized retailer or diono.com is required to validate your warranty, and shipping charges will be the responsibility of the original consumer purchaser.

14810 Puyallup Street E | Suite 200 Sumner WA 98390
United States | diono.com
United States: 1-855-463-4666 | Canada: 1-866-954-9786
