Scanstrut SPD-7S-W Installation Instructions

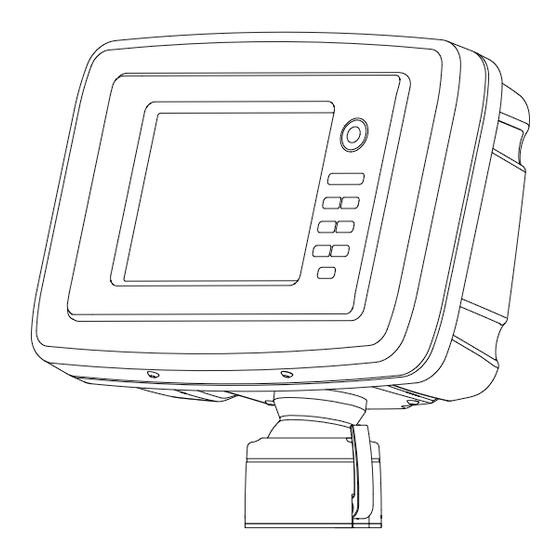

Deck Pod
C
Max cut-out
F
B
area
45°
200
132
E
A
D
G
ø J
Deck Base Height
(SPD-7/7S dimensions
in square brackets)
95mm (3.7")
[67.5mm (1.73")]
Email: sales@scanstrut.com
Maximum
cut-out area
A B
mm / inches mm / inches
SPD-7S-W
218/8.5 140.5/5.5
SPD-7-W
218/8.5 140.5/5.5
SPD-8-W
267/10.5 167/6.6
SPD-9-W
314/12.3 185/7.3
SPD-12-W
332.5/13 227/8.9
SPD-13-W
228/9.0
351/13.8
SPD-15-W
329/13
404/15.9
SPD-4Xi-W
235/ 9.25 140/5.5
G H
mm / inches mm / inches
SPD-7S-W 109/4.3 78/3.1
SPD-7-W 111/4.3 108/4.25
128.5/5.0 134/5.3
SPD-8-W
150/5.9 111/4.4
SPD-9-W
170/6.7 109/4.3
SPD-12-W
SPD-13-W 182/6.5 104/4.1
SPD-15-W 202/7.9 128/5.0
SPD-4Xi-W
271/10.7 80/3.1
ø50mm (2.0")
[ø44 (1.73")]
Base Footprint
(SPD-7/7S dimensions in square
brackets)
Email: usasales@scanstrut.com
Maximum Overall
usable face dimensions
C D E F
mm / inches mm / inches mm / inches mm / inches
240/9.4 159/6.25 275/10.8 196/7.7
240/9.4 159/6.25 275/10.8 196/7.7
289/11.4 190/7.5 324/12.75 228/8.97
336/13.2 207/8.14 374/14.7 243/9.56
354.5/14 244.5/9.6 392/15.5 286/11.3
373/14.7 246/9.7 409/16.1 287/11.3
424/16.7 349/13.7 467/18.4 387/15.3
255/10.0 160/6.3 565/22.25 192/7.5
I J M
K
mm / inches mm / inches mm / inches
mm / inches
253/10.0
87/3.43 295/11.6
101/4.0
253/10.0
136/5.35 295/11.6 144/5.7
310/12.2
152.8/6.0 346/13.6 167/6.6
367/14.4
145/5.7 407/17.3 167/6.6
145/5.7
369/14.5
167/6.6
428/16.0
145/5.7 404/15.9
448/19.1 167/6.6
468/18.4 183/7.2
154/6.0 480/18.9
159/6.25 577/22.7 271.5/10.7 205/8.0
ø100mm (3.9")
[(ø81mm (3.2")]
ø85mm (3.3") PCD
[ø62.5mm (2.45")]
4x ø5mm
®
