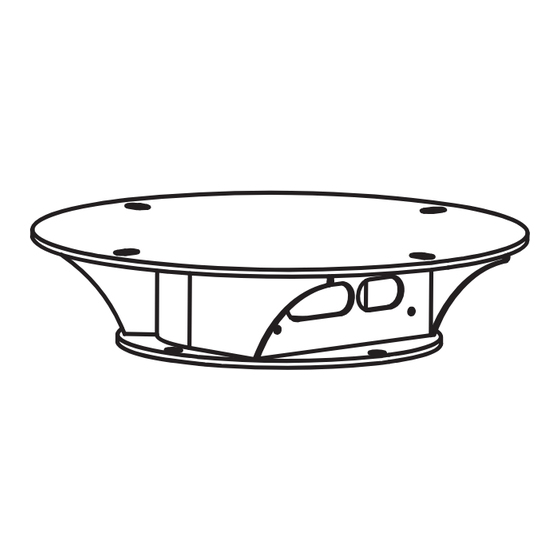

SC-80
Parts List
x1
SC80
10180
x4
M5x25mm Socket Cap
620525
4 xM10 Fasteners
(Not Supplied)
4 xM10 Fasteners
(Not Supplied)
Foam Seal
x1
KDL Cable Entry kit
Includes:
101823 grommets
19083
101824 grommets
x4
Shake proof washer
Parts Required
64006
02-01-21 Issue 3
x1
19049
x5
x4
x8
M10 x 25mm+
Set cable length with slack so the hatch can be
19049
19083

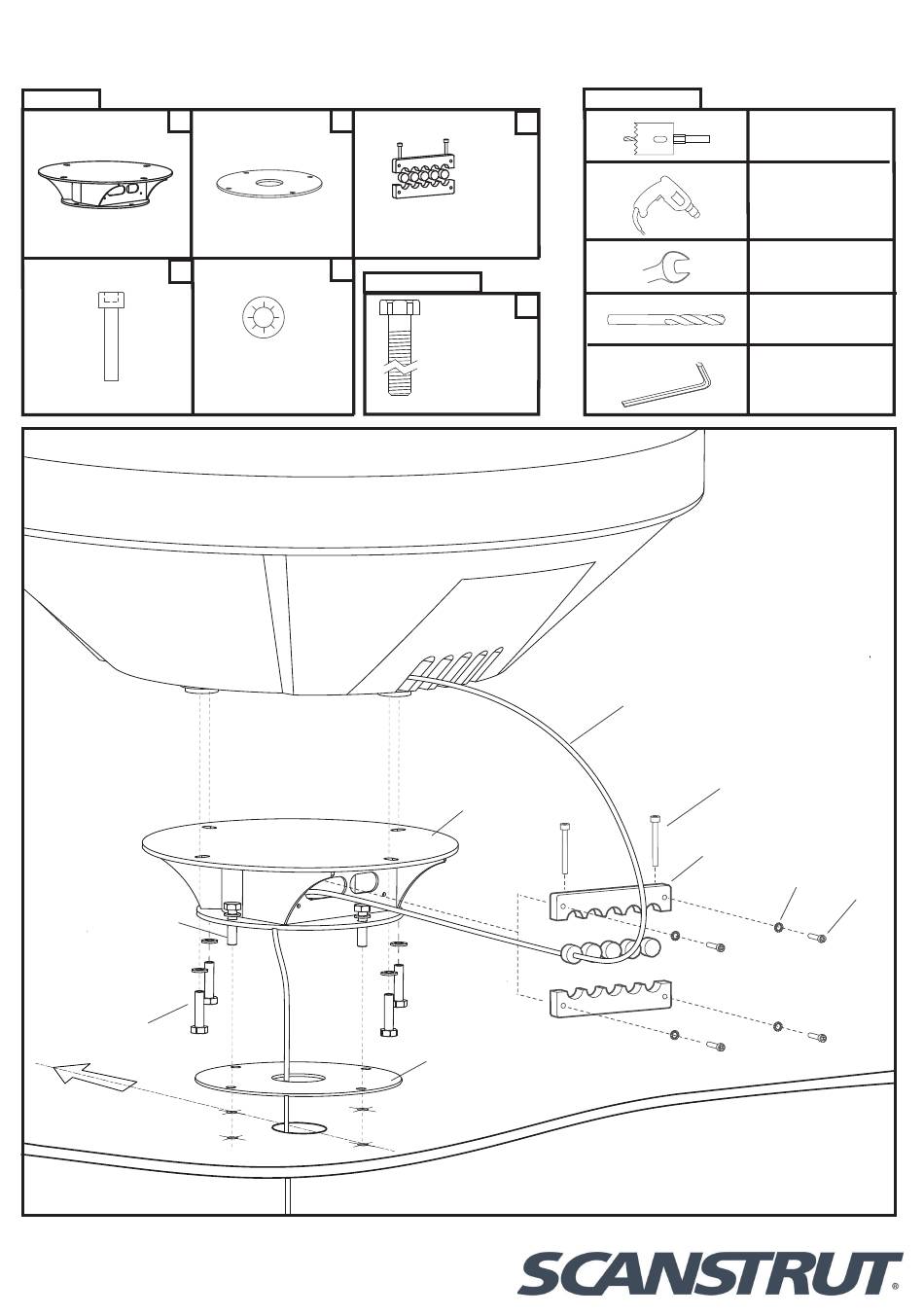

Installation Instructions
Tools Required
Hole Saw
ø50-60mm (2")
Power drill
17mm (11/16")
Spanner
ø11mm (7/16")
Drill Bit
4mm (5/32")
Allen Key
accessed for maintenance
Ensure cable length are set correctly
before fully tightening KDL Gland
19049
64006
620525
