Summary of Contents for Luxibel B PAR105RGBW V2

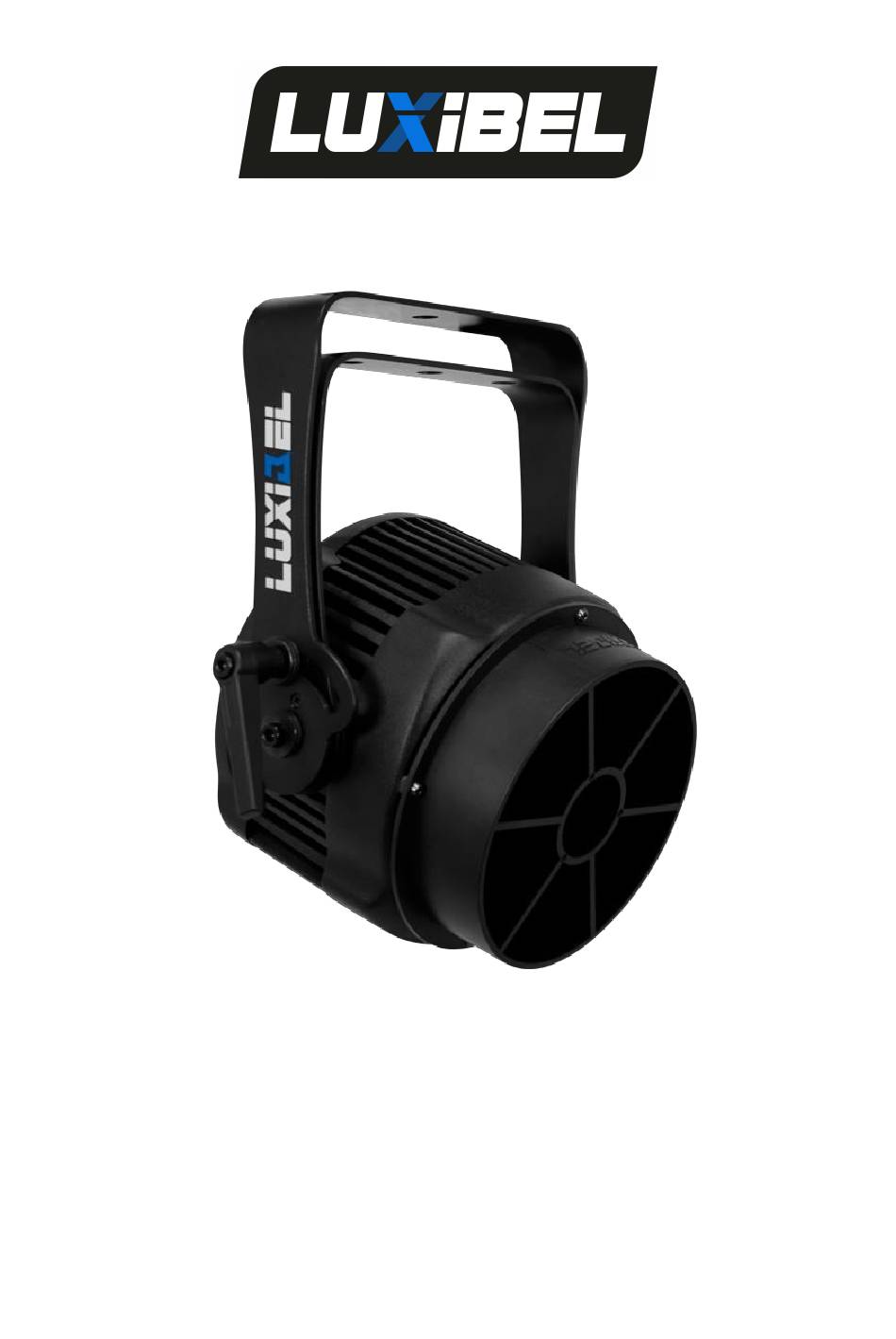

- Page 1 B PAR105RGBW V2 User manual...
-
Page 2: Table Of Contents
User Manual Table of contents Product introduction Safety Instructions Overhead Rigging Electrical Operation Maintenance and Cleaning Control Menu DMX Mode Technical Specifications... -
Page 3: Product Introduction
Please strictly follow it. Before unpacking the fixture, please make sure that the packaging is in good condition and that following items will be found in the box: • B PAR105RGBW V2 fixture • Power cable with bare ends • Tophat •... - Page 4 Description of the B PAR105RGBW V2 1. LED-lensset 2. Menu Button 3. Display 4. Up Button 5. Down Button 6. Tilt Lock 7. Enter Button 8. Yoke 9. DMX Output 5 pin Safety attachment point Mains output Air vent Mains Input...
-
Page 5: Safety Instructions
Safety Instructions WARNING: Do not look into the light source when the device is powered CAUTION: The housing may be hot during and after operation. • To reduce the risk of electric shock, do not open the device. • Install this device in a location with adequate ventilation, at least 20 inch (50cm) from adjacent surfaces. - Page 6 Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer. The products referred to in this manual conform to the European Community Directives and are therefore marked with CE logo.
-
Page 7: Overhead Rigging
Overhead Rigging The installation of the device has to be done in such a way that it can hold 10 times the weight for 1 hour without any deformation. The operator has to make sure that all safety-related and machine- technical installations are approved by an expert, before taking the unit in operation for the first time. -
Page 8: Electrical Operation
Electrical Operation IMPORTANT: The electrical installation should be carried by a qualified person only. Please note the wire color code while connecting the 2x mains cable: G: green/yellow color = Ground earth connection N: blue color = Neutral ... - Page 9 The cleaning of the heat sink and all external optical lenses must be carried out periodically to optimize the light output. The frequency of cleaning depends on the environment in which the fixture operates. A detailed electric check by a certified electrician every three months, to make sure that the circuit contacts are in good condition, prevents the circuit from overheating due to poor contact.
-
Page 10: Control Menu
Control Menu 1) Menu tree Default settings shadowed. DMX Address 1-512 Channel Mode 4/6/8/9/14 CH DMX Curve 1/2/3/4 DMX State DMX Hold/black out 0-255 Green 0-255 Blue 0-255 Manual Mode White 0-255 Color color 1-70 Slave Mode Slave Chase Mode * 1-11 Edit Chase * PR 1-11... - Page 11 2) Master/Slave Function When fixtures are connected with the signal power, there is an automatic function of master/slave build in. When there is no DMX signal, the first fixture will act as master, and all other fixtures connected in the signal line will follow as slave. When a DMX signal is put on, it will disable the master/slave function automatically.
-
Page 12: Dmx Mode
DMX Mode DMX addressing The device is controlled by the universal DMX 512 protocol, the DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has three channel modes: 4/6/8. -
Page 13: Technical Specifications
Technical Specifications Dimensions drawing... - Page 14 Physical Dimensions (WxHxD): 219 x 225 x 133 mm Packaging dimensions (WxHxD): 220 x 220 x 235 mm 4 pcs packing dimensions (WxHxD): 465 x 465 x 480 mm Net weight: 3.3 kg Gross weight: 4.3 kg 4 pcs packing gross weight: 17.2 kg Mounting options Hanging: 1 omega bracket with 2x ¼...
- Page 15 Refresh rate: 1.200 Hz Accessories 1x Powercable - TRUE1 to bare ends 1x Tophat 1x Omega Bracket Contact Luxibel Bedrijvenpark De Veert 13/004 2830 Willebroek Belgium +32 3 860 76 50 info@luxibel.com www.luxibel.com 2022...
