Lorell LLR42176 Manual

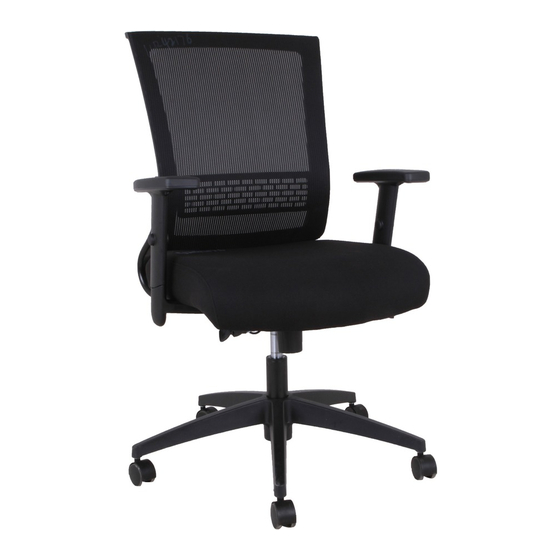

Mid-back mesh chair

Download this manual

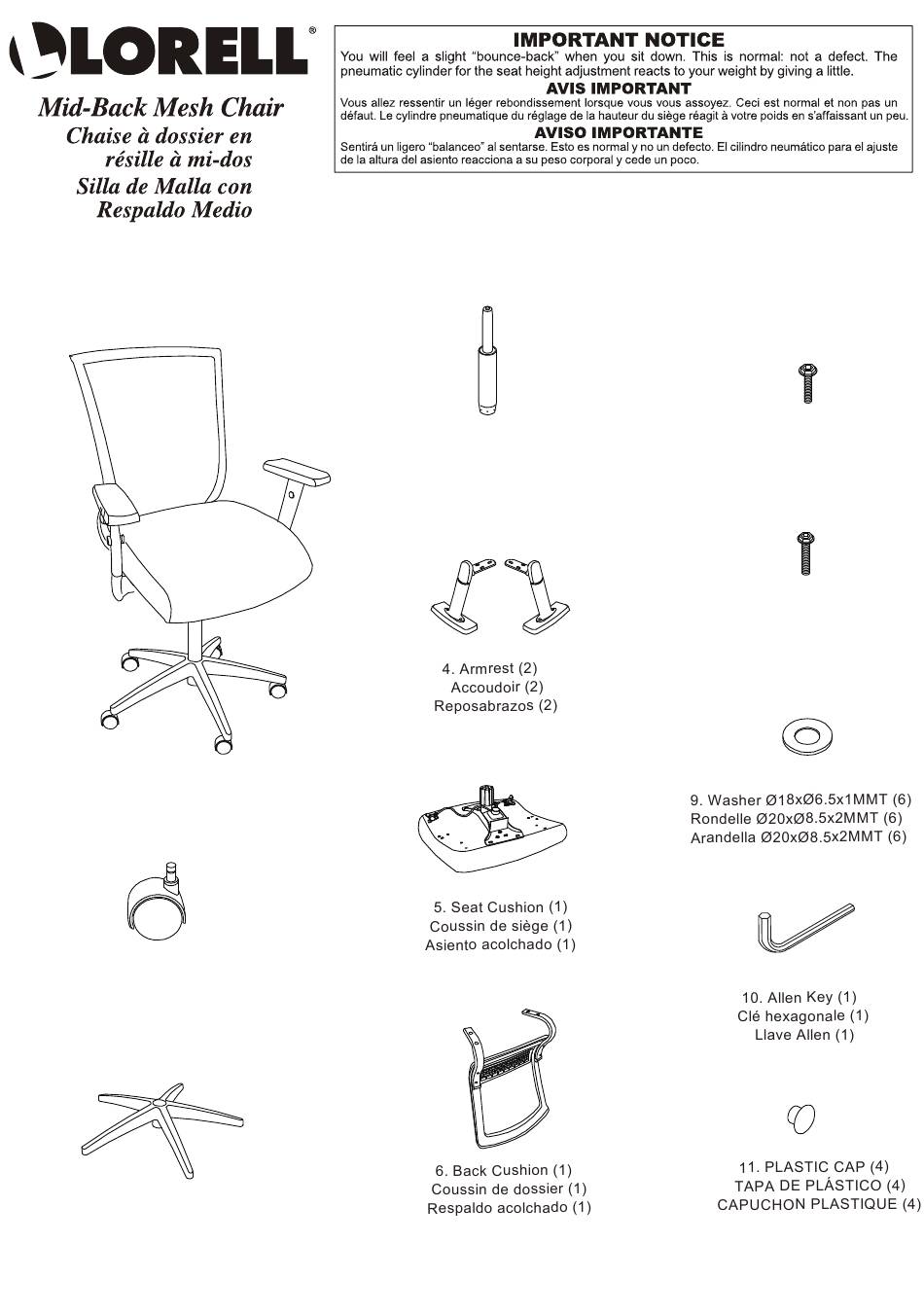

LLR42176

7. Screws 1/4"x1-3/4" (6)

3. Gas Lift (1)

Vis 1/4"x1-3/4" (6)

Vérin pneumatique (1)

Tornillos 1/4"x1-3/4" (6)

Resorte de gas (1)

8. Screws 5/16"x2" (4)

Vis 5/16"x2" (4)

Tornillos 5/16"x2" (4)

1. Castors (5)

Roulettes (5)

Ruedas (5)

2. 5-Star Base (1)

Base en 5 étoiles (1)

Base en forma de estrella con 5 radios (1)

Need help?

Do you have a question about the LLR42176 and is the answer not in the manual?

Page 1 LLR42176 7. Screws 1/4"x1-3/4" (6) 3. Gas Lift (1) Vis 1/4"x1-3/4" (6) Vérin pneumatique (1) Tornillos 1/4"x1-3/4" (6) Resorte de gas (1) 8. Screws 5/16"x2" (4) Vis 5/16"x2" (4) Tornillos 5/16"x2" (4) 1. Castors (5) Roulettes (5) Ruedas (5) 2. 5-Star Base (1) Base en 5 étoiles (1)
Page 2 LLR42176 Please DO NOT tighten all screws before assembled. Visser complètement seulement une fois assemblé. Por favor NO apriete los tornillos antes de completar el armado.
Page 3 LLR42176 1. To Adjust Seat Height Ajustement de la hauteur du siège/Para ajustar la altura de la silla While seated, lean forward and reach under the right side of the chair to find the handle. Lift the handle and raise your body up slightly to allow the chair to rise to the desired height.
Page 4 LLR42176 4. 360° Swivel Pivotement sur 360 degrés/Giro de 360° 360° seat swivel Siège pivotant sur 360 degrés. Giro de 360° 5. Arm Height Adjustment/Réglage de la hauteur du bras/Ajuste de la altura del brazo To adjust arm height, push the button on the outside of each arm. Release the button to set the height.
