Related Manuals for Cookology CFF204TMWH
Summary of Contents for Cookology CFF204TMWH

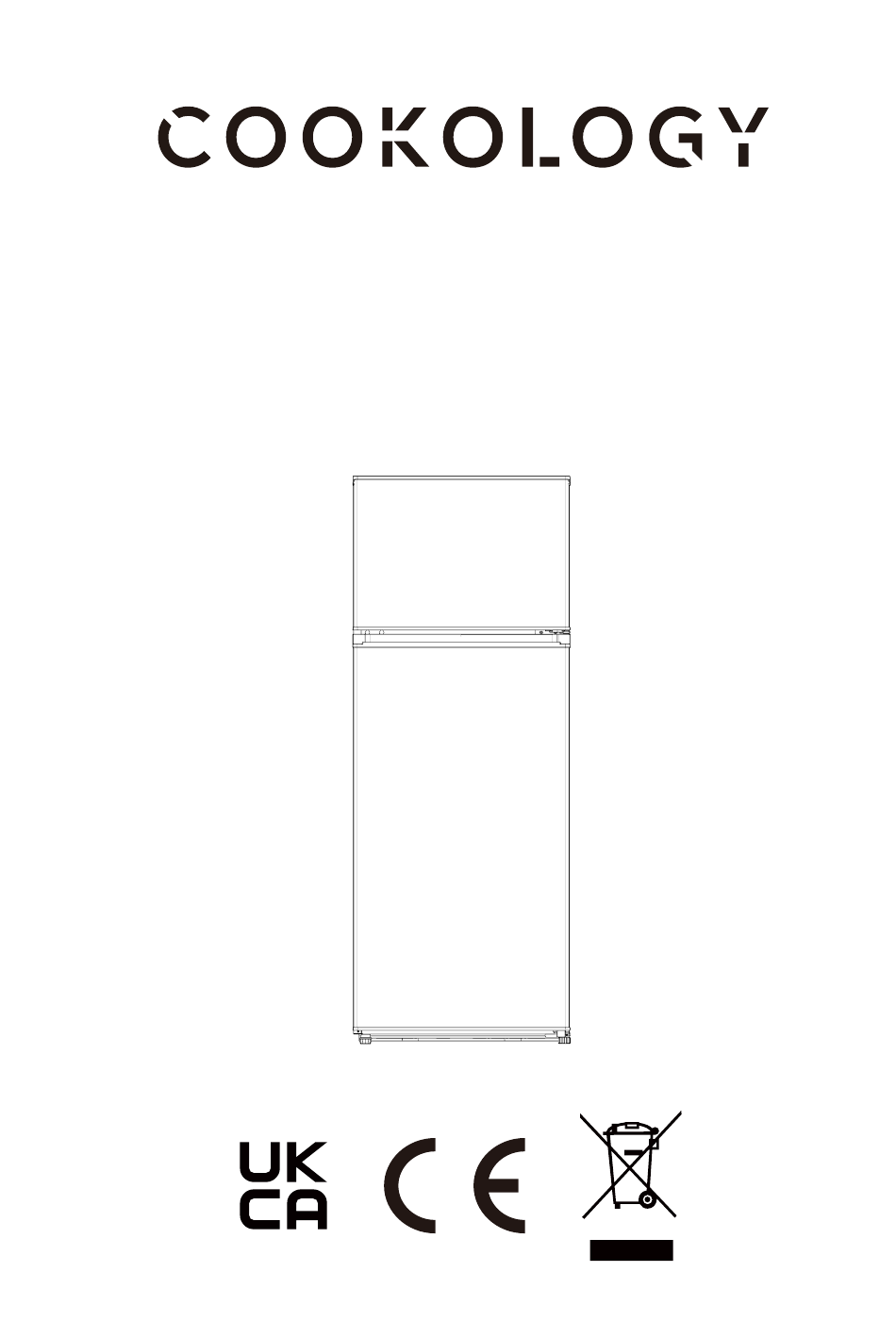

- Page 1 Fridge Freezer USER’S MANUAL CFF204TMWH CFF204TMBK Please register the warranty for this product on www.Cookology.com...
-
Page 2: Table Of Contents
Contents SAFETY WARNINGS ......................1-2 INSTALLTION ........................3 Location ........................3 Reversing the Door Swing ..................3 Door Handle Install Illumination (optional) ............... 7 Door Space Requirements ..................8 Levelling the Unit ....................... 8 Cleaning Before Use ....................8 Before Using Your Unit ....................8 Interior Accessories .................... -
Page 3: Safety Warnings
1. SAFETY WARNINGS Warning : risk of fire / flammable materials THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... - Page 4 flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualifica�on other than be disposed by combus�on, so as to prevent damage to the environment or any other harm. FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabili�es or lack of experience and knowledge if they have been given supervision or instruc�on concerning use of the appliance in a safe way...
-
Page 5: Installtion
2. INSTALLTION 2.1 Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 2) Remove the screws fixed the top-hinge with cross-slot screwdriver. 3) Replace the top-hinge and the top-door limit block and the door bearing bush to the other side. Remove the nut with sleeve.Take off the washer then remove the axes to the other side and fixed.
- Page 7 Note：the refrigerator-freezer incline angle less 45°. 5) Replace the bottom door bearing bush and the limit block. 6) Replace the bottom hinge to the other side then fix it with screws 7) Replace the mid-hinge.
- Page 8 8) Set the bottom door right position,fix the mid-hinge. 9) Replace the top-hinge. 10) Set the top door right position,fix the top-hinge and the cover. 11) Install the four screw caps and two catches to corresponding position. ·Ensure the Appliance is unplugged and empty. ·Adjust the two leveling feet to their highest position.
-
Page 9: Door Handle Install Illumination (Optional)
*The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor 2.3 Door Handle Install Illumination (optional) Note: Figures in the user manual are only for reference. The actual product may differ slightly. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. -
Page 10: Door Space Requirements
Door Space Requirements The unit's door must be able to open fully as shown. W×D≥902×1052mm Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. -
Page 11: Interior Accessories
◆ Before Plugging in You must check that you have a socket which is compatible with the plug supplied with the unit. ◆ Before Turning On! Do not turn on until two hours after moving the unit. 2.8 Interior Accessories Various glass or plastic storage shelves are included with your appliance - different models have different combinations. -
Page 12: Operation
4. OPERATION 4.1 Switching On Your Unit Setting“Off” ：UnitOff Setting“Min” ：Less Cool Temperature Setting“Med” or “MID” ：Normal Operation(adequate for most situations) Setting“Max” ：Coolest Temperature ◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest setting(position“Max”).This may cause the compressor running continuously in order to maintain a low temperature in the cabinet. -
Page 13: Cleaning The Interior And The Exterior Of The Unit
sharp objects. 5.2 Cleaning the Interior and the Exterior of the Unit Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 14: Switching Of For Long Periods Of Time
6.4 Switching Of for Long Periods of Time When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells. 7. -
Page 15: Disposal
3)The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets; 4)The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper. - Page 16 Please register the warranty for this product on www.Cookology.com THE WRIGHT BUY LTD UNIT 2 PIPERELL WAY,SUFFOLKCB9 80W COOKOLOGY LIMITED GROUND FLOOR,71 LOWER BAGGOT STREET, DUBLIN 2, D02P93, IRELAND...
