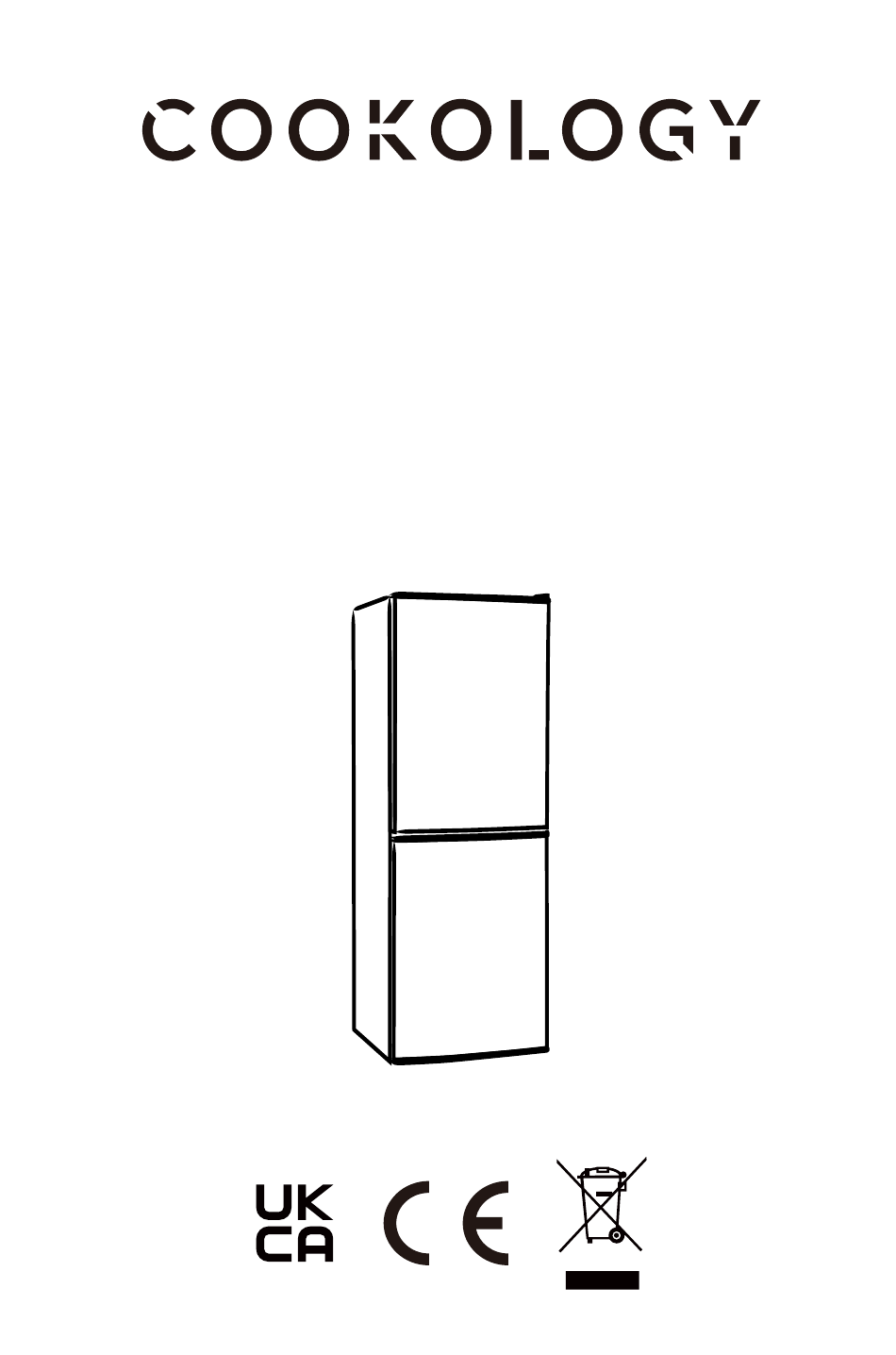

- Page 1 Refrigerator Freezer USER’S MANUAL CFF174WH CFF174BK Please register the warranty for this product on www.Cookology.com...
-
Page 3: Table Of Contents
THANK YOU LETTER Thank you for choosing Cookology! Before using your new Cookology product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Intended use Before switching on the appliance for the first time read the following safety hints! This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... - Page 5 WARNING Risk of fire/Flammable material This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care. • Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
- Page 6 WARNING Electrical safety Incorrect electrical installation or excessive mains voltage can lead to electric shocks! • Only connect your fridge-freezer to a properly installed earthed socket if the mains voltage of the socket corresponds to the specification on the rating label*.
- Page 7 CAUTION Risk of injury and damage! • Never put frozen food in your mouth immediately after taking it out of the freezer. • Avoid prolonged skin contact with frozen food, ice and the pipes in the freezer compartment. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Page 8 CAUTION To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 9 Before The First Use The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier. Remove transport cover The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent.
- Page 10 Notes For Cleaning CAUTION Disconnect the appliance from the power supply before cleaning. • Dust behind the product and on the floor must be cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
- Page 11 DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
-
Page 12: Product Overview
PRODUCT OVERVIEW Names of components ８ ９ LED Lamp Small door tray Temperature control panel Big door tray Shelf Upper freezer drawer Fruits and vegetables box Lower freezer drawer ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... -
Page 13: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table. • The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range. - Page 14 Space requirement diagram (when the door is open and when the door is closed) 150° Width Depth Overall Width Depth doors open doors open Height 1500 Notice: All dimensions in mm...
- Page 15 Doors reversal Parts included with the hinge kit: Left stopper (2) Spacer Parts already mounted on the refrigerator (as shipped): Right stopper Right stopper screw Hole cap (2) Top hinge cover Top hinge Middle hinge Middle hinge screw Top hinge screw Bottom hinge adjustable foot Steps:...
- Page 16 4. Remove the freezer door, remove the bottom hinge , and adjustable foot on another side. 5. Exchange the fixed position of the adjustable foot and the bottom hinge , then fix them again. bottom hinge adjustable foot 6. Remove the screws and stoppers which are fixed on the bottom cover of the refrigerating door and the freezer door.
- Page 17 hole cap top hing Adjustable foot To avoid vibration, the applicance must placed horizontal. If required, adjust the adjustable foot to keep the applicance horizontal. The front should be slightly higher than the rear to avoid the door open. Adjustable foot can be turned easily by raise the applicance slightly. Turn the adjustable foot counterclockwise to raise the unit, clockwise lower it.
- Page 18 Tips for energy saving • Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance.
-
Page 19: Operation Instructions
OPERATION INSTRUCTIONS Control panal Description Turn the temperature control knob to 3, the internal temperature of the refrigerator becomes lower. Turn the temperature control knob to 1, the internal temperature of the refrigerator becomes higher. The letter on the knob only represents the temperature level, but does not mean the specific temperature, the “0”... - Page 20 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
- Page 21 Target Compartments Order storage Appropriate food TYPE temp. [°C] Eggs, cooked food, packaged food, fruits and +2 ≤ +8 Fridge vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products ≤...
-
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • Refrigerator shall be manually defrosted. • Disconnect the plug from the wall socket, open the door and remove all the food to a cool place. It is recommended to remove the frost by a plastic scraper, or let •... - Page 23 Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. Long-time nonuse: The appliance shall be unplugged and then cleaned;...
-
Page 24: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 25 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 26: Appendix
For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name . The model name can be found on the rating label of the appliance. Please register the warranty for this product on www.Cookology.com...
