Summary of Contents for Cookology UCIF93WH

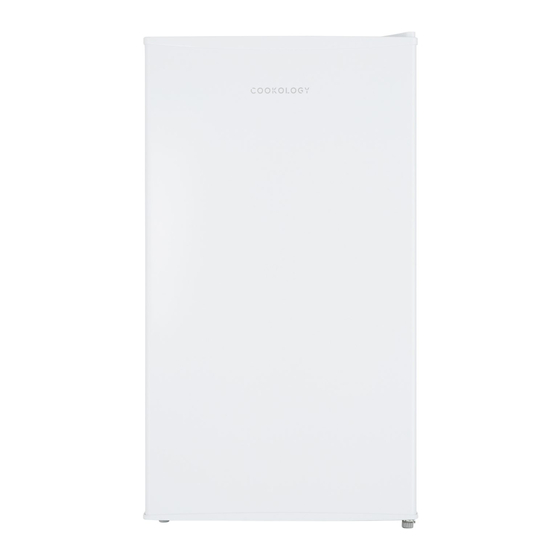

- Page 1 Table top fridge USER’S MANUAL UCIF93WH UCIF93BK UCIF93SL IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS. TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT...
-
Page 3: Safety Warnings
1 Safety war nings 1.1 War ning Warning risk of fire / flammable materials THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... - Page 5 Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...
- Page 6 1 4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- Page 7 Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
-
Page 8: Proper Use Of Refrigerators
2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. - Page 9 2 2 Levelling feet Schematic diagram of the levelling feet The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator;...
- Page 10 Door Right-Left Change Putty knife Cross screwdriver thin-blade screwdriver 5/16 Masking tape socket and ratchet 1 Power off the refrigerator, and remove all objects from the door trays. ix the door with tape 3 dismantle the upper hinge cover, screws and upper hinge, and remove the plastic upper hinge cover screw hole caps from the other side upper hinge...
- Page 11 (optional the Light Changing Disconnecting the power supply before carrying out the bulb replacement Hold and remove the light bulb cover. Dismantle the old bulb by unscrewing it counterclockwise.replace by a new bulb (Max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly. Reassemble the light cover and re-connect your Fridge to the power supply.
- Page 12 3 1 Key components Little door Drain tray Lamp Temperature- control knob Door tray Fruits and vegetables Little door Drain tray Temperature- control knob Door tray Fruits and vegetables The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor Refrigerating chamber The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and...
-
Page 15: Troubleshooting
5.Trouble shooting 5 1 You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped...
