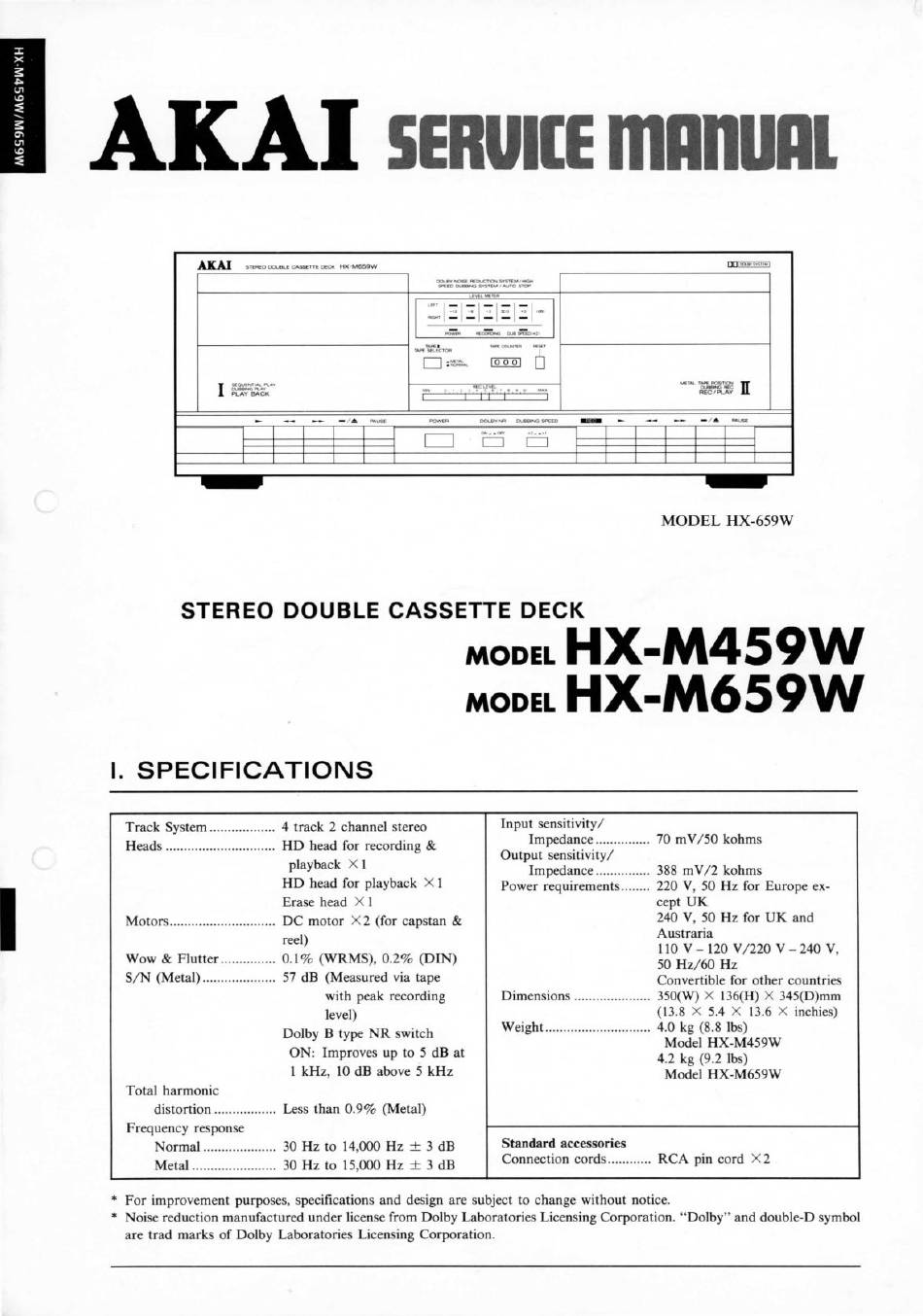

Akai HX-M459W Service Manual

AKAI
AKAI
: H X -M 659W
« C LEVEL
I
POWER DOLBY NR
O

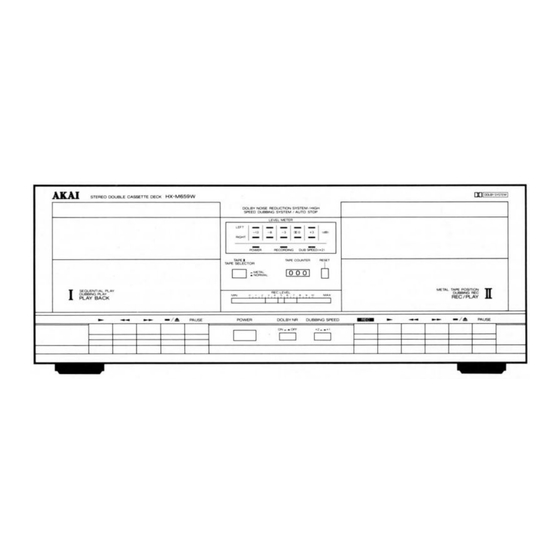

M O D E L HX-659W
STEREO DOUBLÉ CASSETTE DECK
MODEL
HX-M459W
MODEL
HX-M659W
\ S P E C I F I C A T I O N S
I
O
T r a c k System 4 track 2 channel stereo
Heads H D head for recording &
playback X 1
H D head for playback X 1
Erase head X 1
Motors D C motor X 2 (for capstan &
reel)
W o w & Flutter 0 . 1 % ( W R M S ) , 0.2% ( D I N )
S / N (Metal) 57 d B (Measured via tape
with peak recording
level)
Dolby B type N R switch
O N ; Improves up to 5 d B at
1 k H z , 10 d B above 5 k H z
Total harmonie
distortion Less than 0.9% (Metal)
Frequency response
N o r m a l 30 H z to 14,000 H z ± 3 d B
Metal 30 H z to 15,000 H z ± 3 d B
Input sensitivity/
Impedance 70 m V / 5 0 kohms
Output sensitivity/
Impedance 388 m V / 2 kohms
Power requirements 220 V , 50 H z for Europe ex-
cept U K
240 V , 50 H z for U K and
Austraria
110 V - 120 V / 2 2 0 V - 2 4 0 V ,
50 H z / 6 0 H z
Convertible for other countries
Dimensions 350(W) X 136(H) X 345(D)mm
(13.8 X 5.4 X 13.6 X inchies)
Weight 4.0 kg (8.8 Ibs)
Model H X - M 4 5 9 W
4.2 kg (9.2 Ibs)
Model H X - M 6 5 9 W
Standard accessories
Connection cords R C A pin cord X 2
* F o r improvement purposes, specifications and design are subject to change without notice.
* Noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and double-D symbol
are trad marks of Dolby Laboratories Licensing Corporation.
