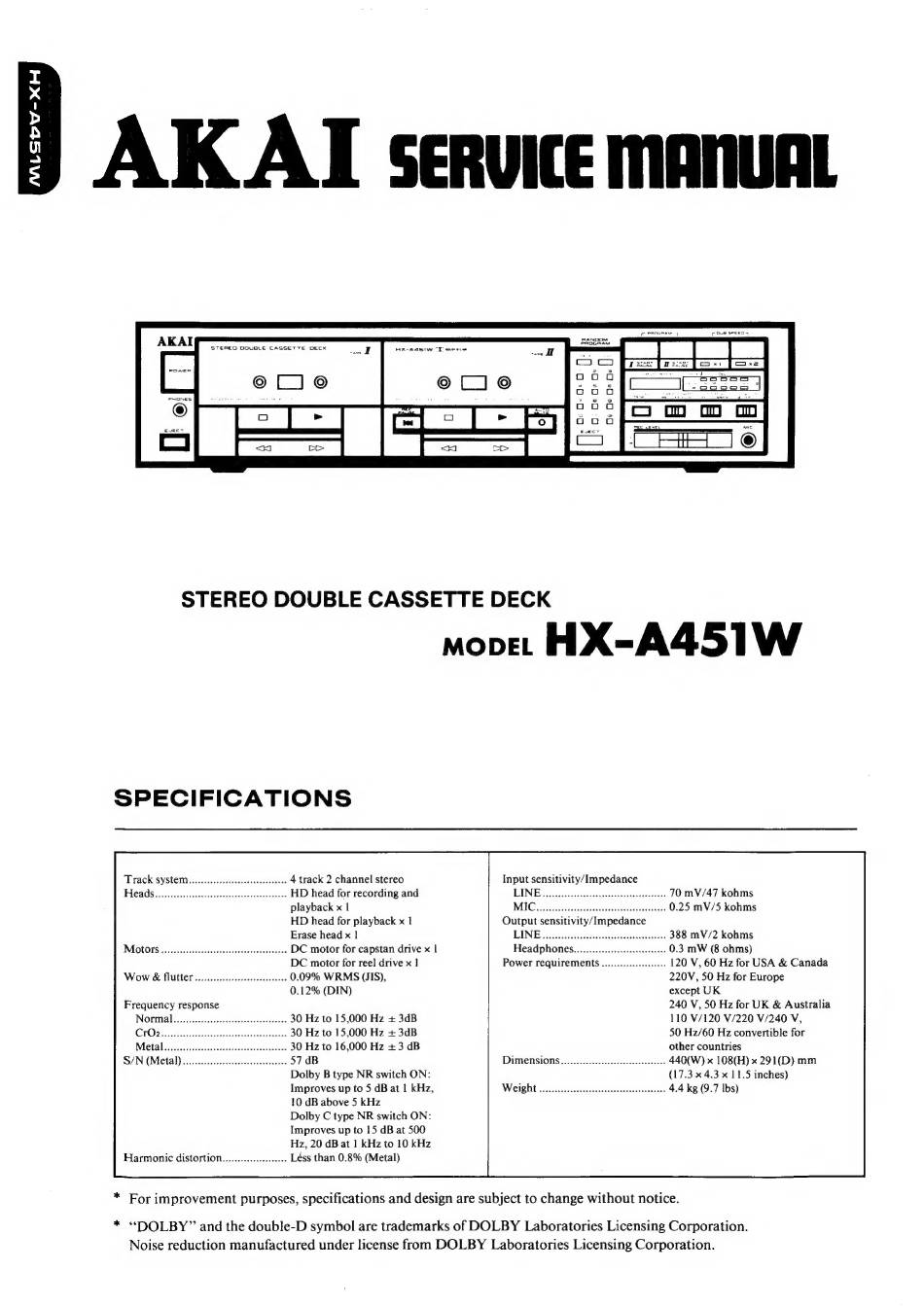

Akai HX-A451W Service Manual

STEREO DOUBLE CASSETTE DECK Hx-aasiw X
©LI]9O ©CjJ9oO

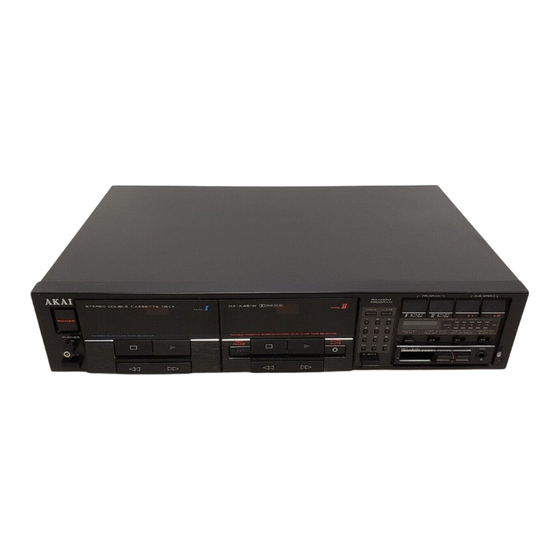

STEREO DOUBLE CASSETTE DECK
move. HX-A451W
SPECIFICATIONS
4 track 2 channel stereo Input sensitivity/Impedance
HD head for recording and 70 mV/47 kohms
playback x 1 0.25 mV/5 kohms
HD head for playback x I
Erase head x 1 388 mV/2 kohms
Motors DC motor for capstan drive x | Headphones .. 0.3 mW (8 ohms)
DC motor for reel drive x | Power requirements 120 V, 60 Hz for USA & Canada
Wow & flutter 0... eeceeeeeereeeeees 0.09% WRMS (JIS), 220V, 50 Hz for Europe
0.12% (DIN) except UK
Frequency response 240 V, 50 Hz for UK & Australia
30 Hz to 15,000 Hz + 3dB 110 V/120 V/220 V/240 V,
.. 30 Hz to 15,000 Hz + 3dB 50 Hz/60 Hz convertible for
.. 30 Hz to 16,000 Hz + 3 dB other countries
57 dB 440(W) x 108(H) x 291(D) mm
Dolby B type NR switch ON: (17.3 x 4.3 x 11.5 inches)
Improves up to 5 dB at | kHz, i 4.4 kg (9.7 lbs)
10 dB above 5 kHz
Dolby C type NR switch ON:
Improves up to 15 dB at 500
Hz, 20 dB at 1 kHz to 10 kHz
Harmonic distortion Léss than 0.8% (Metal)
* For improvement purposes, specifications and design are subject to change without notice.
* "DOLBY" and the double-D symbol are trademarks of DOLBY Laboratories Licensing Corporation.
Noise reduction manufactured under license from DOLBY Laboratories Licensing Corporation.
