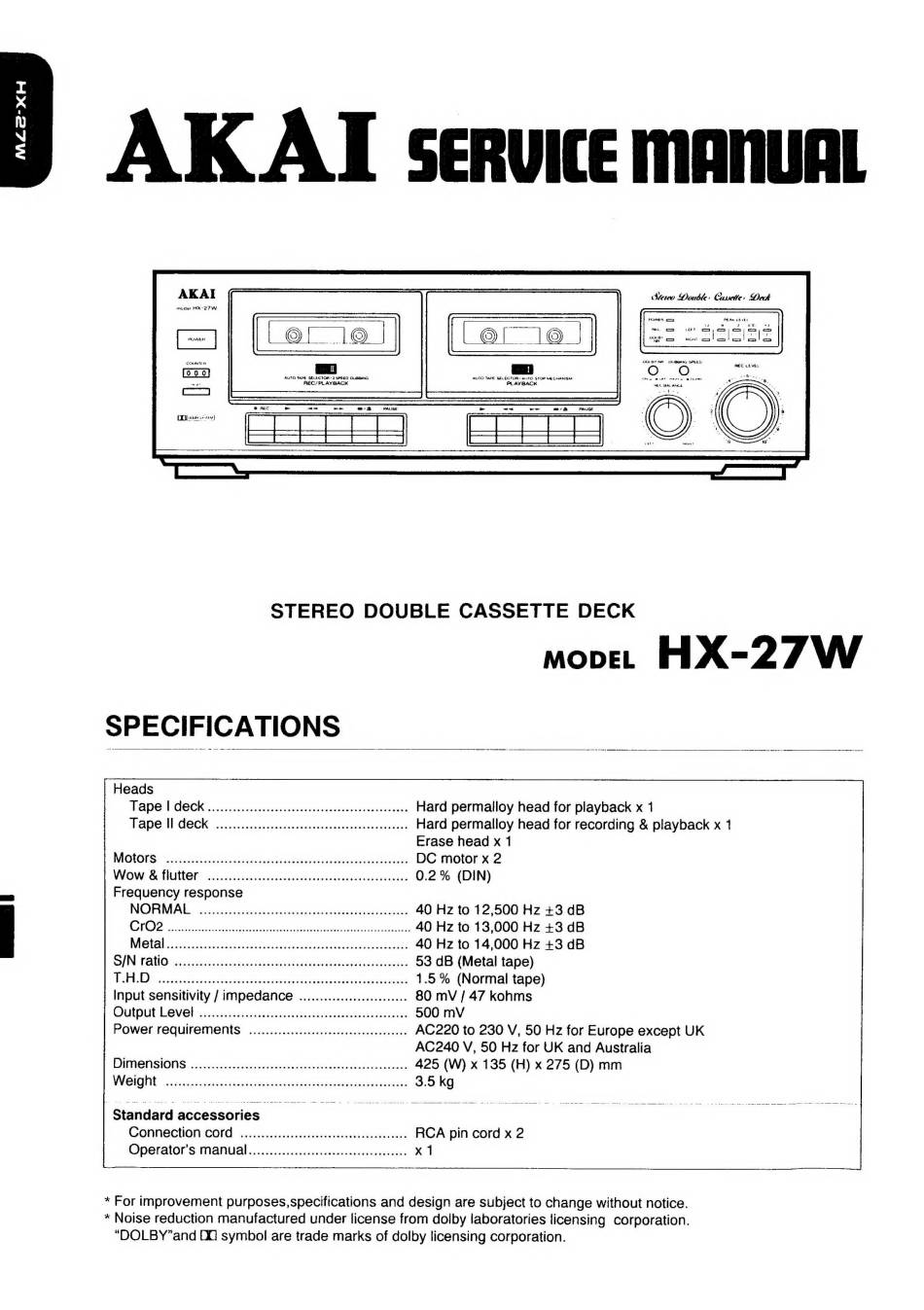

Akai HX-27W Service Manual

AK AT Service manual
Seco Double: Cassette. Dek
STEREO DOUBLE CASSETTE DECK
moo. HX-27W
or Eker eas Kaira
Heads
Tape | deck Hard permailloy head for playback x 1
Tape II deck Hard permalloy head for recording & playback x 1
Erase head x 1
DC motor x 2
Wow & flutter 0.2 % (DIN)
Frequency response
40 Hz to 12,500 Hz +3 dB
40 Hz to 13,000 Hz +3 dB
40 Hz to 14,000 Hz +3 dB
53 dB (Metal tape)
1.5% (Normal tape)
Input sensitivity / impedance 80 mV / 47 kohms
Output Level 500 mV
Power requirements AC220 to 230 V, 50 Hz for Europe except UK
AC240 V, 50 Hz for UK and Australia
Dimensions 425 (W) x 135 (H) x 275 (D) mm
3.5 kg
Standard accessories =
Connection cord RCA pin cord x 2
* For improvement purposes, specifications and design are subject to change without notice.
* Noise reduction manufactured under license from dolby laboratories licensing corporation.
"DOLBY"and O60 symbol are trade marks of dolby licensing corporation.
