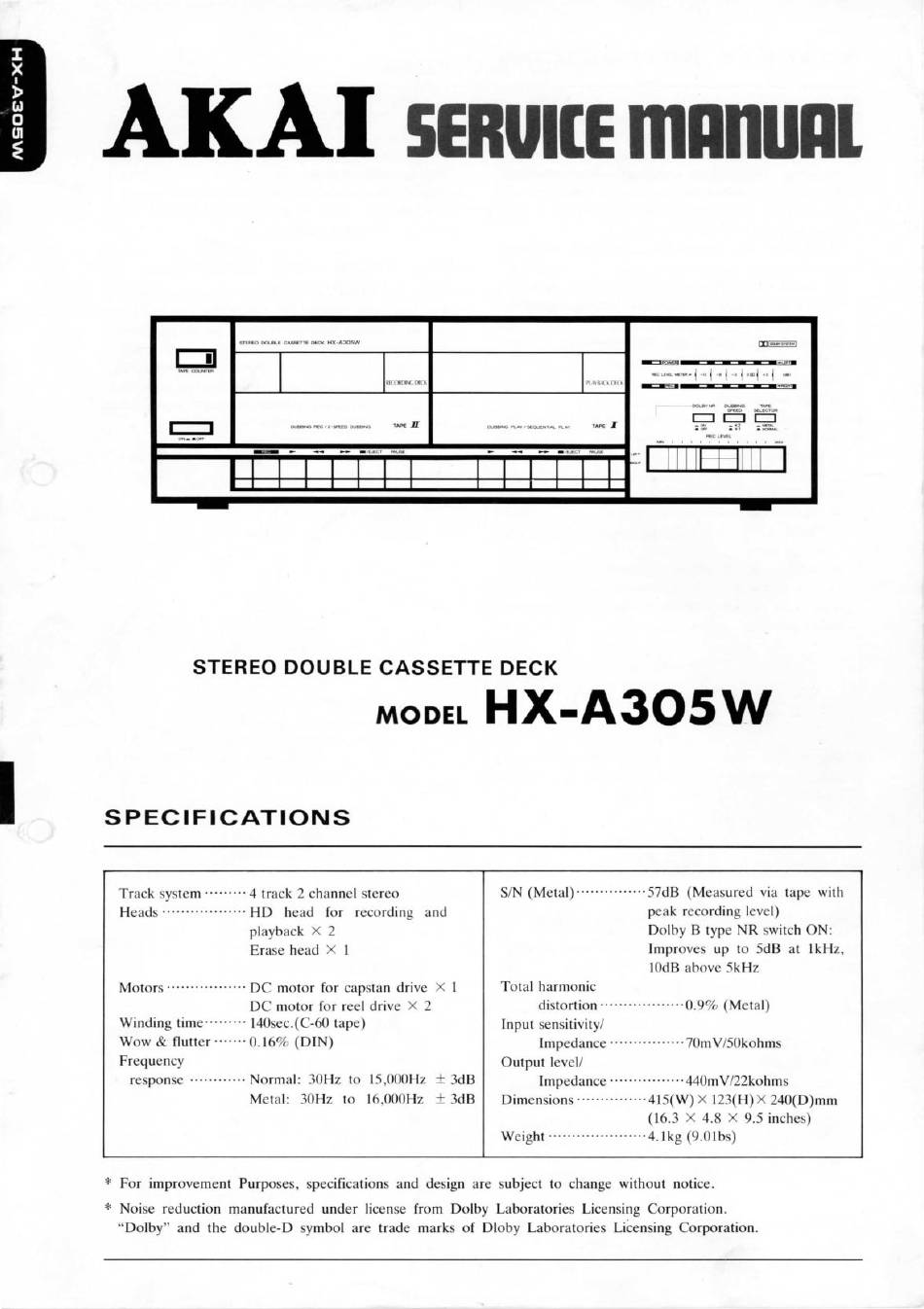

Akai HX-A305W Service Manual

AK A I
SERUiCE
mnnunL
SItMEO .X,UaLE CASSETTE DECK H X - A 3 0 5 W
— - I - I - I - I - I - I '
1
zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONM
oOLBïNfi DuaBl^^G TAPE
' 1
-Q::E3::D
1 •!
1—1
1
KECOKDrC DfCK
— - I - I - I - I - I - I '
1
oOLBïNfi DuaBl^^G TAPE
' 1
-Q::E3::D
1 •!
1—1
1
ouBBiNG nEC/ ï- spe£0 DueeiNG
TAPE
U
E
•UBBINQ PLAV/SEOUENTIAL PtAI TAPE
X
— - I - I - I - I - I - I '
1
oOLBïNfi DuaBl^^G TAPE
' 1
-Q::E3::D
S T ER EO D OUBLÉ C A S S E T T E D ECK
M O D E L
H X . A 3 0 5 W
S P E C I F I C A T I O N S
Track system 4 track 2 channel stereo
Heads H D head for recording and
playback X 2
Erase head X 1
Motors D C motor for capstan drive X 1
D C motor for reel drive X 2
Winding time 140sec.(C-60 tape)
Wow & flutter 0.16% ( D I N )
Frequency
response Normal: 30Hz to 13,()00Hz + 3dB
Metal: 30Hz to 16,(K)0Hz + 3dB
S/N (Metal) 57dB (Measured via tape with
peak recording leve!)
Dolby B type N R switch O N :
Improves up to 5dB at I k H z ,
lOdB above 5kHz
Total harmonie
distortion 0.9% (Metal)
Input sensitivity/
Impedance 70mV/ 50kohms
Output level/
Impedance 440mV/ 22kohms
Dimensions 415(W) X 123(H) X 240(D)mm
(16.3 X 4.8 X 9.5 inches)
Weight 4.1 kg (9.0Ibs)
* F o r improvement Purposes, specifications and design are subject to change without notice.
* Noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
" D o l b y " and the double-D symbol are trade marks of Dloby Laboratories Licensing Corporation.
