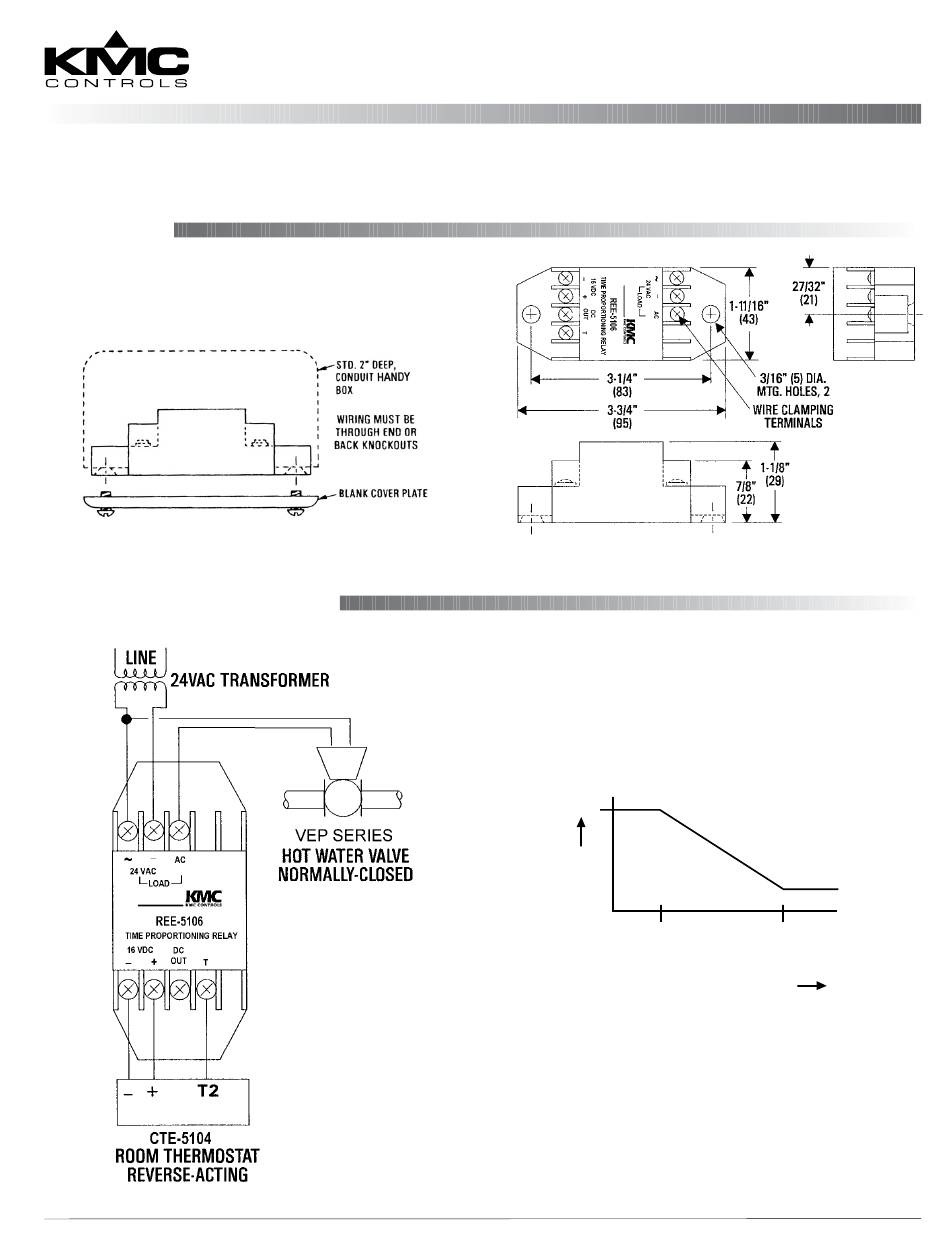

Mounting
The
module may be mounted directly to a control
box surface or in a 2 x 4" electrical handy box. Add a
blank cover to conceal the module if desired.
Connections and Wiring
REE-5106/5123
Relay Module, Proportional Reheat w/ Thermostat Power Supply
Installation Guide
REE-5106
All dimension are in inches (mm)
Wire as shown for providing proportional reheat to
an electric hot water valve. Supply the relay with 24
VAC (+20%/–15%) from a Class 2 transformer. (Use
wire size of 14 to 22 AWG, stranded.)
Valve
Open
Water
Flow
10
Room Temperature
NOTE: The REE-5123 (shown on the next page) has
been discontinued.
NOTE: For REE-5106 use with a CTE-5202
thermostat, see the
Guide
on the KMC web site.
1
REE-5106/5123
Valve
Closed
Thermostat
2 VDC
Signal (RA)
CTE-5202 Applications
Installation Guide
