KMC Controls VEB-53 Series Installation Manual

2-way, flanged, control ball valves

Advertisement

Mounting

1. Clean the lines upstream from the valve. Remove
any debris (welding slag, pipe scale, or other
contaminants) larger than 1/16 inch (1.6 mm).
NOTE: If the system experiences large amounts
of debris, steps should be taken to keep
the system clean, such as 20 mesh strainer
installed upstream of the valve.

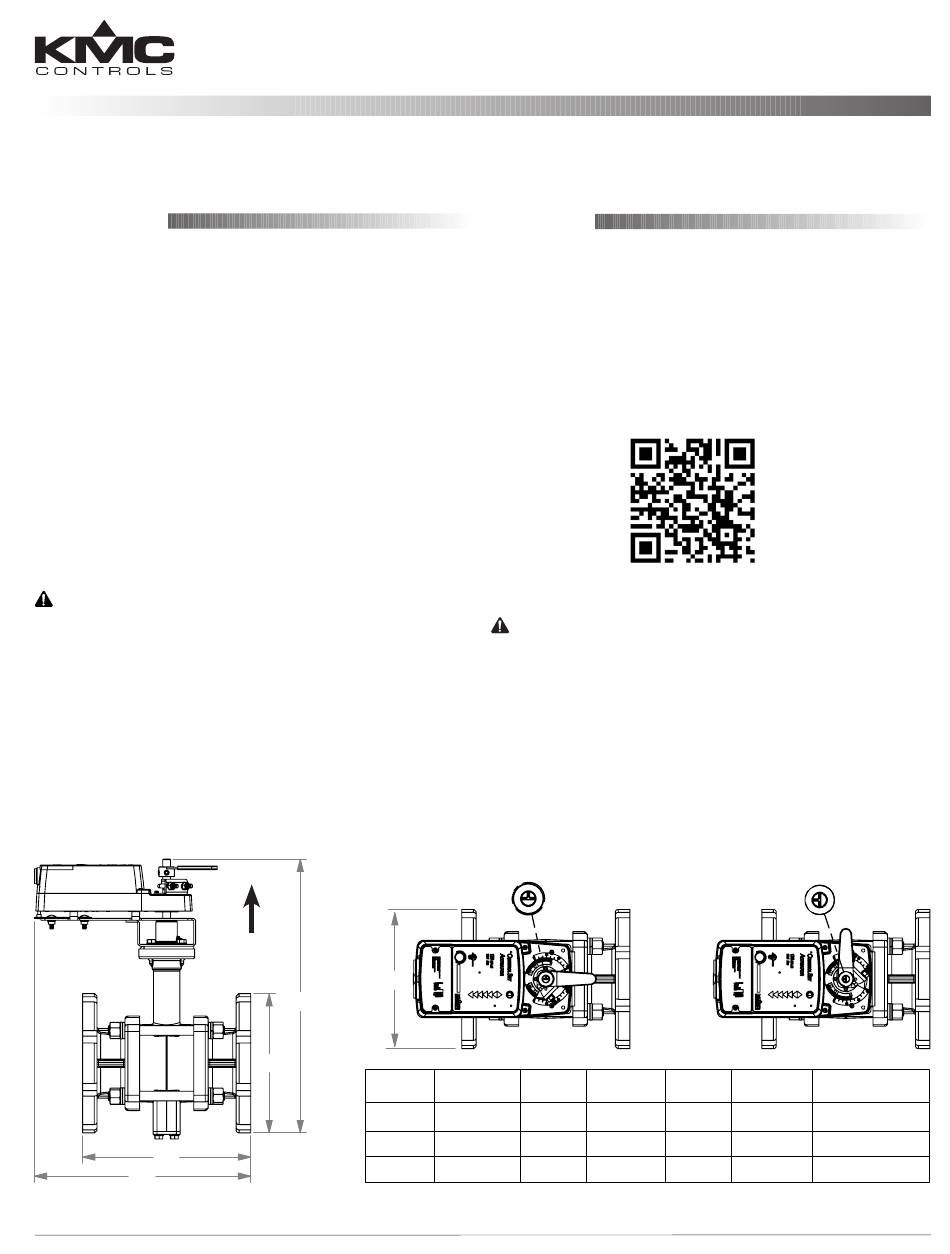

2. Align the valve assembly according to the system
flow requirements (see the illustration below).
3. The valve may be mounted on either vertical or
horizontal pipe lines. On horizontal lines, mount
the valve so the actuator is positioned upright and
over the valve. (Leave sufficient room on all sides
to service the actuator and valve.)
CAUTION
To prevent condensation from dripping onto the
actuator housing on horizontal lines, mount the
valve with the actuator in the upright position or, at
most, at a 45° angle.
4. Install approved flange gaskets (not supplied by
KMC Controls) and bolt the valve to the pipes.
5. Eliminate air from the system to keep the valves
full of fluid during operation.
(on horizontal
A
C
VEB-53 Series Valves
Installation Guide
UP
lines)
D
E
B
Size
4"
5"
6"
2-Way, Flanged, Control Ball Valves

Wiring

Wiring is dependent on the type of actuator and
the desired options that are available. Consult the
actuator model label and then the relevant sections
in the MEP-7200/7500/7800 Series Actuators
Installation
Guide for detailed instructions on the
applicable wiring, feedback selector, and actuator/
signal range reset (auto-mapping) of the valve's
actuator.
CAUTION
Using mineral oil lubricants or other
incompatible substances in system fluids may
damage EPDM rubber seals in valves. Before
using any lubricant or additive in a water or
ethylene glycol base, consult the substance
manufacturer for compatibility with EPDM
(Ethylene Propylene Diene Monomer).
Full CW = Valve Open
A
B
C
11
9
13.75
12.375
10
14.75
13.875
11
15.625
1
VEB-53 Series
Full CCW = Valve Closed
D
E
Weight (lb.)
9
17.75
10
18
11
18.875
Installation Guide
70
80
95
