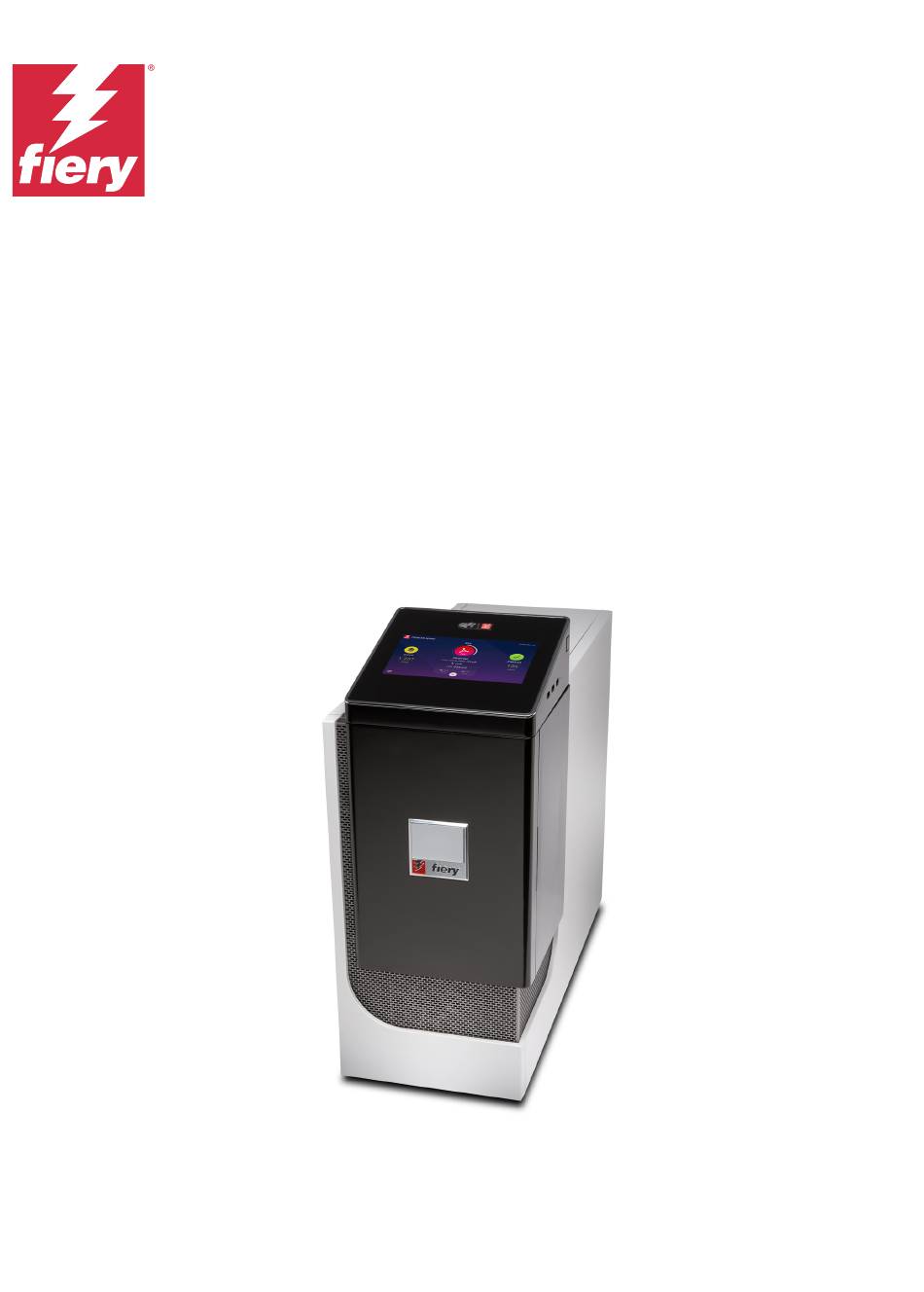

- Page 1 Xerox® EX-P 4100 Print Server Powered by Fiery®, version 2.0 Product Security Guide...
- Page 2 © 2024 Fiery, LLC. The information in this publication is covered under Legal Notices for this product. 45244738 *45244738* 31 January 2024...
-
Page 3: Table Of Contents
Product Security Guide Contents Contents Product Security Guide overview ............5 Product Name . - Page 4 Product Security Guide Contents...
-
Page 5: Product Security Guide Overview
• How the product behaves in a networked environment. • How the product can be accessed, both locally and remotely. This document describes design, functions, and features of Xerox products relative to Information Assurance (IA). Product Name Company IoT Names... -
Page 6: Digital Front End (Dfe) Description
Product Security Guide Digital Front End (DFE) Description Digital Front End (DFE) Description When a customer prints, the motherboard and printer interface board process image data. The printer interface board is a custom board that allows the EX-P 4100 Print Server to communicate with the printer. The CPU controls the transfer of image data to and from the motherboard and runs the PostScript interpreter. - Page 7 Product Security Guide Digital Front End (DFE) Description Figure 2: EX-P 4100 Print Server connector panel...
-
Page 8: Ex-P 4100 Print Server - Print Engine System Interface Diagram
Product Security Guide Digital Front End (DFE) Description EX-P 4100 Print Server – Print Engine System Interface Diagram... -
Page 9: Dfe Functions
Product Security Guide DFE Functions DFE Functions Memory information Table 1: Volatile Memory Type (SRAM, Size User Modifiable Function or Use Process to Sanitize DRAM, etc) (Y/N) DRAM 32 GB (4 GB x8) Main System Memory Power Off Server (receives jobs sent to Direct queue) SDRAM (on video 1 GB... -
Page 10: External Connections
Product Security Guide DFE Functions Type (SRAM, Size User Modifiable Function or Process to Sanitize DRAM, etc) (Y/N) Hard Disk Drive 4 TB (2 TB x2 drives) Reinstall the system • Fiery (HDD) software. applications (possibly with Jobs can be securely user data) removed with the Secure Erase feature. -
Page 11: Usb Ports
Product Security Guide DFE Functions Printer interface board connectors For transferring the image date from Display port video connector DFE to IoT. Printer interface board is installed on a PCIE slot. 1 Printer interface connector (CK) 2 Printer interface connector (YM) USB ports Printing from the USB ports can be disabled from the configuration tools. -
Page 12: Logical Ports And Filtering Information
Product Security Guide Logical ports and filtering information Logical ports and filtering information IPSec, mode descriptions IPsec or Internet Protocol security provides security to all applications over IP protocols through encryption and authentication of every packet. The Fiery server uses pre-shared key authentication to establish secure connections with other systems over IPsec. - Page 13 Product Security Guide Logical ports and filtering information Port Name 161-162 SNMP HTTPS SMB/IP ISAKMP 4500 IPsec NAT traversal 5353 Multicase DNS (mDNS) 3702 3702 WS-Discovery Fiery ports • • 6310 9906 • 8010 • 8021-8022 • 8090 • 9906 •...
-
Page 14: Device Software Update Control
Product Security Guide Device software update control Device software update control Physical access methods (USB, network) Following methods are provided: • Fiery Updates The Fiery Updates feature provided in Command WorkStation allows users to install and download the available updates and patches from the network. Fiery Updates also allows users to view the history of completed update and patch installation.
