SilverStone RMS09-20 Quick Start Manual

Middle slide Front bracket
Inner slide
Switch down/up
RMS09-20
20" Ball bearing sliding rail kit for rackmount chaasis
www.silverstonetek.com
Please use hand to exert force and stretch the slide along the expansion direction until it
2
is in place. After hearing two clicking sounds, use fingertip to push the spring tab in the up
and down direction of the slide as shown in the figure, which will unlock the inner slide.
Then, use hand to synchronize and pull out the inner slide along the expansion direction
of the slide completing the disassembly action.

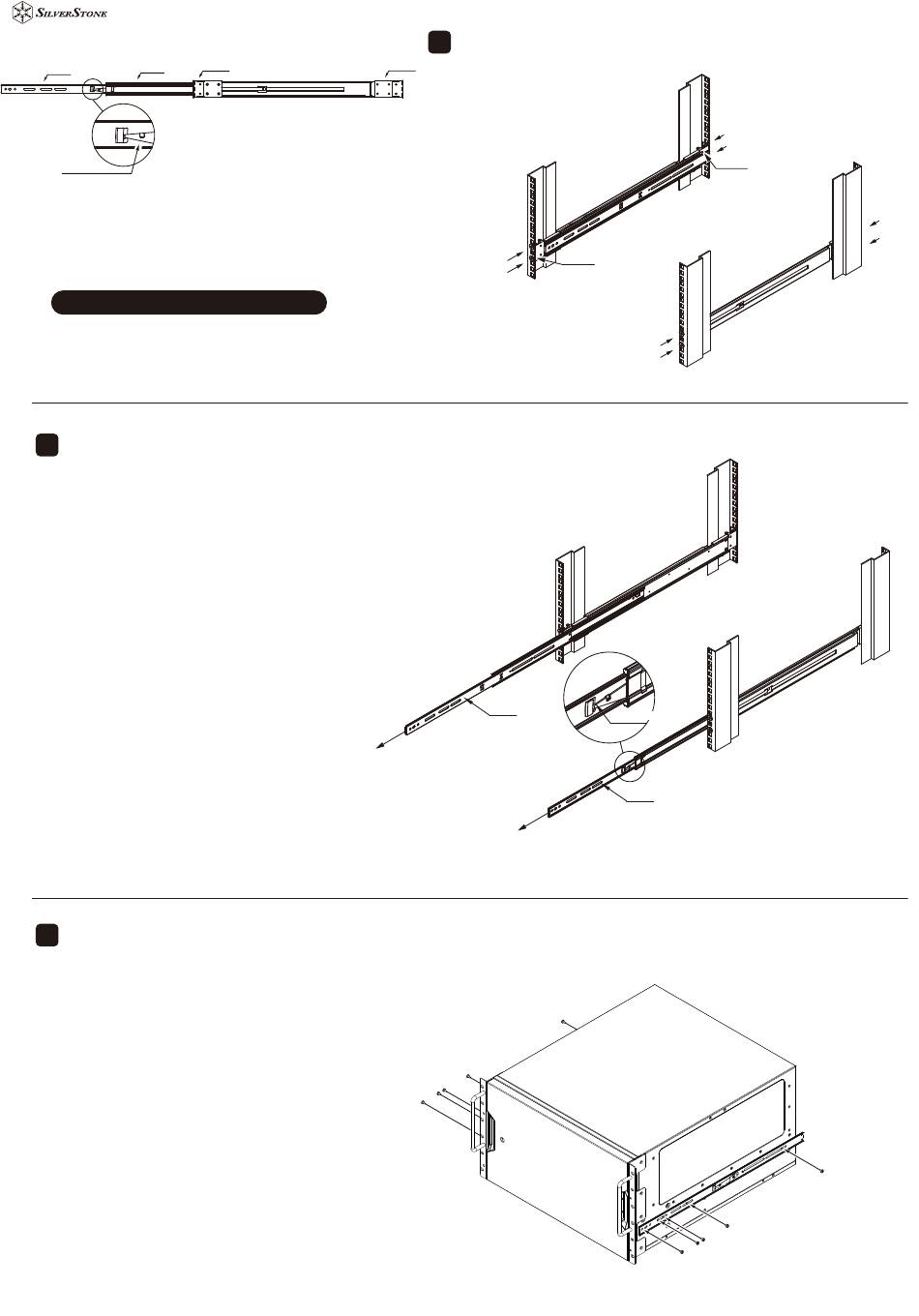

Please align inner slide installation holes with the corresponding screw holes
3
on both sides of the chassis, and tighten the bolts in place to ensure safety
and reliability.
Please lift the slide and align the screw holes at theshort (front) bracket end of the slide rail with
1
the inner side of the front installation column of the cabinet, ensuring that the bolt withstep limit
is fixed in the positive 1U square hole and installed in place
Rear bracket
Inner slide
Rear bracket
Front bracket
Switch down/up
Inner slide
