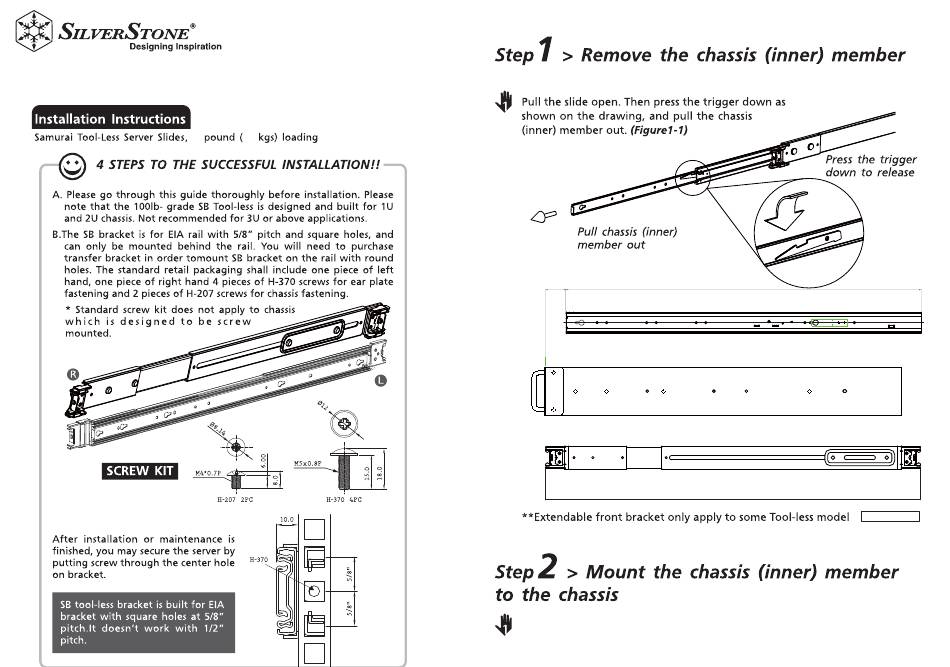

Quick Installation Guide of RMS01

CHASSIS

REAR BRACKET

FRONT BRACKET

MIN=A+38 (22" Below = 632mm)

EXT=300MM

Align the spring clip on chassis (inner) member of the pre-formed bayonets on

both sides of the chassis. Push back the inner member to allow the rail slide to

be fixed to the rackmount chassis. Moreover, please make sure the spring clip

installation has been completed on the rackmount chassis when finishing this step.

Table of Contents

Need help?

Do you have a question about the RMS01 and is the answer not in the manual?

Page 1 Quick Installation Guide of RMS01 CHASSIS REAR BRACKET FRONT BRACKET MIN=A+38 (22" Below = 632mm) EXT=300MM Align the spring clip on chassis (inner) member of the pre-formed bayonets on both sides of the chassis. Push back the inner member to allow the rail slide to be fixed to the rackmount chassis.
Page 2 *Bayonet on chassis shall be pre-formed as per the recommended dimension and location. * If there is concern for rackmount security, we have provided screws to allow further reinforcement of the fixed rackmount chassis. *If you need to remove the inner member from the rackmount chassis, please pull up spring clip first and then push forward to allow the spring clip to separate from the inner member.
