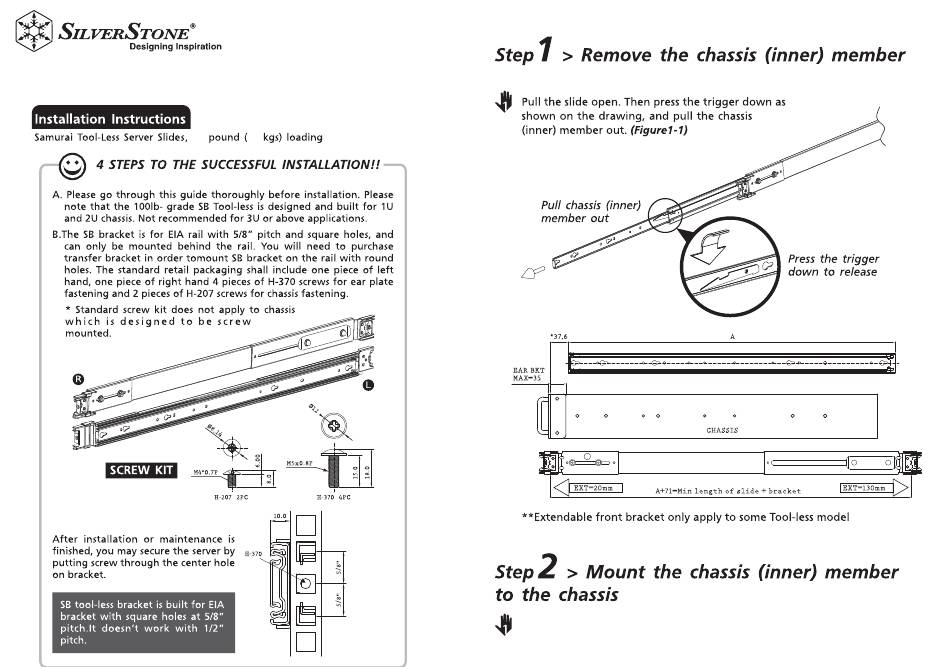

Quick Installation Guide of RMS03-24 / RMS04-20
100
45
Align the spring clip on chassis (inner) member of the pre-formed bayonets on
both sides of the chassis. Push back the inner member to allow the rail slide to
be fixed to the rackmount chassis. Moreover, please make sure the spring clip
installation has been completed on the rackmount chassis when finishing this step.
