SilverStone ARM21 Quick Start Manual

1
2
3

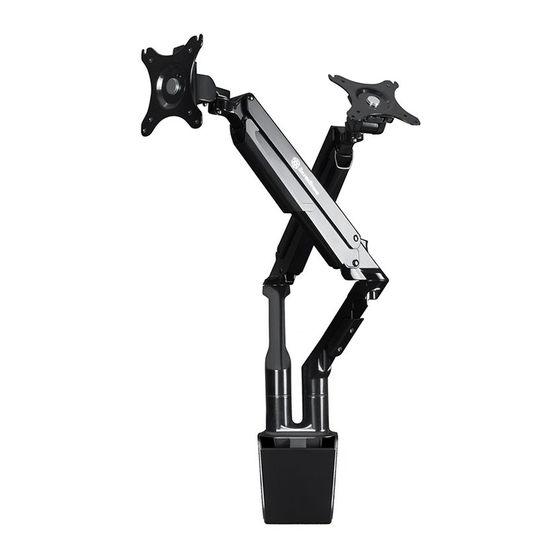

ARM21 4
5
6
7
Gas Spring Swing
8
Dual Monitor Mount
9
10
11
12
17"-32"

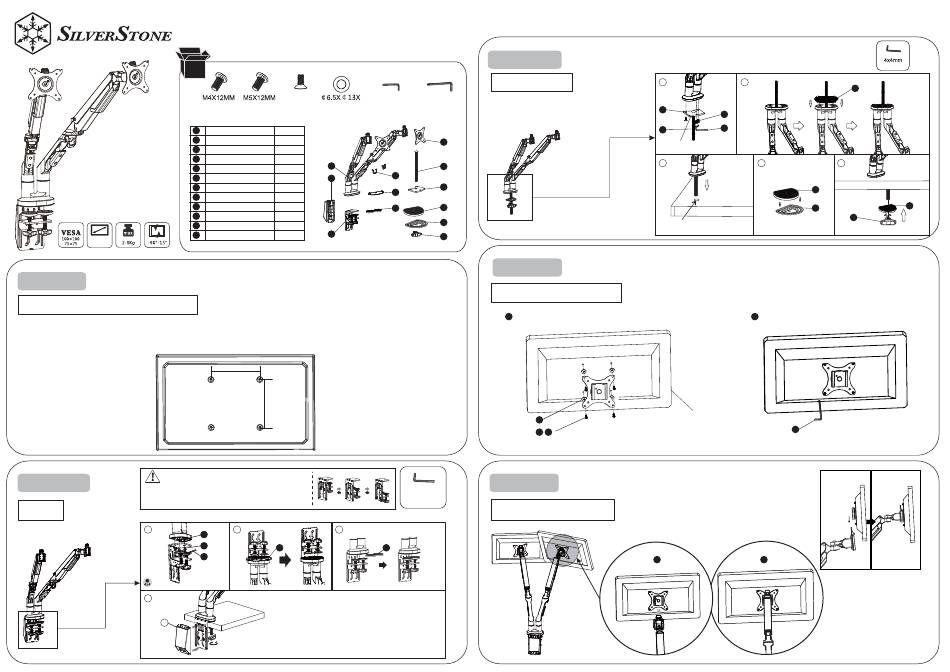

STEP 1
The Preparation Before Monitor Installation
1. Make sure there are VESA holes 100x100mm or 75 x 75mm in the monitor. If not, the mount installed.
2. Remove the original fixed base of monitor. Be careful not to scratch the screen.
75mm x 75mm,
100mm x 100mm
STEP 2-A
Select proper available hole
according to thickness of desk
Option 1:
1
4
5
2
M6x12 MM
Allen Key
A(8 PCS) B(8PCS) C(3PCS) D(16PCS)
E(1PC)
Support arm 1PC
Base Mounting Plate 1PC
Protection pad 2PC
Protection pad 1PC
1
Plastic cable cover 1PC
Perforated plate 1PC
5
Long screw 1PC
Protection pad 1PC
Knob nut 1PC
Pressure plate 1PC
Mount Plate 2PC
2
Clip 2PC
2 3
1
C
4
E
For desk thickness:20-100mm
Tighten
STEP 2-B
Option2:Grommet
4x4mm 5x5mm
Allen Key
F(1PC)
11
7
12
6
4
3 8
9
10
STEP 3
Connect the plate and moniter
1
D
A B
STEP 4
4 x 4mm
Install the monitor to the arm
3
1 2
6
C
E
7
Notice:Keep the
counterbore side down
3 4
Available hole size:8.5-70mm
1
Monitor
Use washer if needed
1 2
4
5
For desk thickness:25-100mm
8
8
9
10
Tighten
Use the allen key (F) to thighten the screw
Tighten
F
Hang the monitor on the plate
from top to bottom and ensure
it be tightened
