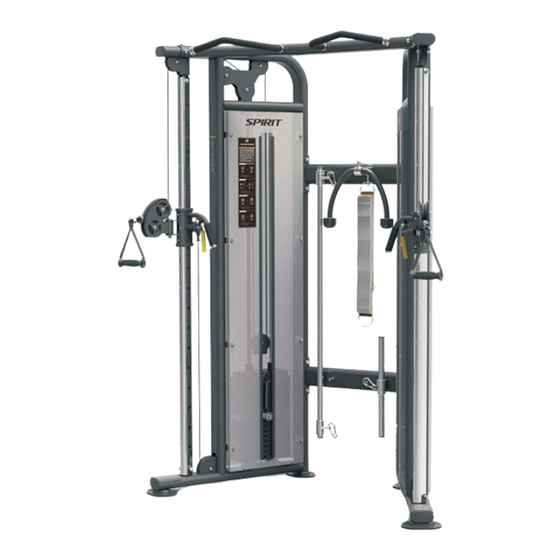

- Page 1 SP-3526 FUNCTIONAL TRAINER OWNER'S MANUAL...
-
Page 3: Table Of Contents
Table Of Contents Introduction ................. 4 Manufacturer ................4 International Offices ..............4 Customer Support ............... 5 Safety Instructions ............... 6 Precautions ................7 Warning Labels and Stickers ............17 Safeguards ..................18 Assembly and Setup ..............19 Parts List ..................20 Assembly Instructions .............. -
Page 4: Introduction
® SPIRIT Series – CHEST PRESS manufactured by Spirit Fitness FUNCTIONAL TRAINER Be sure to read and follow the information and instructions before assembling, using or servicing SPIRIT strength equipment. anufacturer DCMNA 18303 Bothell Everett Hwy. Suite 210 Bothell, WA 98012... -
Page 5: Safety Instructions
FUNCTIONAL TRAINER This chapter includes precautions and fitness safeguards for the installation and use of the manufactured by SPIRIT FITNESS.. Please read this chapter carefully before installing or using your strength equipment. Live area and Training area The live area shall be not less than greater than the training area in the directions from which the equipment is 160cm (63’’) -
Page 6: Precautions
Do not attempt to remove any shrouds or modify the Strength Equipment. WARNING · Your Strength Equipment m anufactured by Spirit Fitness is designed for the exercise in a commercial or consumer environment. · Please check with your physician prior to beginning any exercise program. - Page 7 VOORZORGSMAATREGELEN Deze veiligheidsaantekeningen zijn aan u gericht als eigenaar van de Strength Equipment manufactured by Spirit Fitness. Gelieve uw gebruikers en uw per- soneel voor conditietraining volledig bekend te maken met deze veiligheidsinstructies. Doe het volgende: Moedig elk van uw gebruikers aan hun gezondheidspro- gramma of conditietherapie met een professioneel uit de gezondheidszorg te bespreken.
- Page 8 Ne tentez pas de retirer tout carter de protection ni de modifier le Strength Equipment. AVERTISSEMENT Le Strength Equipment manufactured by Spirit Fitness est conç u pour l'exercice aérobique dans un environnement commercial ou privé. Veuillez consulter un médecin avant de commencer tout programme d'exercice.
- Page 9 Unternehmen Sie keinen Versuch, irgendwelche Abdeckungen zu entfernen oder den Strength Equipment zu modi- fizieren. ACHTUNG Der Strength Equipment manufactured by Spirit Fitness ist fü r aerobische Übungen in einer kommerziellen oder Verbraucherumgebung vorgesehen. Bitte holen Sie vor Aufnahme eines jeden Trainingsprogramms den Rat Ihres Arztes ein.
- Page 10 Non cercate di rimuovere le coperture o di modificare lo Strength Equipment. AVVERTENZE Lo Strength Equipment manufactured by Spirit Fitness è stato realizzato per esercizi di aerobica in un ambiente pubblico o privato adeguato. Prima di iniziare un programma di esercizio fisico, consultate il vostro medico.
- Page 11 PRECAUÇÕES Estas notas de seguranç a destinam-se a você, proprietário do Strength Equipment manufactured by Spirit Fitness. Treine todos os usuários e o pessoal da academia para que sigam estas instruç ões de seguranç a. O que fazer Incentive todos os usuários a discutirem seu programa de saúde ou sistema de condicionamento fí sico com um profissional da área de saúde.
- Page 12 PRECAUCIONES Estas notas de seguridad están dirigidas a usted como el dueño de Strength Equipment manufactured by Spirit Fitness. Por favor instruya a todos sus usuar- ios y personal de entrenamiento para que sigan estas instrucciones de seguridad. Lo que se debe hacer ...
- Page 13 FÖRSIKTIGHETSÅTGÄRDER Dessa sä kerhetsanmärkningar är riktade till dig i egenskap av ägare av Strength Equipment manufactured by Spirit Fitness. Var god utbilda alla användare och all personal att fö lja dessa sä kerhetsanvisningar. Man ska Uppmuntra alla användare att konsultera sitt hälso- progam eller sin träningsregim med en läkare.
- Page 15 使用前、使用中にめまいや気分が悪いと感じた場合は、直ちにバイクの使用をやめてエクササイズを中止してくだ さい。 エクササイズバイクの定期的な予防メンテナンスを行ってください。 行っているエクササイズが快適に感じるまではゆっくりと運動してください。 DO NOT（行わないでください） 監督なしでの子供の自転車使用を禁止してください。 適切な運動靴なしで使用しないでください。 雨天時の屋外や屋内プールでの使用は避けてください。 フライホイールの開口部やその付近に物、手、足、指等を落としたり、入れたり、触れたりしないようにしてくだ さい。 カバーや覆いを取り外したり、このエクササイズバイクを改造しないでください。 警告 この Strength Equipment は Spirit Fitness 社によって製造された、業務使用目的または個人使用目的の有酸素運 動用に設計されたエクササイズバイクです。 エクササイズプログラムを始める前に必ず医師にユーザー自身の健康状態を相談してください。 自分自身のレベルを超えた過度なエクササイズは避けてください。わずかでも、体調不良やめまいを感じたり、疲 労を感じた場合は直ちにエクササイズを中止して、使用を止めてください。エクササイズバイクの使用には適切な 常識を適用する事をお勧めいたします。 エクササイズバイクを使用する前に、取扱説明書すべてを読み理解してください。 この警告に従わない場合は、重篤な事故、怪我や死亡に繋がる可能性があります。...
-
Page 16: Warning Labels And Stickers
It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged contact your local dealer or distributor for a replacement. If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away. NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE... -
Page 17: Safeguards
Proper Usage • Do not use any equip ment in any way other than designed or inten ded by the manufacturer. It is imperative that SPIRIT FITNESS e quipment is used properly to avoid injury. •... -
Page 18: Assembly And Setup
If parts are missing, or if you have any operational questions, please call your local Spirit Fitness’s Service department or the distributor whom sold you the product. Please see page 3 for a listing of international corporate offices and locate the office nearest you. -
Page 19: Parts List
Parts List Description Spec Part No. Left Doorframe SP-3526-001 Right Doorframe SP-3526-002 Upper Beam Bracket SP-3526-003 Link Span SP-3526-004 Rotary Frame SP-3526-006 Roller Hanger SP-3526-007 Left Adjusting Pipe SP-3526-008 Right Adjusting Pipe SP-3526-009 Guide Rod φ20*1726 SP-3526-010 Guide Rod Fixing Plate... - Page 20 Parts List Description Spec Part No. Cross Recessed Pan Head Tapping Screw ST4.2*16 SP-3526-052 Flat Washer φ24*φ13*2.5 SP-3526-053 Flat Washer φ20*φ10.5*2 SP-3526-054 Big Washer φ24*φ8.4*2 SP-3526-055 Big Washer φ15*φ5.3*1.2 SP-3526-056 Spring Washer SP-3526-057 Spring Washer SP-3526-058 Nylon Insert Lock Nut...
-
Page 22: Assembly Instructions
Assembly Instructions STEP 1 Description Spec Left Doorframe Right Doorframe Link Span Socket Cap Screw M10*25 Flat Washer φ20*φ10.5*2 Spring Washer 1cm 2... - Page 23 Assembly Instructions STEP 2 Description Spec Left Doorframe Right Doorframe Upper Beam Bracket Socket Cap Screw M10*25 Flat Washer φ20*φ10.5*2 Spring Washer 1cm 2...
- Page 24 Assembly Instructions STEP 3 Description Spec Left Doorframe Right Doorframe Roller Hanger Guide Rod φ20*1726 Guide Rod Fixing Plate 10LB Weight Stack 10LB Counter Weight Stack Set 17 Holes Shaft Select Pin Rod End Cover Rubber Bumper φ62*φ20*26 Umbrella Head Hexagon Socket Screw M8*25 Big Washer φ24*φ8.4*2...
- Page 25 Assembly Instructions STEP 4 Description Spec Cross Recessed Pan Head Tapping Screw ST4.2*16 Big Washer φ15*φ5.3*1.2 Front Shield 1cm 2...
- Page 26 Assembly Instructions STEP 5 Description Spec Short Handle Set Knee Cover Set Pull Back Rope Set Handle Grips Squat Handle Set 1cm 2...
-
Page 27: Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. - Page 28 Owner’s Manual © 2019 All Rights Reserved...
