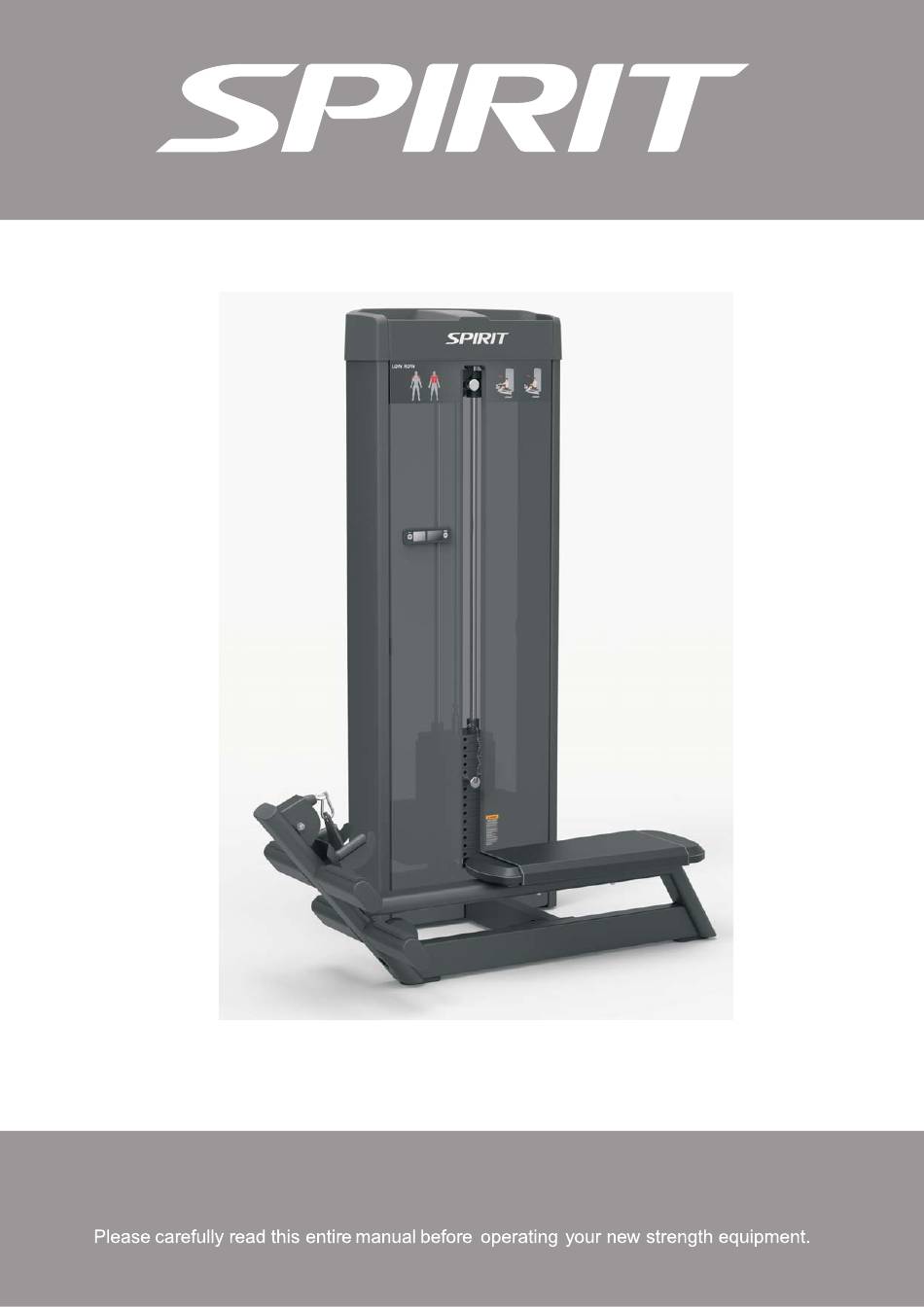

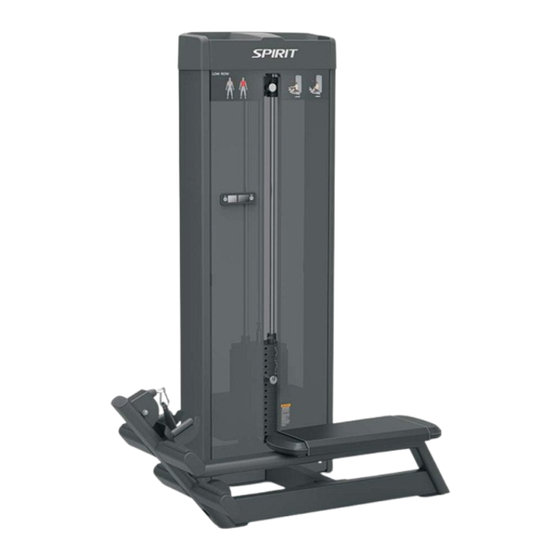

- Page 1 Low Row SP-4319 OWNER'S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ................. 3 Manufacturer ................3 International Offices ..............3 Important safety instructions ............4 Precautions ................. 5 Warning ..................5 Warning Labels and communication stickers ........7 Safeguards ..................8 Assembly and Setup ..............9 Product specifications ..............9 Parts list ..................10 Assembly Instructions..............16 Startworkout ................26 Repetition and Time Counter... -
Page 3: Introduction
® SPIRIT Series – SP4319 Low Row manufactured by Spirit Fitness CHEST PRESS Be sure to read and follow the information and instructions before assembling, using or servicing SPIRIT strength equipment. anufacturer DCMNA 18303 Bothell Everett Hwy. Suite 210 Bothell, WA 98012... - Page 6 1480 Training area 1020...
-
Page 7: Warning
It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged contact your local dealer or distributor for a replacement. If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away. NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE... -
Page 9: Assembly And Setup
If parts are missing, or if you have any operational questions, please call your local Spirit Fitness’s Service department or the distributor whom sold you the product. Please see page 3 for a listing of international corporate offices and locate the office nearest you. -
Page 10: Parts List
Parts List Description Spec Part No. Doorframe SP-4318-001 Upper shield SP-4318-002 Shield fixed plate SP-4318-003 Guide rod SP-4318-004 Guide rod fixed plate SP-4318-005 Fixed bushing SP-4318-006 Front shield SP-4318-007 Back shield SP-4318-008 Rubber bumper φ64*φ32*φ20*35 SP-4318-009 Rubber bumper φ38*φ21*10 SP-4318-010 Floor cushion SP-4318-011 Rod end cover... - Page 11 Parts List...
- Page 14 STEP 1 Assembly Instructions Description Specifications Doorframe Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Main frame Connect frame Socket cap screw M8*75 Flat washer Φ16*Φ8.4*1.6 Sping washer Cushion 1cm 2...
- Page 15 STEP 2 Assembly Instructions Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Pulley sets φ89*32 Selector pin Inner Hexagon Socket Head Bolt M8*20 Inner Hexagon Socket Head Bolt M10*55 30 Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer...
-
Page 16: Assembly Instructions
STEP 3 Assembly Instructions Description Specifications Upper shield Shield fixed plate Front shield Back shield M5*10 Cross recessed countersunk head screw Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6 1cm 2... -
Page 18: Repetition And Time Counter
Repetition and Time Counter A battery-operated console is available for use on SP-43 Series Selectorized Strength Equipment. The console tracks workout time and number of repetitions per set. Repetition Counter Time Counter This counter is powered by 2 pcs of AA batteries. (Alkaline Battery Recommended) Troubleshooting PROBLEM... - Page 19 t p i Dry Reed Pipe Connection Wire...
-
Page 20: Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. - Page 21 Owner’s Manual © 2019 All Rights Reserved...
