Summary of Contents for Spirit SP-3604

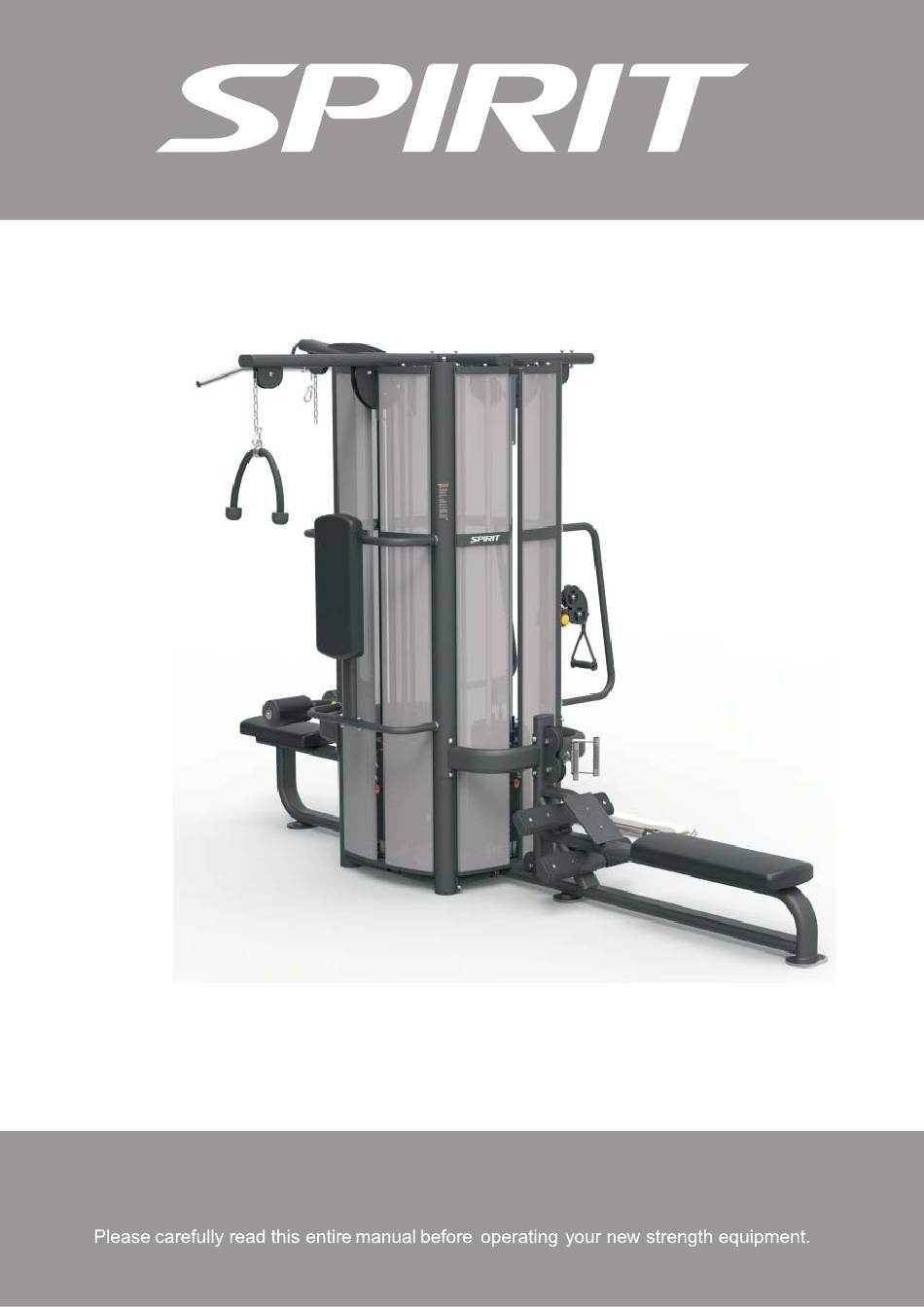

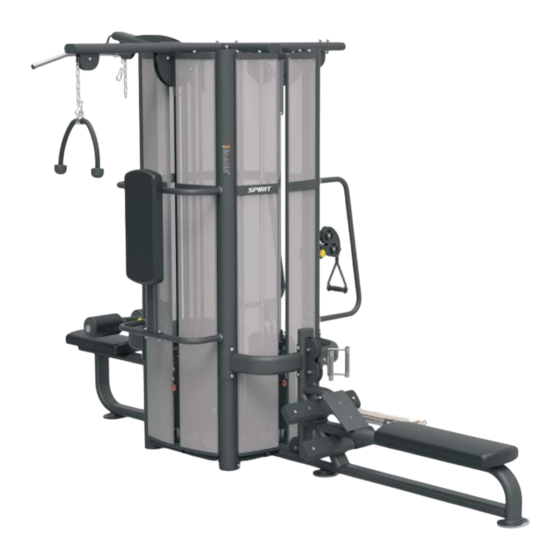

- Page 1 SP-3604 4 STACK MULTI STATION OWNER'S MANUAL...
-
Page 2: Table Of Contents
Table Of Contents Introduction ................. 4 Manufacturer ................4 International Offices ..............4 Precautions ................6 Warning ..................6 Warning Labels and Stickers ............7 Safeguards ..................8 Assembly and Setup ..............9 Product specifications ..............9 Parts list ..................10 Assembly Instructions..............14 Maintenance ................ -
Page 3: Introduction
SPIRIT Series – manufactured by Spirit Fitness SP3604 4 STACK MULTI STATION CHEST PRESS Be sure to read and follow the information and instructions before assembling, using or servicing SPIRIT strength equipment. anufacturer DCMNA 18303 Bothell Everett Hwy. Suite 210... -
Page 5: Warning
SECURING EQUIPMENT The machine has holes in the feet, which allow for ease in anchoring to the floor. Spirit Fitness strongly recommends that to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface. -
Page 7: Warning Labels And Stickers
It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged contact your local dealer or distributor for a replacement. If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away. NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE... -
Page 8: Safeguards
Proper Usage • Do not use any equip ment in any way other than designed or inten ded by the manufacturer. It is imperative that SPIRIT FITNESS e quipment is used properly to avoid injury. •... -
Page 9: Assembly And Setup
If parts are missing, or if you have any operational questions, please call your local Spirit Fitness’s Service department or the distributor whom sold you the product. Please see page 3 for a listing of international corporate offices and locate the office nearest you. -
Page 10: Parts List
Parts List Description Spec Part No. SP-3604-001 Tower Frame SP-3604-002 Floor Frame SP-3604-003 Main Frame SP-3604-004 Pedal Frame SP-3604-005 Pull Frame SP-3604-006 Connection Frame SP-3604-007 Tower Connection Frame SP-3604-008 Top Connection Frame SP-3604-009 Support Frame SP-3604-010 Support Frame SP-3604-011 Rotating Frame... - Page 11 Parts List Description Spec Part No. SP-3604-043 10LB Top Weight SP-3604-044 Spring Pin SP-3604-045 17-hole Weight Selector SP-3604-046 20LB Weight SP-3604-047 C Bracket SP-3604-048 Chain SP-3604-049 Ring SP-3604-050 Inner End Cap SP-3604-051 End Cap SP-3604-052 End Cap SP-3604-053 Guide Rod Fixing Plate...
- Page 12 Parts List Description Spec Part No. Button bolt M10*70 SP-3604-083 Socket Head Bolt M10*120 SP-3604-084 Socket Head Bolt M10*125 SP-3604-085 Button bolt M12*90 SP-3604-086 Button bolt M8*35 SP-3604-087 Button bolt M8*15 SP-3604-088 Inner Haxagon Sunk Head Bolt SP-3604-089 Hexagon Socket Set S with Cone...
- Page 14 STEP 1 Assembly Instructions Description Spec Tower Frame Tower Connection Frame Top Connection Frame Button bolt M10*25 Flat Washer Φ20*Φ10.5*2 Spring Washer *Assemble symmetrically 1cm 2...
- Page 15 STEP 2 Assembly Instructions Description Spec Floor Frame Main Frame Floor Frame Short Floor Frame Socket Head Bolt M10*120 Socket Head Bolt M10*125 Φ20*Φ10.5*2 Flat Washer 1cm 2...
-
Page 16: Assembly Instructions
STEP 3 Assembly Instructions Description Spec Connection Frame Button bolt M10*25 Flat Washer Φ20*Φ10.5*2 Spring Washer 1cm 2... - Page 17 STEP 4 Assembly Instructions Description Spec Pull Frame Top Pulley Frame Button bolt M10*25 Φ20*Φ10.5*2 Flat Washer Spring Washer 1cm 2...
- Page 18 STEP 5 Assembly Instructions Description Spec Pedal Frame Adjustment Frame Sliding Frame Button bolt M10*25 Button bolt M10*55 Button bolt M10*70 Φ20*Φ10.5*2 Flat Washer Spring Washer 1cm 2...
- Page 19 STEP 6 Assembly Instructions Description Spec Support Frame Support Frame Button bolt M10*25 Φ20*Φ10.5*2 Flat Washer Spring Washer 1cm 2...
- Page 20 Assembly Instructions STEP 7 Description Spec Moving Pully Frame Guide Rod 10LB Weight 10LB Top Weight 17-hole Weight Selector 20LB Weight Guide Rod Fixing Plate Weight Pin Guide Rod End Cap Rubber Load-Bearing Cover Button bolt M8*35 Φ16*Φ8.4*1.6 Flat Washer Spring Washer Limiting Plate 1 180*32*40*6...
- Page 21 STEP 8 Assembly Instructions Description Spec 2200 mm Cable 1 8070 mm Cable 2 Cable 3 2300 mm 4700 mm Cable 4 φ114*25.8 Pulley Set φ89*25.8 Pulley Set Cable assembling 1cm 2...
- Page 22 STEP 9 Assembly Instructions Description Spec Handle Frame Back Pad Round Frame Back Pad Frame Aluminium Collar Button bolt M10*35 Button bolt M10*50 Φ20*Φ10.5*2 Flat Washer Spring Washer 1cm 2...
- Page 23 STEP 10 Assembly Instructions Description Spec Shroud Connection Part1 Connection Part 2 Left Shroud Set Right Shroud Set Under Shroud Set 1 Under Shroud Set 2 Cross Flat Head Bolt M6*15 Φ12*Φ6.4*1.6 Flat Washer 1cm 2...
- Page 24 STEP 11 Assembly Instructions Description Spec Back Pad Round Pad Inner End Cap End Cap Seat Pad Seat Pad Back Pull Rope Long Handle Ring Handle Short Handle Leg Band Double Handles Button bolt M10*25 Button bolt M8*35 Inner Haxagon Sunk Head Bolt M6*8 Φ20*Φ10.5*2 Flat Washer...
- Page 25 STEP 11 Assembly Instructions 1cm 2 23-2...
-
Page 26: Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. - Page 27 Owner’s Manual © 2019 All Rights Reserved...
