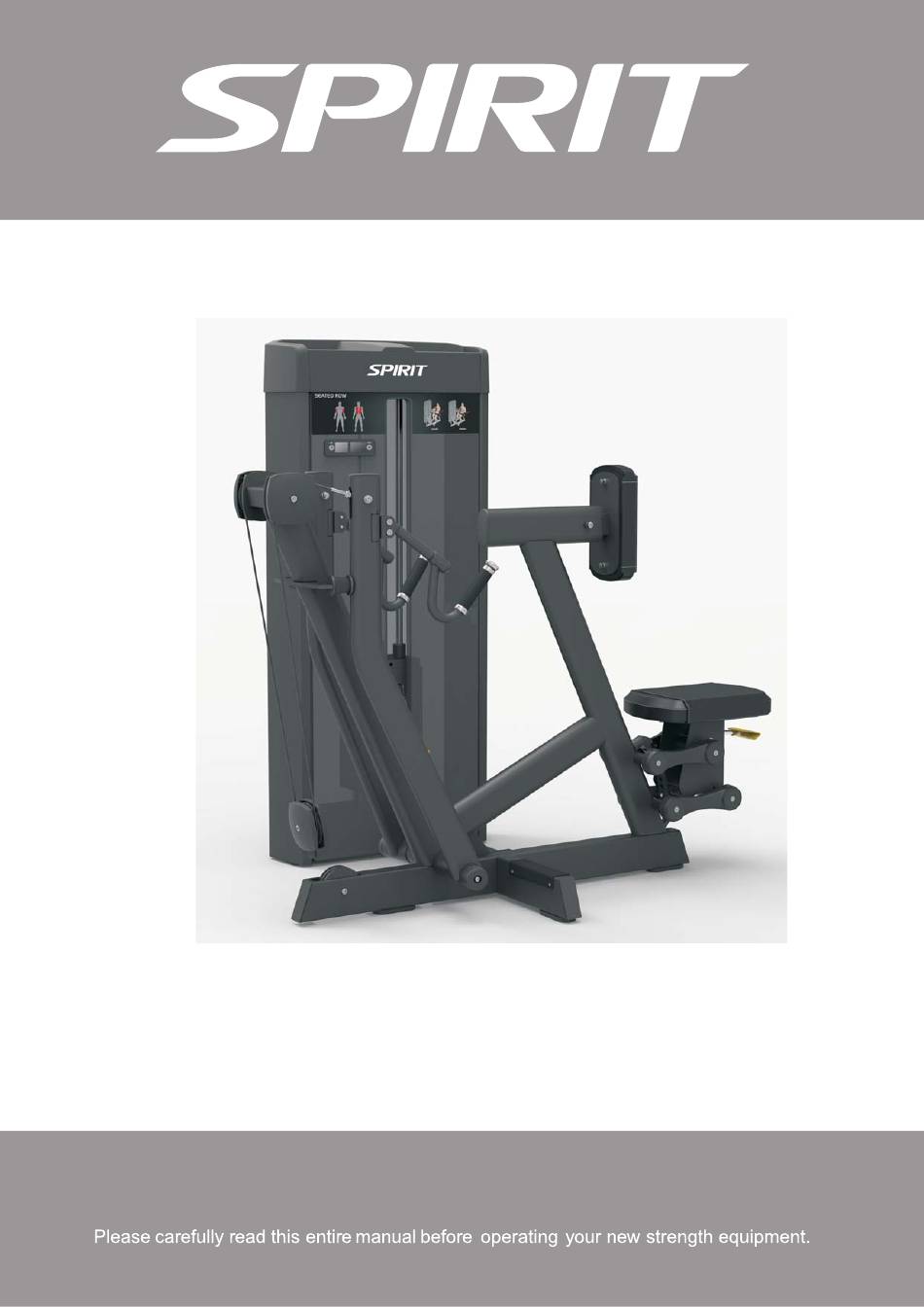

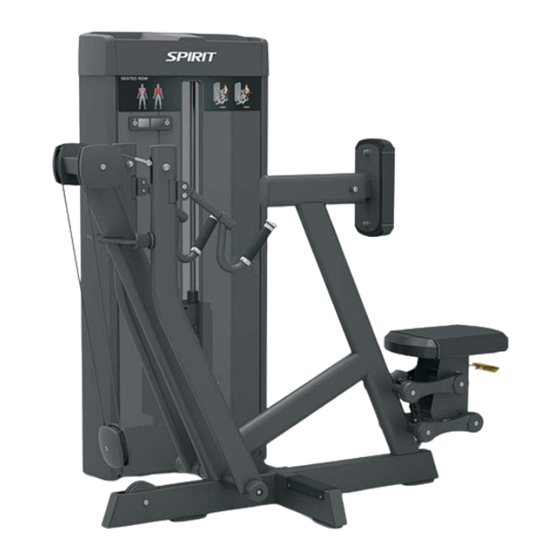

  • Page 1 Seated Row SP-4302 OWNER'S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ................. 3 Manufacturer ................3 International Offices ..............3 Important safety instructions ............4 Precautions ................. 5 Warning ..................5 Warning Labels and communication stickers ........7 Safeguards ..................8 Assembly and Setup ..............9 Product specifications ..............9 Parts list ..................10 Assembly Instructions..............16 Startworkout ................26 Repetition and Time Counter...

  • Page 3: Introduction

    ® SPIRIT Series – SP4302 Seated Row manufactured by Spirit Fitness CHEST PRESS Be sure to read and follow the information and instructions before assembling, using or servicing SPIRIT strength equipment. anufacturer DCMNA 18303 Bothell Everett Hwy. Suite 210 Bothell, WA 98012...
  • Page 6 1590 Training area 1115...

  • Page 7: Warning

    It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged contact your local dealer or distributor for a replacement. If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away. NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE...

  • Page 9: Assembly And Setup

    If parts are missing, or if you have any operational questions, please call your local Spirit Fitness’s Service department or the distributor whom sold you the product. Please see page 3 for a listing of international corporate offices and locate the office nearest you.

  • Page 10: Parts List

    Parts List Description Spec Part No. Doorframe SP-4302-001 Upper shield SP-4302-002 Shield fixed plate SP-4302-003 Guide rod SP-4302-004 Guide rod fixed plate SP-4302-005 Fixed bushing SP-4302-006 Front shield SP-4302-007 Back shield SP-4302-008 Rubber bumper φ64*φ32*φ20*35 SP-4302-009 Rubber bumper φ38*φ21*10 SP-4302-010...
  • Page 11 Parts List...
  • Page 12 Parts List...
  • Page 15 STEP 1 Assembly Instructions Description Specifications Doorframe Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Main Frame Connection Frame Cable Set 2 Pulley Set Socket Head Inner Hexagon Bolt M10*35 Socket Head Inner Hexagon Bolt M10*50 Spring Washer Flat Washer Φ20*Φ10.5*2 1cm 2...
  • Page 16 STEP 2 Assembly Instructions Description Specifications Bushing Socket Head Inner Hexagon Bolt M8*30 Socket Head Inner Hexagon Bolt M10*35 Spring Washer Spring Washer Flat Washer Φ16*Φ8.4*1.6 Flat Washer Φ20*Φ10.5*2 Back Pad Seat Pad Seat pad frame Adjustment frame Spring Connecting spindle Connecting spindle 1 Adjustment Rod Adjustment column...

  • Page 17: Assembly Instructions

    STEP 2 Assembly Instructions 1cm 2 16-2...
  • Page 18 Assembly Instructions STEP 3 Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Pulley sets φ89*32 Selector pin Inner Hexagon Socket Head Bolt M8*20 Inner Hexagon Socket Head Bolt M10*55 Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer...
  • Page 19 STEP 4 Assembly Instructions Description Specifications Upper shield Shield fixed plate Fixed bushing Front shield Back shield Cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6 1cm 2...

  • Page 21: Repetition And Time Counter

    Repetition and Time Counter A battery-operated console is available for use on SP-43 Series Selectorized Strength Equipment. The console tracks workout time and number of repetitions per set. Repetition Counter Time Counter This counter is powered by 2 pcs of AA batteries. (Alkaline Battery Recommended) Troubleshooting PROBLEM...
  • Page 22 t p i Dry Reed Pipe Connection Wire...

  • Page 23: Maintenance

    All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording.
