Seav R BW 2224 Series Manual

S -
INGLE CHANNEL RADIO RECEIVER
RxBW 2224
The RxBW 2224 single-channel radio receiver allows the im-
plementation of remote controls of electrical and electronic
equipment via Smartphone and/or Seav radio controls.
- Mod. RSBW 2224 Narrow band : Wifi + BlueTooth + 433 MHz
- Mod. RHBW 2224 Narrow band : Wifi + BlueTooth + 868 MHz
Technical data :
- Work frequency :
- Power supply :
- Max consumption :
- Op. transmitters : 12-18-32 Fixed bits, 66-80 bit Rolling Code
- Bluetooth/Wifi commands from Smatphone :
- Total number of remote controls /Smartphone Bluetooth :
- N. Smartphone WiFi :
- N. 1 OUT for control relay :
- N. 1 IN for ignaling/ alarm :
- Operating temperature :
- Dimensions :
- Radio controls range in free space :
- Bluetooth range in free space :
- Degree of protection :
Terminal board connections CN1 :
1: Power supply 12-24VAC-DC
2: Power supply 0V
3: Contact input " Input "
4: Contact input " Input "
5: Contact output " CH1 "
6: Contact output " CH1 "
Receiver installation :
To obtain optimal operation between transmitter and receiver, it
is advisable to choose the installation site carefully. The range
is not only linked to the technical characteristics of the device,
but also varies by the radioelectric conditions of the place. The
receiver is equipped with a tuned antenna.
The antenna must be positioned outside in clearly visible points
and away from metal structures.
It is not possible to install two receivers that do not re-
spect at least a distance of 5 meters between them.
Power supply selection:
GB

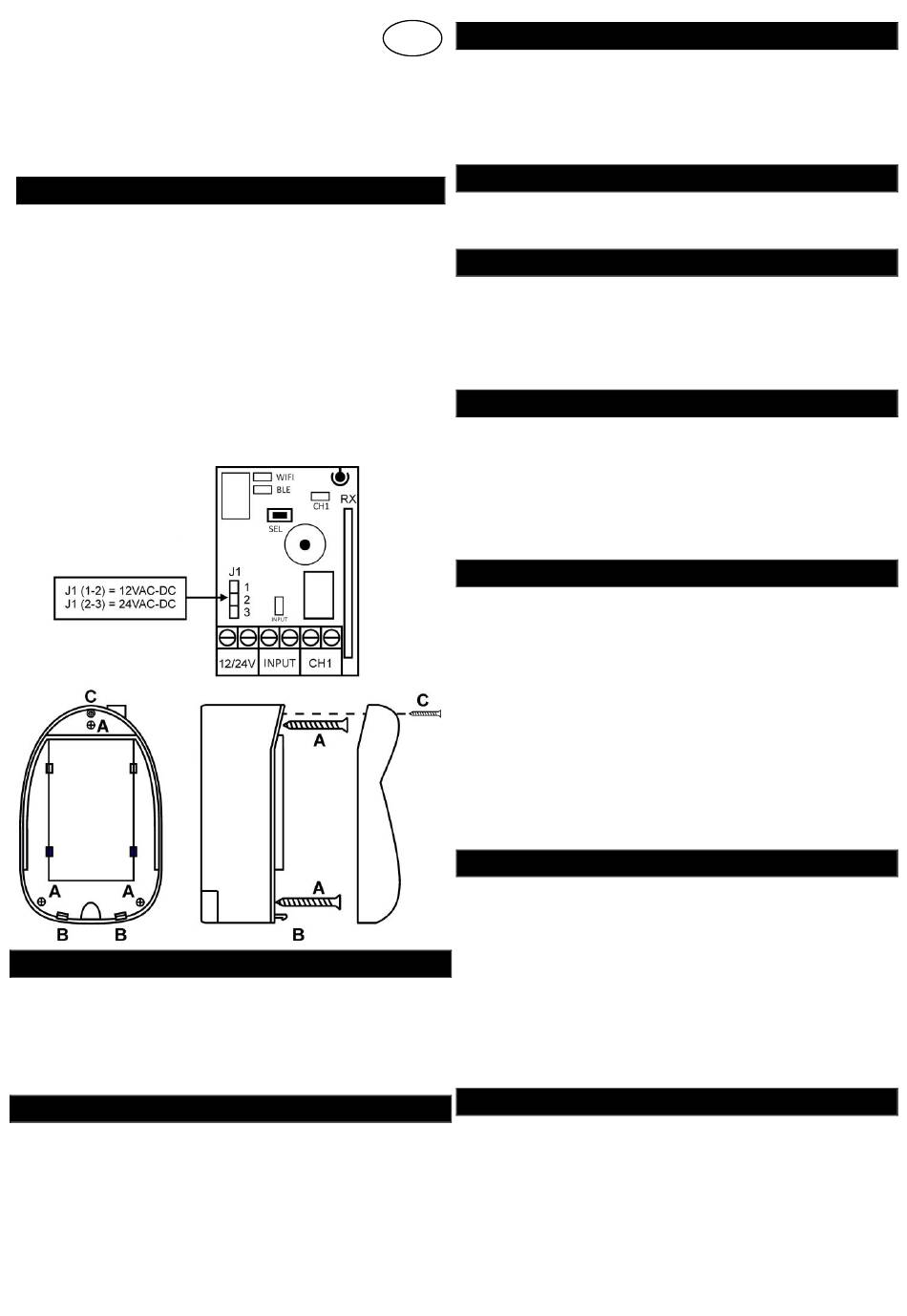

By selecting Jumper J1, it is possible to select the power supply
voltage:
Jumper J1: power supply selection 12/24VAC-DC.
Pos. 1-2 = 12VAC-DC.
Pos. 2-3 = 24VAC-DC (default).
CH1 Output Operation :
The receiver is able to manage the CH1 output in Monostable
see model
operating mode.
12-24VAC-DC
5W
Input channel operation ( solo WiFi ) :
IOS/Android
The receiver is able to manage the "INPUT" channel only in
330 Max
WiFi mode, through the use of the "BeAll" application for con-
No limits
necting a remote signal/alarm. The lighting of the INPUT LED
30VDC 1°
will indicate the activation of the input relating to the connected
Free contact
device.
-10÷55°C
53x82x40mm
Sound signals via Buzzer :
50-100m
10-80m
N° 1 SHORT BEEP = Confirm Storage/Connection.
IP54
N° 2 SHORT BEEP = Receiver ready for operation.
N° 3 SHORT BEEP =
N° 1 LONG BEEP = Bluetooth disconnection.
N° 2 LONG BEEP = Radio Controls/Smartphone deletion.
N° 3 LONG BEEP = Reset.
Visual signals via Led :
INPUT " Off " = Input not active.
INPUT " On " = Input not active.
CH1 " Off " = No radio controls/smartphones stored.
CH1 " Flashing Slow " = Radio controls storage.
CH1 " Flashing Fast " = BLE Smartphone storage.
CH1 " On " = Radio control/Smartphone stored.
BLE " Flashing " = Bluetooth not connected.
BLE " On " = Bluetooth connected.
WiFi " Flashing Slow " = WiFi waiting for Server connection.
WiFi " Flashing Fast " = WiFi waiting for Internet connection.
WiFi " On " = WiFi connected to the Server.
Rule of the 1st stored radio control :
The following rule applies when programming radio controls: if
the first radio control to be memorized is of the Rolling Code
Plus type, the control unit will only accept Rolling Code Plus
radio controls, thus guaranteeing very high anti-cloning security;
if the first radio control to be memorized is of the Rolling Code
type, the control unit will only accept Rolling Code and Rolling
Code Plus radio controls, thus guaranteeing good anti-cloning
security. If instead the first radio control to be memorized is of
the fixed code type, the receiver will accept both fixed code
radio controls and Rolling Code and Rolling Code Plus radio
controls without managing the anti-cloning algorithm.
Programmazione RCD Stand Alone :
The programming of the radio controls to be associated is of the
self-learning type and is carried out with the antenna not con-
nected in the following way: press the SEL button once, the
CH1 Led will start to flash, then send the chosen code with the
radio control, at a distance of a few metres, when the CH1 Led
remains lit steadily, the receiver will emit a short confirmation
beep, signaling that the programming of the radio control on the
CH1
Radio control/Smartphone already present.
channel has been completed.
Rev. 1.0 18/04/2024
