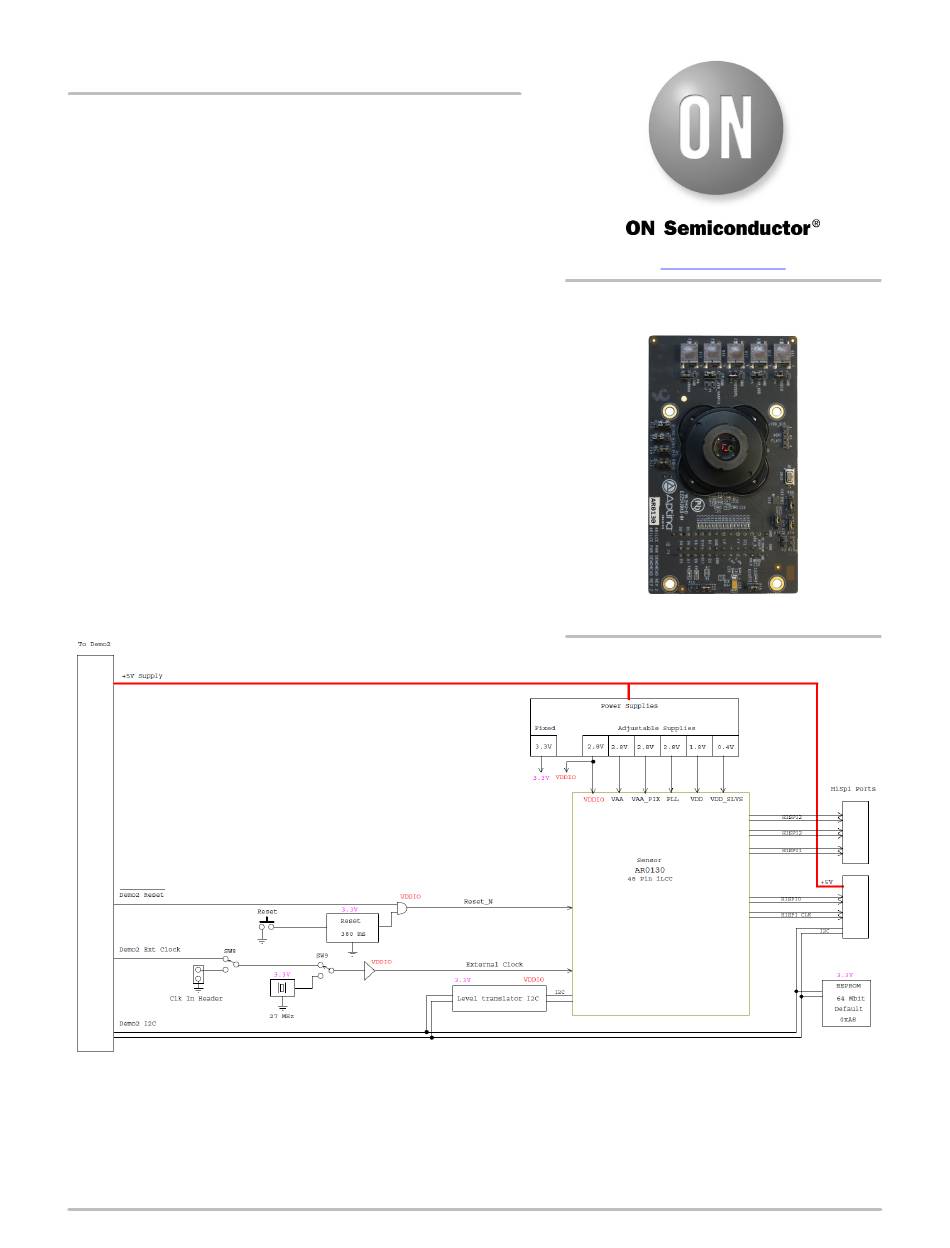

AR0130CSSC00SPCAH-S115-GEVB
AR0130CS Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 2X Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2015
November, 2015 − Rev. 0
Figure 2. Block Diagram of AR0130CSSC00SPCAH−S115−GEVB
EVAL BOARD USER'S MANUAL

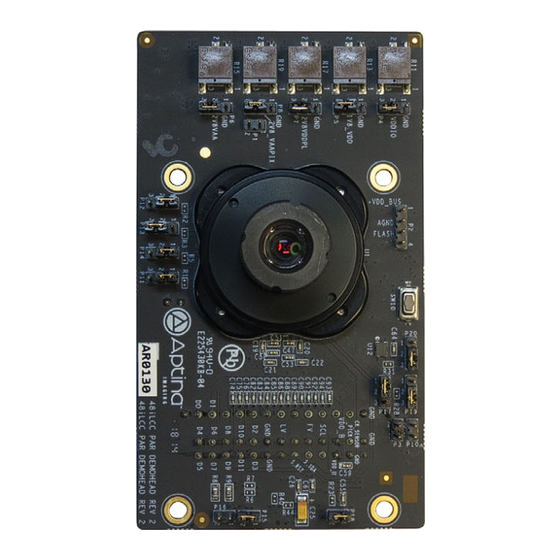

Figure 1. AR0130CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2333/D
Advertisement
Related Manuals for ON Semiconductor AR0130CS
Summary of Contents for ON Semiconductor AR0130CS
- Page 1 EVAL BOARD USER’S MANUAL The evaluation boards are designed to demonstrate the features of image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
- Page 2 AR0130CSSC00SPCAH−S115−GEVB Top View +2V8_VAAPIX P8 +2V8_VDDPLL P7 +VDDIO P4 +2V8_VAA P6 +VPP P1 +1V8_VDD P5 STANDBY P12 Output Enable P13 FLASH P2 SADDR P14 TEST P11 RESET Switch SW10 CLK_SELECT P20 S_CLK P19 SHUTTER P3 EEPROM P15, P16 ON_LED P18 Figure 3.
- Page 3 AR0130CSSC00SPCAH−S115−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
- Page 4 RESET AR0130 Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has a similar and J4 of the headboard. The four mounting holes secure the 26-pin connector and 13-pin connector which mate with J3 baseboard and the headboard with spacers and screws.
-
Page 5: Additional Information
