AR0134CSSC00SPCAH-GEVB
AR0134CS Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant

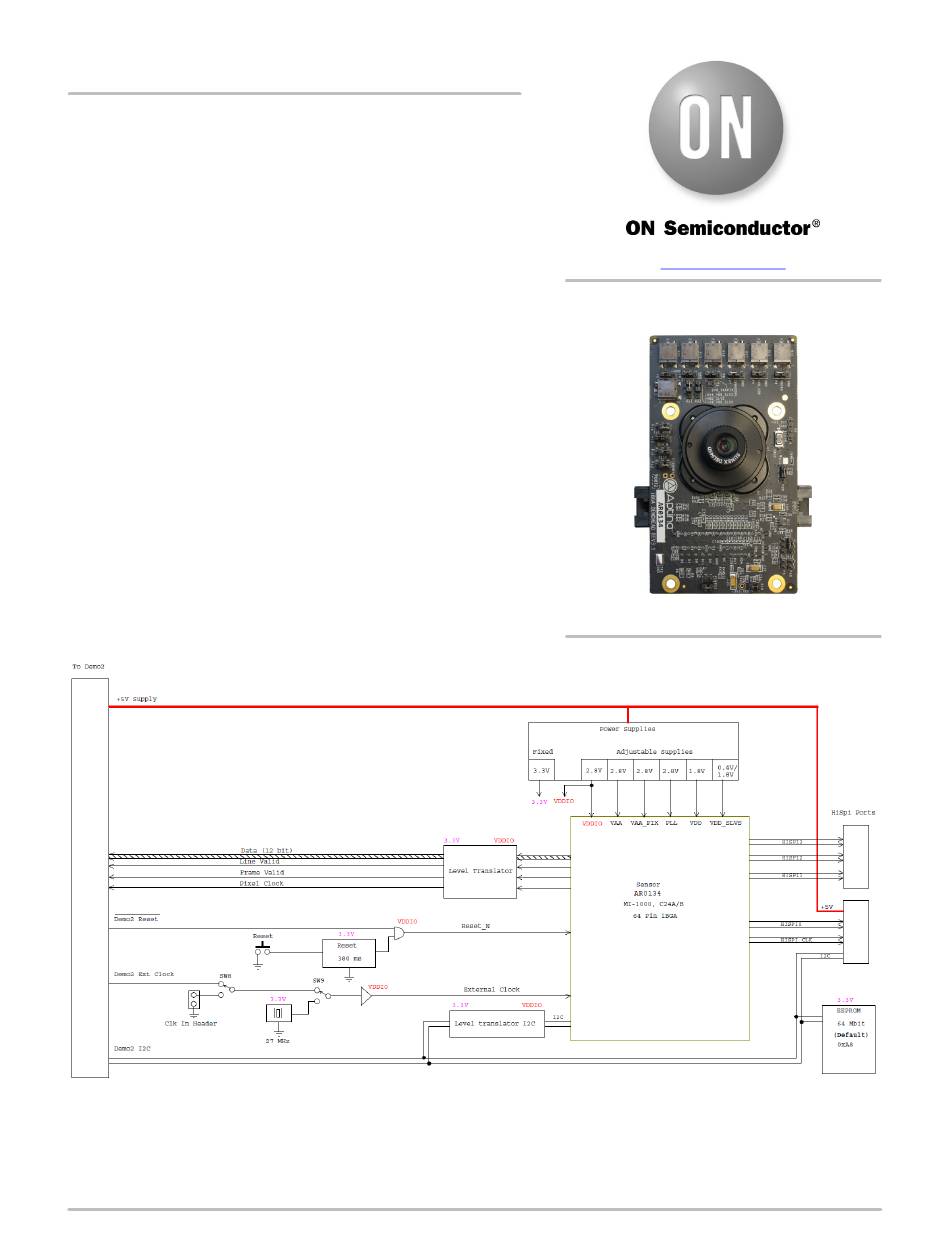

Block Diagram
© Semiconductor Components Industries, LLC, 2016
January, 2016 − Rev. 0
Figure 2. Block Diagram of AR0134CSSC00SPCAH−GEVB
EVAL BOARD USER'S MANUAL

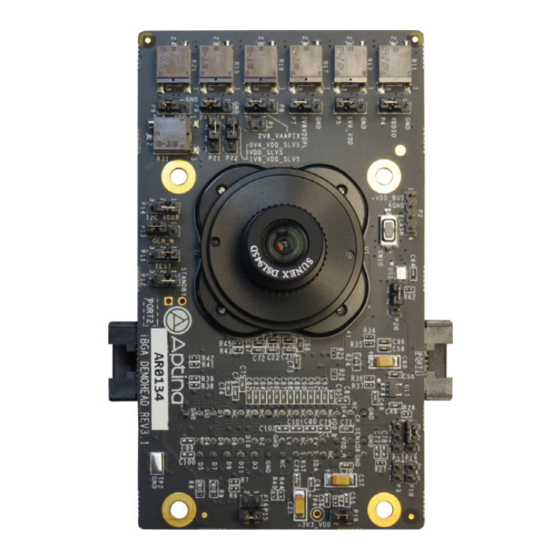

Figure 1. AR0134CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2360/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AR0134CSSC00SPCAH-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor AR0134CSSC00SPCAH-GEVB

  • Page 1 EVAL BOARD USER’S MANUAL The evaluation boards are designed to demonstrate the features of image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AR0134CSSC00SPCAH−GEVB Top View +2V8_VAAPIX P8 +2V8_VAA P6 +2V8_VDDPLL P7 +0V4_VDD_SLVS P9 +VDDIO P4 +1V8_VDD P5 +1V8_VDD_SLVS P21 +VPP P1 +1V8_VDD_SLVS Select P22 SADDR P14 FLASH P2 OEN_N P13 RESET Switch SW10 TEST P11 STANDBY P12 MCLK_IN P20 TRIGGER P17 MCLK_EN P19 EEPROM P15, P16 ON_LED P18 Figure 3.
  • Page 3 AR0134CSSC00SPCAH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 When Pushed, 240 ms Reset Signal will be Sent to AR0134CS Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has a similar and J4 of the headboard. The four mounting holes secure the 26-pin connector and 13-pin connector which mate with J3 baseboard and the headboard with spacers and screws.
  • Page 5: Technical Support
