ON Semiconductor AR0136-iBGA63 User Manual

AR0136
AR0136 - iBGA63
Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the
features of ON Semiconductor image sensors products. This
headboard is intended to plug directly into the Demo3
system. Test points and jumpers on the board provide access
to the clock, I/Os and other miscellaneous signals.
Features
•
Clock Input
Default − 27 MHz Crystal Oscillator
♦
Optional Demo3 Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
4 Lane HiSPI Interface
•
Parallel Interface
•
These Devices are Pb−Free and are RoHS Compliant
© Semiconductor Components Industries, LLC, 2018
August, 2018 − Rev. 0

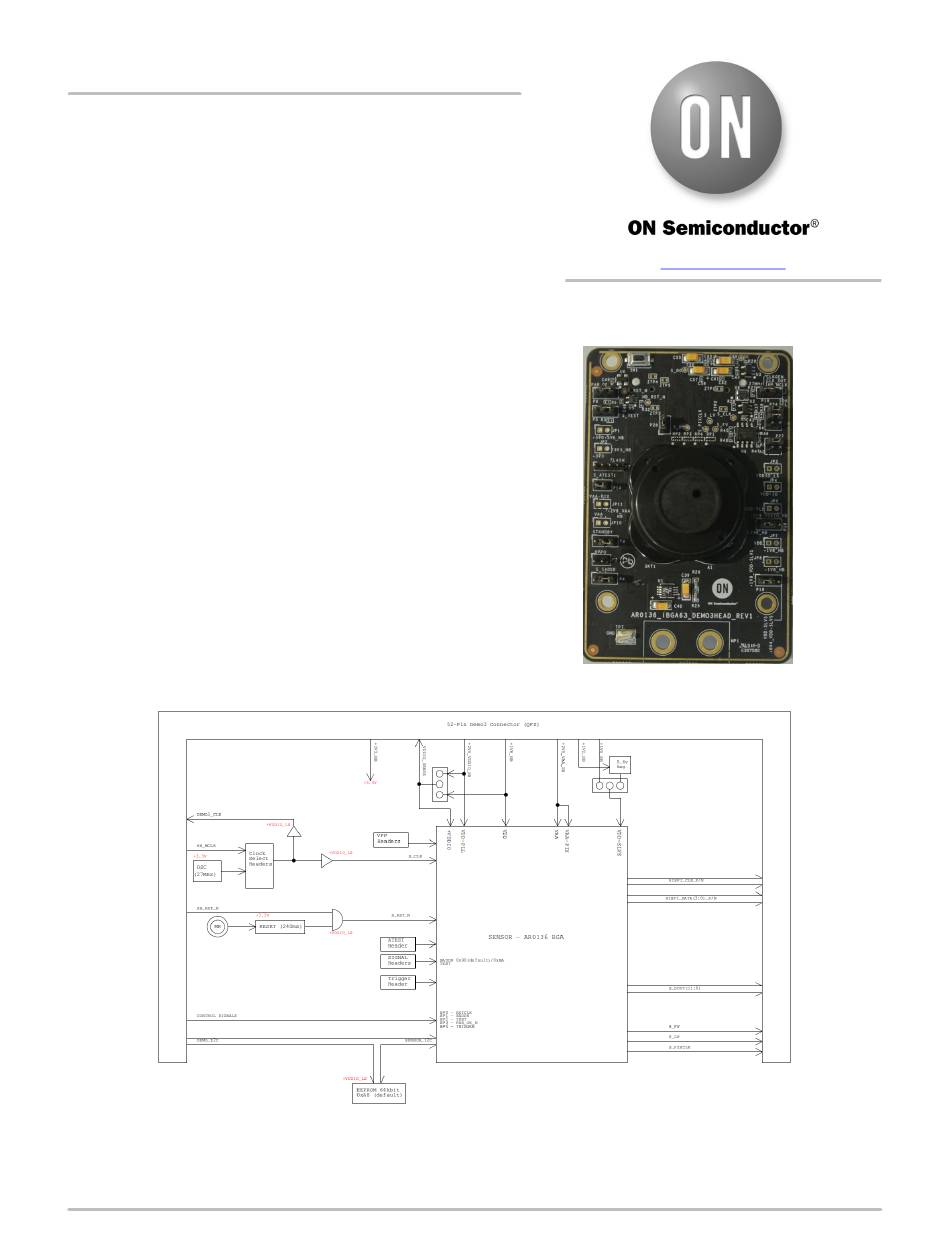

Figure 2. Block Diagram of AR0136 Evaluation Board
EVAL BOARD USER'S MANUAL

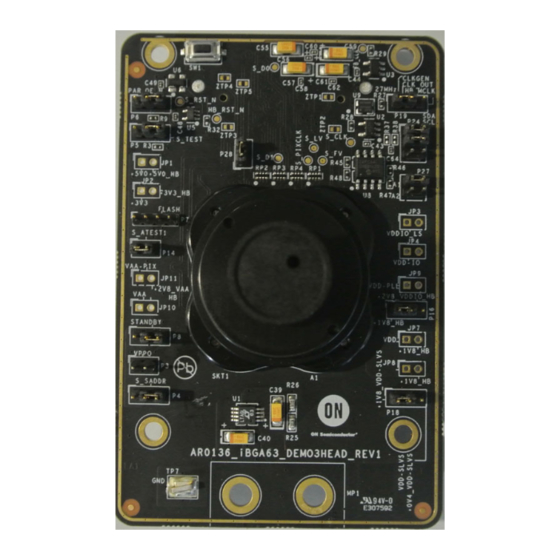

Figure 1. AR0136 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2576/D
