Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHUN-10-WAL

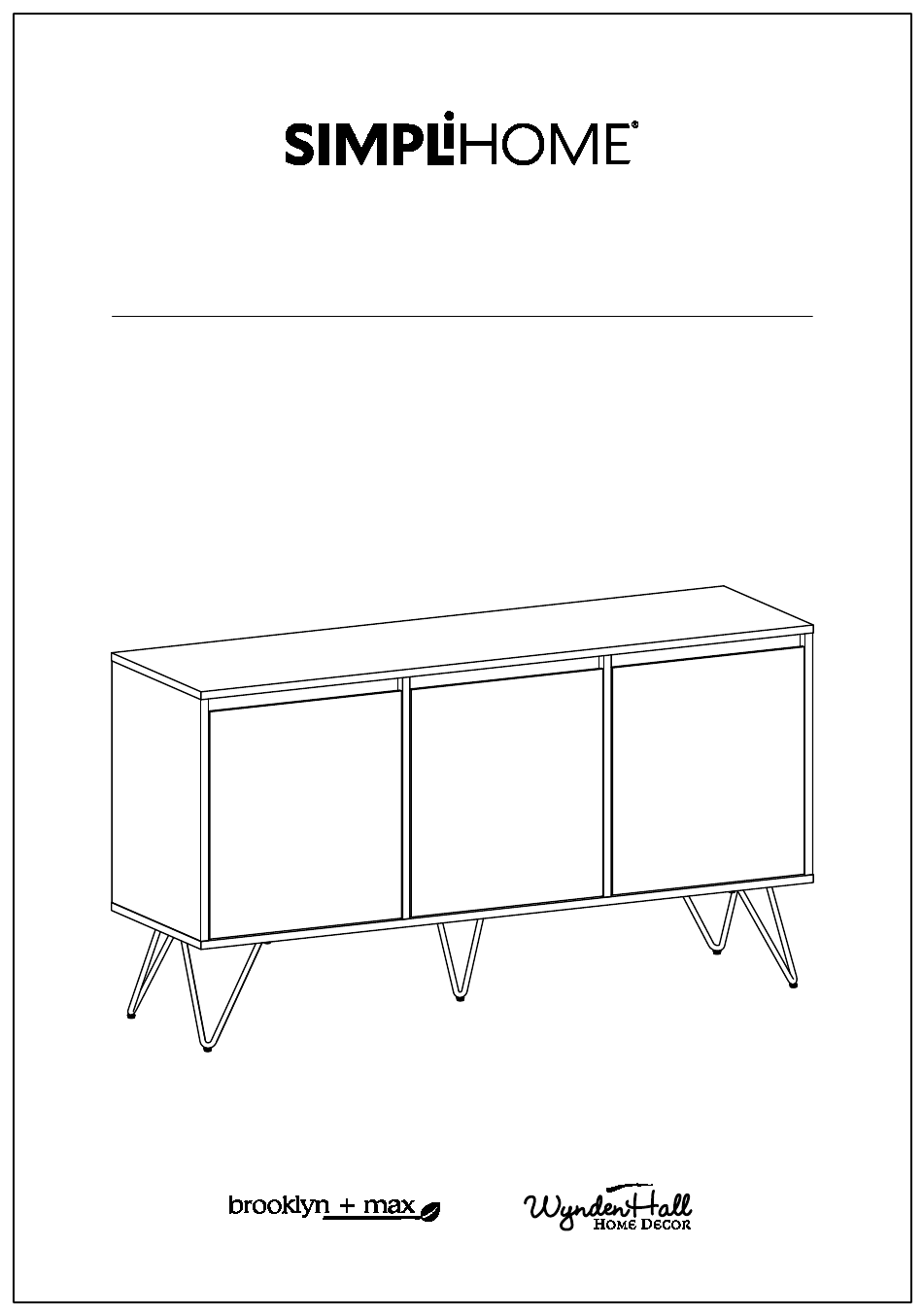

- Page 1 Hunter / Moreno / Diaz Sideboard Buffet Model # AXCHUN-10-WAL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCHUN-10-WAL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 RIGHT DOOR SHELF LEFT DOOR QTY 2 QTY 3 QTY 1 RIGHT BACK PANEL MIDDLE BACK PANEL LEFT BACK PANEL... - Page 8 Pre-Assembly Information Model # AXCHUN-10-WAL Hardware Description ALLEN KEY SCREW WOOD DOWEL M6 X 30mm ALLEN KEY Ø8 X 30mm QTY 24 QTY 1 QTY 8 PHILLIPS SCREW ADJUSTABLE HINGE MAGNET AND PLATE M3 X 15mm Ø35 QTY 3 SETS QTY 12 QTY 6 PHILLIPS SCREW...
- Page 9 Components - Key Diagram Model # AXCHUN-10-WAL...
- Page 10 Assembly Model # AXCHUN-10-WAL Step 1 1. Insert two Dowels 2 into guide holes on each Side BL , BR and Divider DL , DR . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCHUN-10-WAL Step 2 1. Align holes on Dividers DL , DR with pre-drilled on Top A and attach Dividers DL , DR to Top A . 2. Use three Allen Key Screws 1 to attach each Divider DL , DR through guide holes. 3.
- Page 12 Assembly Model # AXCHUN-10-WAL Step 3 1. Align Wood Dowels with guide holes on Top A and attach Sides BL , BR to Top A . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes. 3.
- Page 13 Assembly Model # AXCHUN-10-WAL Step 4 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Sides BL , BR and Dividers DL , DR to Bottom Shelf C . 2. Use three Allen Key Screws 1 to attach each Side BL , BR and Dividers DL , DR through guide holes.
- Page 14 Assembly Model # AXCHUN-10-WAL Step 5 1. Attach Legs I , J to Bottom Shelf C . 2. Use Allen Key Bolts 10 , Lock Washers 11 and Washers 12 to secure Legs I , J and Bottom Shelf C . 3.
- Page 15 Assembly Model # AXCHUN-10-WAL Step 6 Note: Warning Label 1. Attach the Back Panels GL , GR , H to back frame using Phillips Screws Round Head 8 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # AXCHUN-10-WAL Step 7 1. Attach Adjustable Hinges 6 to Doors EL , ER using Phillips Screws 7 into pre-drilled holes on Doors EL , ER . 2. Attach Adjustable Hinges 6 on Doors EL , ER to Sides BL , BR and Right Divider DR using Phillips Screws 7 into pre-drilled holes on Sides BL ,BR and Right Divider DR .
-
Page 17: Important Note
Assembly Model # AXCHUN-10-WAL Step 8 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 18 Assembly Model # AXCHUN-10-WAL Step 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 4 to bottom corner of Doors EL , ER using Phillips Screws 5 into pre-drilled holes on Doors EL , ER . 2.
- Page 19 Assembly Model # AXCHUN-10-WAL Step 10 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 9 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 9 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
