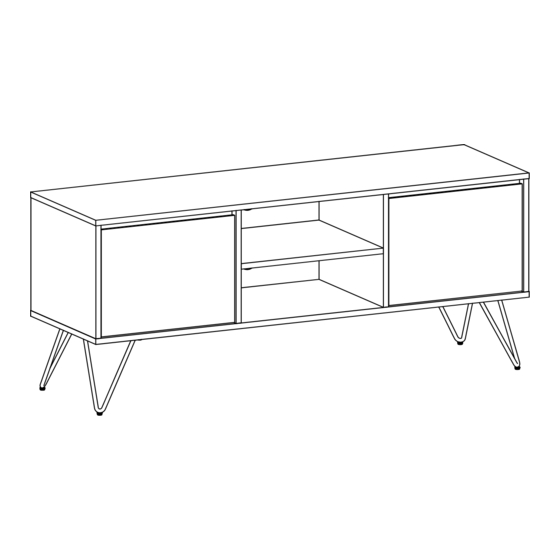

- Page 1 Hunter / Moreno / Diaz TV Media Stand Model # AXCHUN-08-OAK...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Maximum Load 25 Lbs
WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over. - Page 9 Pre-Assembly Information Model # AXCHUN-08-OAK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 Warning Label LEFT DOOR RIGHT DOOR BACK PANEL QTY 1 QTY 1 QTY 1 SHELF CENTER SHELF...
- Page 10 Pre-Assembly Information Model # AXCHUN-08-OAK Hardware Description CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL M6 X 30mm CAM LOCK Ø8 X 30mm QTY 24 QTY 6 SETS QTY 4 PHILLIPS SCREW MAGNET AND PLATE ALLEN KEY M3 X 15mm QTY 2 SETS QTY 1 QTY 8...
- Page 11 Components - Key Diagram Model # AXCHUN-08-OAK...
- Page 12 Assembly Model # AXCHUN-08-OAK Step 1 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Divider DL ,DR. 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 3 into guide holes on each Side BL ,BR . 4.
- Page 13 Assembly Model # AXCHUN-08-OAK Step 2 1. Align Cam Lock Pins with guide holes on Centre Shelf G and attach Dividers DL , DR to Centre Shelf G . 2. Insert six Cam Locks 2 into guide holes on Centre Shelf G . 3.
- Page 14 Assembly Model # AXCHUN-08-OAK Step 3 1. Use three Allen Key Screws 1 to attach each Divider DL , DR through guide holes from Bottom Shelf C to pre-drilled holes of Dividers DL , DR . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCHUN-08-OAK Step 4 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Sides BL , BR to Bottom Shelf C . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes. 3.
- Page 16 Assembly Model # AXCHUN-08-OAK Step 5 1. Align Wood Dowels with guide holes on Top A and attach parts BL , BR , DL , DR to Top A . 2. Use three Allen Key Screws 1 to attach each part BL , BR , DL , DR through guide holes.
- Page 17 Assembly Model # AXCHUN-08-OAK Step 6 1. Attach Legs I to Bottom Shelf C . 2. Use twelve Allen Key Bolts 11 , twelve Lock Washers 12 and twelve Washers 13 to secure Legs I and Bottom Shelf C (three Bolts, three Lock Washers and three Washers on each Leg).
- Page 18 Assembly Model # AXCHUN-08-OAK Step 7 Note: Warning Label 1. Attach the Back Panel E to back frame using Phillips Screws Round Head 9 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCHUN-08-OAK Step 8 1. Attach Adjustable Hinges 7 to Doors FL , FR using Phillips Screws 8 into pre-drilled holes on Doors FL , FR . 2. Attach Adjustable Hinges 7 on Doors FL , FR to Sides BL , BR using Phillips Screws 8 into pre-drilled holes on Sides BL ,BR.
-
Page 20: Important Note
Assembly Model # AXCHUN-08-OAK Step 9 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 21 Assembly Model # AXCHUN-08-OAK Step 10 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 5 to bottom corner of Doors FL , FR using Phillips Screws 6 into pre-drilled holes on Doors FL , FR . 2.
- Page 22 Assembly Model # AXCHUN-08-OAK Step 11 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf H in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf H as a tipping restraint.
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
