Summary of Contents for Bluebird VX500

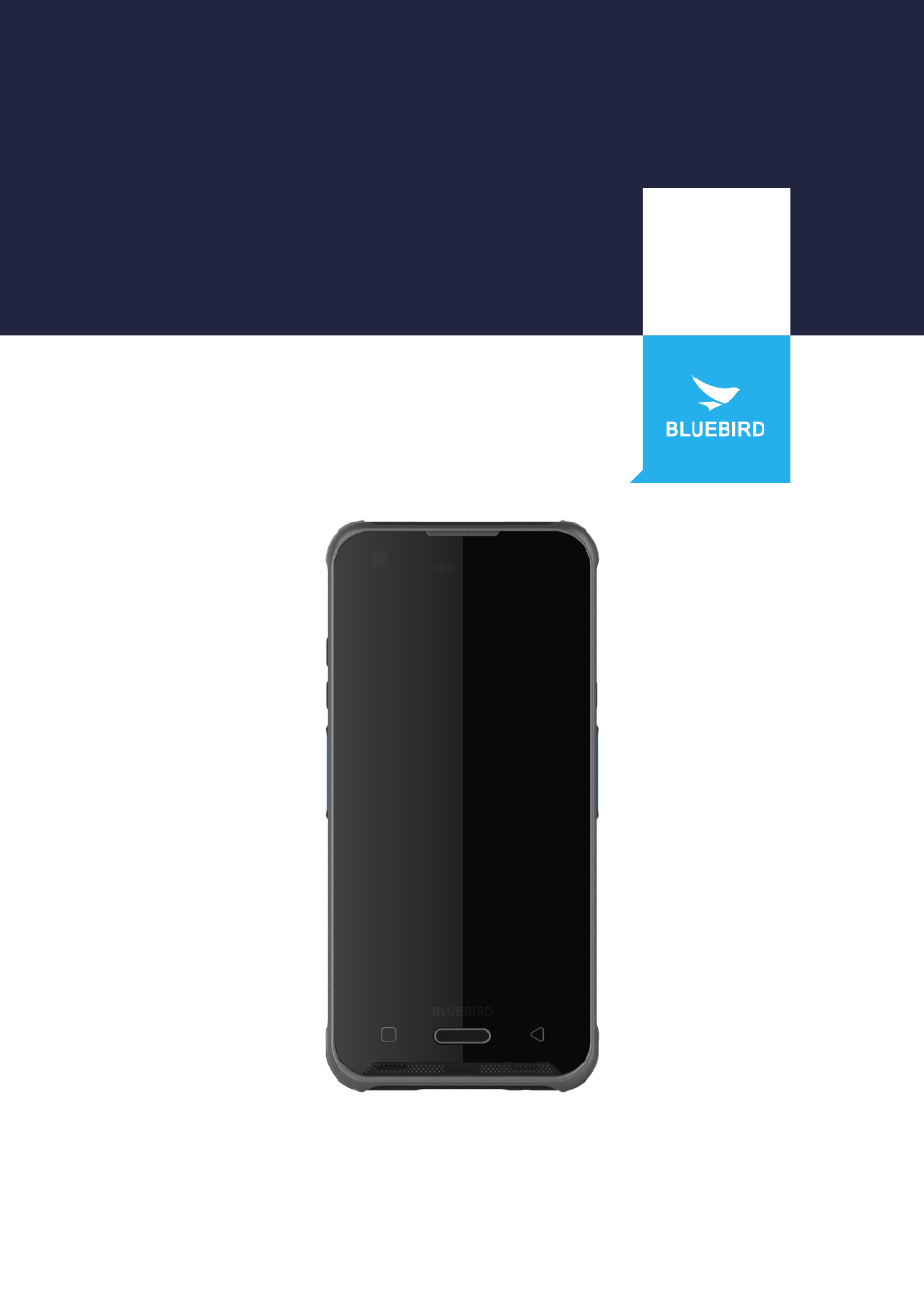

- Page 1 VX500 Enterprise-Value Xtreme Mobile Computer QUICK GUIDE...
-
Page 2: Registered Trademark
BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. -
Page 3: Safety Information
1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Caution Indicates situations that could cause damage to your device or other equipment. Note Indicates additional information that can help you get the most out of the device. -
Page 4: Frequency Interference
Safety Information 1.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •... -
Page 5: Package Contents
2 Overview 2.1 Package Contents The package includes: VX500 device Battery The illustrations may differ from your actual items. -
Page 6: Your Device
Overview 2.2 Your Device 2.2.1 Front Light sensor Receiver Proximity sensor Front Camera Charging / Notification LED SIM card slot Volume up button Volume down button Power Button Scan button Scan button Touch screen Menu button Back button Microphone Home button 2.2.2 Back Rear camera Camera flash... - Page 7 Overview 2.2.3 Bottom and Top Microphone Docking connector Interface connector Headset jack Emergency button Microphone * Barcode Type Microphone Docking connector Headset jack Interface connector Barcode scanner Microphone...
-
Page 8: Getting Started
3 Getting Started 3.1 Installing the Cards 3.1.1 Inserting a Micro SIM card Remove the card slot on the right side of your device. Insert a micro SIM cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device. -
Page 9: Inserting A Microsd Card
Getting Started 3.1.2 Inserting a Micro SD Card Remove the card slot on the right side of your device. Insert a micro SD cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device. 3.1.3 Removing the Cards Remove the card slot on the right side of your device. -
Page 10: Installing The Battery
Getting Started 3.2 Battery 3.2.1 Installing the Battery 1 Place the back of the device facing up. 2 Insert the bottom of the battery into the device. 3 Press the top of the battery to fully insert the battery in the device. It will click when it is properly inserted. -
Page 11: Removing The Battery
Getting Started 3.2.2 Removing the Battery While holding down the battery release latch on both ends of the battery, pull the battery out. Before removing the battery, turn off the power. Failure to do so it may cause damage to the device. 3.2.3 Charging the Battery 1 Plug the C-type end of the charger into the multi-purpose jack on the buttom of the device. -
Page 12: Turning The Device On Or Off
4 Basics 4.1 Turning the Device On or Off 4.1.1 Turning the Device On Press and hold the Power button for a few seconds. 4.1.2 Turning the Device Off Press and hold the Power button for a few seconds. Tap Power off. •... -
Page 13: Using The Touch Screen
Basic 4.2 Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom Zoom in or out in. -
Page 14: Using The Home Screen
Basic 4.3 Using the Home Screen The Home screen is the starting point for all apps and features. It displays icons, shortcuts, and widgets for apps. Drag upward from the bottom of the screen. Applications will be displayed on the screen. To view other pages, swipe left or right. -
Page 15: Connecting To A Wi-Fi Network
Basic 4.4 Connecting to a Wi-Fi Network Connecting to a Wi-Fi network is an easy way of accessing the Internet. When you are out, you can connect to Wi-Fi networks in public places. On the Home screen, tap > Wi-Fi. Make sure to turn Wi-Fi on. -
Page 16: Device Specification
5 Device Specification Physical Characteristics Dimensions (W x H x D) 158.26 x 75.8 x 14.9 mm Weight 246g included battery Display 5.0" HD (1280 x 720), TFT-IPS Imager Window Corning Gorilla Glass 5 Capacitive multi-touch / Stylus Touchpanel Glove, Wet Backlight LED backlight User replaceable Battery... -
Page 17: Performance Characteristics
Device Specification Performance Characteristics 2.2 GHz Octa Core Processor Android 10 with GMS Operating System upgradeable to Android 14 4GB RAM / 64GB Flash (UFS) Memory 4GB RAM / 32GB Flash (UFS) (Optional-TBD) User Environment Characteristics Operating Temp -20°C to 55°C / -4°F to 131°F Storage Temp -30°C to +70°C / -22°F to +158°F Humidity... -
Page 18: Communication Options
Device Specification Communication Options WWAN Radio WCDMA/LTE (Optional) WLAN Radio 802.11 a/b/g/n/ac/d/h/i/k/r/w IPv4, IPv6, 2x2 MU-MIMO 5GHz: 802.11a/n/ac — up to 866.7 Mbps WLAN Data Rates 2.4GHz: 802.11b/g/n — up to 300 Mbps WPAN Radio Bluetooth V5.0 BLE, Class 2 Accessories - 1 or 4 slot charging cradle (Includes a bay for Spare Battery Charging.) -
Page 19: Troubleshooting
You can contact your local sales representative or you can send the device via a delivery service to Bluebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost. -
Page 20: Warranty And Support
• We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. • If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service. - Page 21 Warranty and Support Charged services • In the following cases, it will be charged when requesting for after-sales service. –– Service request due to inappropriate use of the device by the customer –– Loss of PIN number –– Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) •...
-
Page 22: Warranty Certificate
Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect. - Page 23 (GMT Time: +9 Hours) The center is closed on Saturdays, Sundays, and Korean national holidays. Customer Service Center #1103, Gplus Kolon Digital Tower 11F, Digital-ro 26-gil 123, Guro-gu, Seoul, Republic of Korea(08390) Bluebird constantly strives to bring utmost satisfaction to all our customers.
