Memorex MX-SB270 Operation Manual

Memorex MX-SB270 Operation Manual

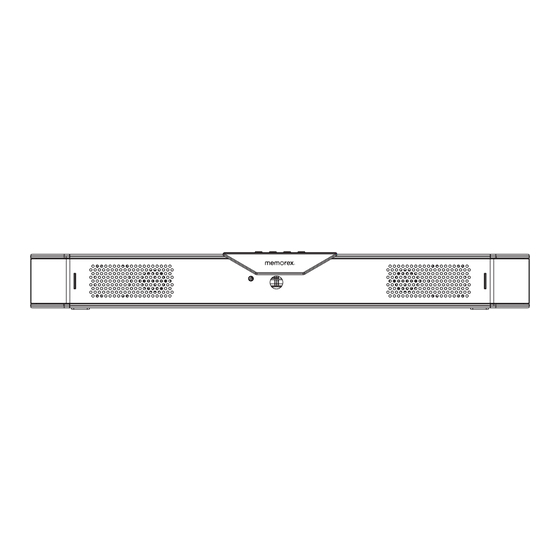

27.5-inch bluetooth soundbar

Advertisement

Quick Links

27.5-inch Bluetooth Soundbar
MX-SB270
MODEL
OPERATION MANUAL
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-SB270 and is the answer not in the manual?

Questions and answers

Summary of Contents for Memorex MX-SB270

  • Page 1 27.5-inch Bluetooth Soundbar MX-SB270 MODEL OPERATION MANUAL ENGLISH...
  • Page 2: Special Notes

    SPECIAL NOTES FOR YOUR RECORDS CAUTION For your assistance in reporting this unit in RISK OF ELECTRIC case of loss or theft, please record below the SHOCK DO NOT OPEN model number and serial number which are CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE located at the bottom of the unit.
  • Page 3: Safety Instruction

    Safety Instruction 12. Severe weather Before using the unit, be sure to read all operating instructions carefully. Please note that these are general In extreme weather such as lightning storm, precautions and may not pertain to your unit. hurricane, unplug it from the wall outlet and disconnect the antenna or cable system.
  • Page 4: Location Of Control

    Location of Control Top View 1. POWER/Play/Pause Button 2. Vol+/Next Button 3. Vol-/Prev Button 4. MODE Button 5. HDMI ARC Jack 6. Optical Jack 7. Aux Jack 8. DC In Jack VOL+ VOL- MODE Rear View...
  • Page 5: Remote Control

    Remote Control Unpair Mute VOL+ VOL- 1. POWER BUTTON 6. Next 2. Previous 7. PLAY/ PAUSE 3. Unpair 8. EQ 4. VOL- 9. Mute 5. Mode 10. VOL+...
  • Page 6: Remote Control Battery Installation

    REMOTE CONTROL BATTERY INSTALLATION 1. Slide and lift the battery door. 2. Install 2 (two) AAA size batteries (not included)into the battery compartment as indicated by the polarity markings. 3. Close the battery door. 1. Use only the size and type of battery specified. 2.
  • Page 7: Placement And Mounting

    PLACEMENT AND MOUNTING Placing the device on table - Ventilation When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from the Sound Bar could produce a potential heat hazard.
  • Page 8 Mounting to a wooden wall 1. Mark the position of the mounting screws on the wall using a pencil. 2. Drill the screws directly into the marks that you have made on the wall and leave approx. 0.3 inches length to hook the sound bar. 3.
  • Page 9: General Operation

    Remote Control repeatedly to switch to Bluetooth mode. 3. Power on the external Bluetooth enabled device and enter Bluetooth mode to search the pairing name of the unit. 4. When MX-SB270 appears, select it to make the connection. During Playing: Press button on the Remote Control to stop playback.
  • Page 10 LISTENING TO AUXILIARY SOURCE Audio Player To Audio Out Jack AUX IN 1. Connect your auxiliary source (e.g. iPod/iPad/MP3 player) to the 3.5mm AUX IN jack. 2. Power on the unit. 3. Press MODE button on the unit or button on Remote Control repeatedly to switch to the AUX mode. 4.
  • Page 11 HDMI (ARC) OPERATION HDMI ARC Before connecting, please disconnect power. A TV with HDMI ARC port can be connected to this unit, and you can listen to the sound from it though the unit's speakers. 1. Plug one end of an HDMI Cable (user supply) into the HDMI ARC in jack on the unit. 2.
  • Page 12: Specifications

    SPECIFICATIONS Power input .............................AC 100-240V, 50/60Hz Power output ..........................DC 15V 1.2 A � Audio output of the Soundbar..........................2x12W Accessories: AC power adapter, Wall mount kit, Remote control, AUX audio cable, User manual, Main unit The symbol indicates AC voltage The symbol indicates DC voltage For indoor use only The symbol indicates energy efficiency marking...
  • Page 13 Printed in China...
  • Page 14: Fcc Statement

    FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
