Electrolux EDW 7100 Service Manual

Electrolux EDW 7100 Service Manual

Dishwashers with electronic control system
Hide thumbs
Table of Contents

Advertisement

Quick Links

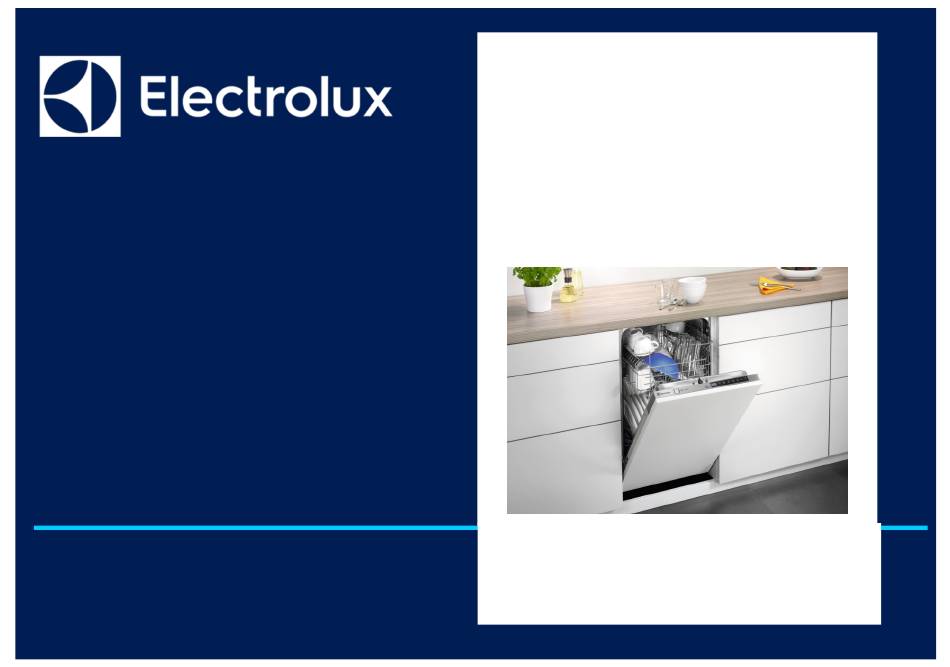

SERVICE MANUAL
DISHWASHERS
FOR INTERNAL AND PARTNERS USE ONLY
© ELECTROLUX HOME PRODUCTS
Consumer Service - EMEA
Quality & Continuous Improvement - Technical Support
Dishwashers with electronic control system
SERVICE MODE
• EDW 7100
• EDW 7200
• EDW 7300
For internal and partners use only.
Edition: 05/2019 - Rev. 0
599 83 04 41
EN
Publication number
599 83 04 – 41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDW 7100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electrolux EDW 7100

Summary of Contents for Electrolux EDW 7100

  • Page 1 Dishwashers with electronic control system SERVICE MODE • EDW 7100 • EDW 7200 SERVICE MANUAL • EDW 7300 DISHWASHERS FOR INTERNAL AND PARTNERS USE ONLY © ELECTROLUX HOME PRODUCTS Publication number For internal and partners use only. Consumer Service - EMEA 599 83 04 –...

  • Page 2: Introduction & Purpose

    Always use proper safety equipment. Introduction & Purpose Chapter 1 Always remove the plug from the power User Interface – Introduction Chapter 2 socket before touching internal components. EDW 7100 Chapter 3.1 EDW 7200 Chapter 3.2 EDW 7300 Chapter 3.3 Purpose:...

  • Page 3: User Interface - Introduction

    User interface – Introduction User Interface – Modes and Function description According to hardware configuration of the dishwasher and marketing requirement, User Mode in individual models can be a subset of above functions. Reset The User Mode functions are not described in this Service Manual “Reset”...

  • Page 4: Service Mode - Function Description

    User interface – Introduction Service Mode – Function description Alarm Reading and Actuator Test After accessed Service mode to get the saved alarms and test actuators. Details of alarm code displaying are in later Alarm Code section. LED Test / Delete Alarm Memory To test the LEDS and erase alarm codes from memory.

  • Page 5: Styling Overview

    EDW 7100 Styling Overview Location of LEDs and Push Buttons Reset Press the On/Off button (S0) for 3 seconds. Q&CI Technical Support – RA Chapter 599 83 04 41...
  • Page 6 The Service Mode can only be accessed after the Reset function has been carried out and the appliance is switched off. EDW 7100 is a touch key model. After Reset and off/on, press button S1+S3 simultaneously for at least 3 seconds to access Service Mode.
  • Page 7 EDW 7100 3. Press button S1 once more to show the third alarm code. 4. Press button S1 the fourth time to move to Actuator Test. Press button S1 repeatedly will sequentially turn on one actuator at a time. L1 is turned off. L2 blinks to indicate the machine is in Actuator Test.

  • Page 8: Led Test / Delete Alarm Memory

    EDW 7100 LED Test / Delete Alarm Memory After accessed Service mode (L1, L2 and L3 blinking): 1. Press button S2 to start this function. All used LEDs/icons blink 5 second on 1 second off. If a buzzer is equipped, it beeps for 5 seconds.
  • Page 9 EDW 7100 Enable/disable Extra Rinse After accessed Service mode (L1, L2 and L3 blinking): 1. Press button S1+S2 to enter this function. L1 blinks indicating it is in Extra Rinse setting mode. Salt icon shows the current setting of Extra Rinse. Salt icon off for disabled, on for enabled 2.
  • Page 10 EDW 7100 PNC on Display Not available Demo mode Activate demo mode: press and hold ECO+Auto for 5s. All LEDs/icons blink for 3s Deactivate demo mode: Press and hold ECO+Auto for 5s. All LEDs/icons blink for 3s After demo mode is activated: In every minute, UI shows the Demo mode animation, and blink all LEDs/icons for 3s. Auto-off is disabled if Demo mode is activated.
  • Page 11 EDW 7100 Step 2: • UI items: Same as Program 2 is selected without option • Time: 0,5s • Graphic example: Step 3: • UI items: Same as Program 1 is selected without option • Time: 6s • Graphic example: Step 4: •...
  • Page 12 EDW 7200 Styling Overview Location of LEDs and Push Buttons Reset Press the On/Off button (S0) for 3 seconds. Q&CI Technical Support – RA Chapter 599 83 04 41...

  • Page 13: Access Service Mode

    EDW 7200 Access Service Mode The Service Mode can only be accessed after the Reset function has been carried out and the appliance is switched off. EDW 7200 is a touch key model. After Reset and off/on, press button S1+S3 simultaneously for at least 3 seconds to access Service Mode. L1, L2 and L3 blink to indicate that Service mode is accessed.
  • Page 14 EDW 7200 4. Press button S1 the fourth time to move to Actuator Test. Press button S1 repeatedly will sequentially turn on one actuator at a time. L1 is turned off. L2 blinks to indicate the machine is in Actuator Test. The actuator number is shown in the display.
  • Page 15 EDW 7200 LED Test / Delete Alarm Memory After accessed Service mode (L1, L2 and L3 blinking): 1. Press button S2 to start this function. All used LEDs/icons and display (show “8:88”) blink 5 second on 1 second off. If a buzzer is equipped, it beeps for 5 seconds. The alarm codes saved in memory are erased.
  • Page 16 EDW 7200 Enable/disable Extra Rinse After accessed Service mode (L1, L2 and L3 blinking): 1. Press button S1+S2 to enter this function. L1 blinks indicating it is in Extra Rinse setting mode. Display shows the current setting of Extra Rinse. “0E” for disabled, “1E” for enabled 2.

  • Page 17: Demo Mode

    EDW 7200 PNC on Display Press and hold the two rightmost keys simultaneously for 3s. The PNC will be shown in the display in 3 steps with 3 digits each step. For example, PNC911443335 is shown as “911” for 3s, then “443” for 3s and “335” for 3s and display is off for 3s, then looping. Demo mode Activate demo mode: press and hold ECO+Auto for 5s.
  • Page 18 EDW 7200 Next steps: Step 2: Step 3: • • UI items: Same as Program 4 is selected without option UI items: Same as Program 3 is selected without option • • Time: 0,5s Time: 0,5s Step 4: Step 5: •...
  • Page 19 EDW 7300 Styling Overview Location of LEDs and Push Buttons Reset Press the On/Off button (S0) for 3 seconds. Q&CI Technical Support – RA Chapter 599 83 04 41...
  • Page 20 EDW 7300 Access Service Mode The Service Mode can only be accessed after the Reset function has been carried out and the appliance is switched off. EDW 7300 is a touch key model. After Reset and off/on, press button S1+S3 simultaneously for at least 3 seconds to access Service Mode. L1, L2 and L3 blink to indicate that Service mode is accessed.
  • Page 21 EDW 7300 L1 is turned off. L2 blinks to indicate the machine is in Actuator Test. The actuator number is shown in the display. 5. Press button S1 when actuator number 11 is activated, the machine will cycle back to Alarm reading and show the first alarm code saved. 6.

  • Page 22: Enable/Disable Extra Rinse

    EDW 7300 If a buzzer is equipped, it beeps for 5 seconds. The alarm codes saved in memory are erased. 2. Switching off the appliance by pressing On/Off button (S0) will exit Service mode. Functional Test Cycle After accessed Service mode (L1, L2 and L3 blinking): Press button S3 to start the test cycle.
  • Page 23 EDW 7300 Display shows the current setting of Extra Rinse. “On” for enabled, “Off” for disabled 2. Press button S1 to change the setting 3. Switching off the appliance by pressing On/Off button (S0) will exit Service mode. Enable/disable Pulse Wash After accessed Service mode (L1, L2 and L3 blinking): 1.
  • Page 24 EDW 7300 Deactivate demo mode: press and hold ECO+Auto for 5s. Display shows “Demo mode OFF” for 3s After demo mode is activated: In every minute, UI shows the Demo mode animation, and show “Demo mode” for 3s. Auto-off is disabled if Demo mode is activated.
  • Page 25 EDW 7300 Step 6: Step 7: • • Same as Step 4 Same as Step 3 Step 8: Step 9: • • Same as Step 2 Same as Step 1 Q&CI Technical Support – RA Chapter 599 83 04 41...
