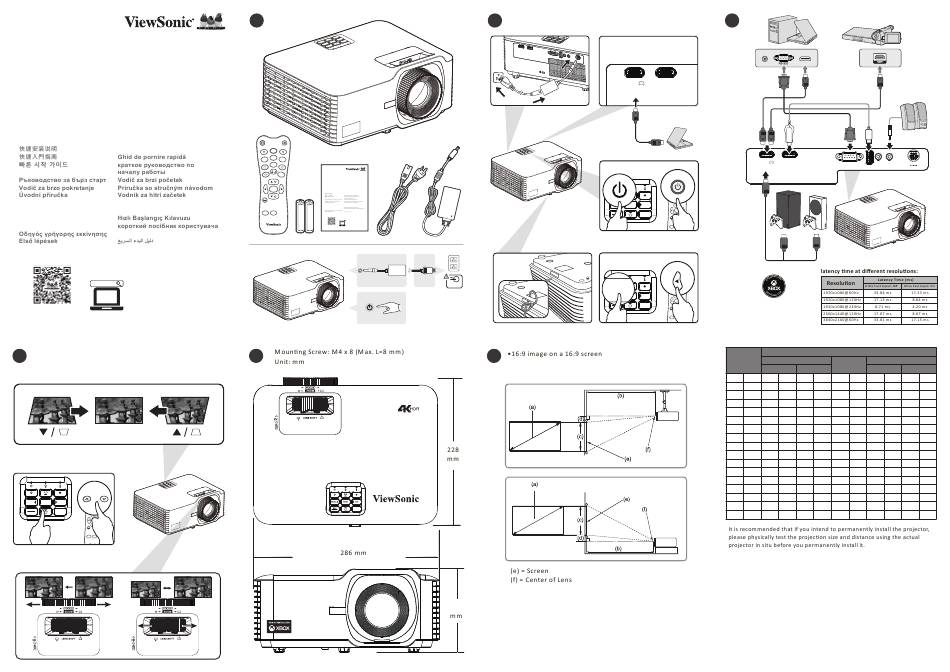

ViewSonic PZ2318 Series Quick Start Manual

PZ2318 Series
DLP Projector
Quick Start Guide Przewodnik Szybki start
Guia de Início Rápido
クイックスタートガイド
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide
Schnellstarthandbuch
Panduan Mulai Cepat
Guida introduttiva
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
4
ON OFF
AV Mute
Contrast Display
Brightness Mode
SOURCE ENTER AUTO
Aspect
/
MENU Freeze
EXIT
/ Auto
Source Sync
Enter
/
Menu
Exit
HDMI 1 HDMI 2
1
ON OFF
AV Mute
Contrast
Brightness Display
Mode
Aspect
/
Freeze
PZ2318 Series
Auto
/
Source Sync
DLP Projector
Enter
Quick Start Guide Przewodnik Szybki start
Guia de Início Rápido
/
Menu クイックスタートガイド
Exit
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide
Schnellstarthandbuch
Panduan Mulai Cepat
HDMI 1 HDMI 2
Guida introduttiva
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
5
2
2
1
HDMI 1
HDCP 2.2
3
SOURCE ENTER
MENU
EXIT
4 4
5
100-240 Vac
50/60 Hz
SOURCE
SOURCE ENTER
MENU
EXIT
6
129
3
HDMI 2
HDCP 2.2
eARC
HDMI 1 HDMI 2
HDCP 2.2 HDCP 2.2
eARC
ON ON OFF
AV Mute
Contrast
Brightness Display
Mode
Aspect
/
Freeze
AUTO
/ Auto
Source Sync
Enter
/
Menu
Exit
HDMI 1 HDMI 2
Below table are the reference
Source
ON OFF
AV Mute
Contrast Display
Brightness Mode
Aspect
/
Freeze
AUTO
/ Auto
Source Sync
DESIGNED FOR XBOX
Enter
/
Menu
Exit For the lowest possible latency,
disable keystone/warp.
HDMI 1 HDMI 2
16:9 image on a 16:9 Screen
(a) Screen Size (b) Projection distance
min. max.
inch mm
inch mm inch mm
30 762 36.61 930 58.57 1488
40 1016 48.81 1240 78.09 1984
50 1270 61.01 1550 97.62 2479
60 1524 73.21 1860 117.14 2975
70 1778 85.41 2170 136.66 3471
80 2032 97.62 2479 156.19 3967
90 2286 109.82 2789 175.71 4463
100 2540 122.02 3099 195.23 4959
110 2794 134.22 3409 214.76 5455
120 3048 146.42 3719 234.28 5951
130 3302 158.63 4029 253.80 6447
140 3556 170.83 4339 273.33 6942
150 3810 183.03 4649 292.85 7438
200 5080 244.04 6199 390.47 9918
250 6350 305.05 7748 488.08 12397
300 7620 366.06 9298 585.70 14877
12V TRIGGER
AUDIO OUT
RS232 DC 19.5V
USB 5V/1.5A
(SERVICE)
(d) Vertical offset
(c)
Image height
min. max.
inch mm inch mm inch mm
14.71 374 0.51 13 2.74 69
19.61 498 0.69 17 3.65 93
24.51 623 0.86 22 4.56 116
29.42 747 1.03 26 5.47 139
34.32 872 1.20 31 6.38 162
39.22 996 1.37 35 7.30 185
44.12 1121 1.54 39 8.21 208
49.03 1245 1.72 44 9.12 232
53.93 1370 1.89 48 10.03 255
58.83 1494 2.06 52 10.94 278
63.73 1619 2.23 57 11.85 301
68.64 1743 2.40 61 12.77 324
73.54 1868 2.57 65 13.68 347
98.05 2491 3.43 87 18.24 463
122.57 3113 4.29 109 22.80 579
147.08 3736 5.15 131 27.36 695
