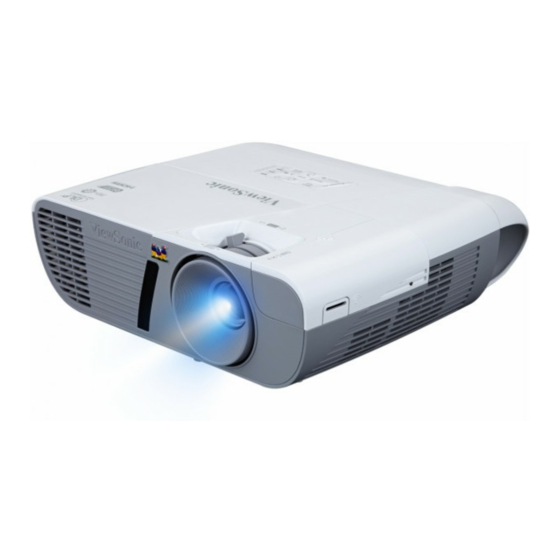

LightStream™ XGA Networkable Projector
The ViewSonic networkable LightStream™ PJD6252L XGA projector features 3,300 ANSI Lumens, XGA
1024 x 768 native resolution, an intuitive, user-friendly design and a sleek white chassis. Exclusive
SuperColor™ technology offers a RGBCYW color wheel - 120% brilliant color, for true-to-life image
projection, while SonicExpert
cube speaker to deliver incredibly clear and audible sound. PortAll
HDMI/MHL connection compartment, supports wireless HDMI dongles or MHL connectors, while a cable
management hood eliminates unsightly cable clutter. Boasting its smart design, the PJD6252L also provides
a quick set-up. The PJD6252L is the ideal projector for both high definition presentations and vibrant
multimedia content.
SuperColor™ Technology: Best in Class
Color Accuracy
ViewSonic's proprietary SuperColor™ Technology
offers a wider color range than conventional DLPR
projectors, ensuring that users enjoy realistic and
accurate colors. With an exclusive color wheel
design and dynamic lamp control capabilities,
SuperColor™ Technology projects images with
reliable and true-to-life color performance, in both
bright and dark environments, without sacrificing
image quality.
®
, ViewSonic's proprietary sound enhancement technology, powers a 10W
®
- a neatly designed enclosed
PortAll™: Secure MHL/HDMI Port
ViewSonic's exclusive PortAll™ feature—a hidden
compartment with an integrated and secure
MHL/HDMI port that lets you discretely stream
multimedia content from a wireless dongle, or lets
you connect to other devices via an HDMI cable. *
®
ViewSync
WPG-300 dongle is optional
PJD6252L
Advertisement
Related Manuals for ViewSonic LightStream PJD6252L
Summary of Contents for ViewSonic LightStream PJD6252L
- Page 1 LightStream™ XGA Networkable Projector PJD6252L The ViewSonic networkable LightStream™ PJD6252L XGA projector features 3,300 ANSI Lumens, XGA 1024 x 768 native resolution, an intuitive, user-friendly design and a sleek white chassis. Exclusive SuperColor™ technology offers a RGBCYW color wheel - 120% brilliant color, for true-to-life image ® projection, while SonicExpert , ViewSonic’s proprietary sound enhancement technology, powers a 10W ® cube speaker to deliver incredibly clear and audible sound. PortAll - a neatly designed enclosed HDMI/MHL connection compartment, supports wireless HDMI dongles or MHL connectors, while a cable management hood eliminates unsightly cable clutter. Boasting its smart design, the PJD6252L also provides a quick set-up. The PJD6252L is the ideal projector for both high definition presentations and vibrant multimedia content. SuperColor™ Technology: Best in Class PortAll™: Secure MHL/HDMI Port Color Accuracy ViewSonic’s exclusive PortAll™ feature—a hidden compartment with an integrated and secure ViewSonic’s proprietary SuperColor™ Technology MHL/HDMI port that lets you discretely stream offers a wider color range than conventional DLPR multimedia content from a wireless dongle, or lets projectors, ensuring that users enjoy realistic and you connect to other devices via an HDMI cable. * accurate colors. With an exclusive color wheel ® ViewSync WPG-300 dongle is optional design and dynamic lamp control capabilities, SuperColor™ Technology projects images with reliable and true-to-life color performance, in both bright and dark environments, without sacrificing image quality.
-
Page 2: Quick Start
Side Projection with Horizontal and Vertical Keystone Correction with 4 corner adjustment Horizontal and vertical keystone correction with 4 corner adjustment features eliminate crooked and distorted images for a perfectly proportioned picture every time. No matter the size of the room, the projector does not have to be placed directly in front of the projection. When the projector is placed non- perpendicularly to the screen, this feature can still help produce the ideal image quality that supports short- distance projection, provides flexible installation, and saves projection space. Network Manager Quick Start Easy Central Management System Auto Power On- Instant activation upon signal connection All LightStream PJD6 projectors come equipped With auto power on enabled, once a VGA or HDMI with Crestron RoomView Express, an easy-to-use cable is connected and signal detected, network management system that lets LightStream projectors will power on automatically. administrators remotely monitor and control up to Smart Restart - Instant reactivation during 256 LightStream projectors from a single PC. presentation With Smart Restart, the projector automatically enters a 3-minute standby mode when it is idle and turns down the projection to a power-saving 30% brightness. During standby mode, you can quickly and conveniently reactivate the projector for continued use without waiting for a complete power cycle. - Page 3 SonicExpert™ Technology SonicMode Clear, comfortable, and louder sound over Optimized audio performance for Speech, same-class projectors Entertainment, or Standard scenario The ViewSonic’s proprietary SonicExpert™ The “Standard” preset offers the best sound levels technology incorporates a 10W ported speaker for general use. The “Speech” preset enhances chamber and a more powerful amplifier to deliver the sound of spoken words, making it ideal for a full 20Hz – 20Khz sound range. The compact projecting speeches and lectures, or for sales calls speaker takes pride in quality sound with best-fit and video conferencing. The “Entertainment” Sound Response Curve, and high efficiency of preset is fine-tuned with more bass and richer mid- transferring electric power to sound power. high frequencies ideal for music and movies. Dual 3D Blu-ray Ready HDMI Inputs Balanced Color and Brightness Flexible connectivity to high-definition A choice of 5 unique view settings provide the best devices possible viewing experience in any environment regardless of ambient light. Brightest Mode: for Designed with two HDMI ports, this projector is environments where extra-high brightness is perfect for connecting to any HDMI-enabled required Dynamic Mode: for presentations under device, and can display 3D images directly from daylight environment and text content Standard 3D Blu-ray players. 3D images can be viewed with Mode: for matching PC or NB color ViewMatch optional ViewSonic PGD-350 Shutter Glasses, or Mode: for general viewing Movie Mode: for any other compatible 3D glasses. watching movies with better saturation in a dark environment...
- Page 4 Programmable Remote Control To make things easier, this remote control contains wireless presenter functions (mouse control, page up-n- down, etc.) and hotkeys for critical, major functions. “My Button” Setup your favorite hotkey: Finding a function on a remote control or through the on-screen menu can be time-consuming. The “My Button” button on the remote control is a programmable shortcut button that can be user-programmed to launch a commonly used or desired function. App - vRemote App controller with snapshot keystone and lamp life monitor: Never worry about missing a remote control again. Users can download vRemote, the virtual remote control, onto any IR or WiFi enabled smartphone. vRemote can instantly help users automatically correct keystone with a simple snapshot of the projected image. In addition, administrators can remotely view the projectors’ lamp working hours and adjust keystone. Smart Design, Easy Operation App - ProjectorDistance Quick Projector Position Preview Cable Management Hood The seamless design gives the projector a clean No matter small meeting room, middle classroom, look without wires and I/O ports exposed in the or big hall, ProjectorDistance tells you how far the rear. projector should be placed according to the room Top Lamp Door ceiling height, projector’s screen size, aspect ratio, An easy-access top lamp door enables simple etc. Just input several figures, the result will be lamp maintenance and replacement. displayed in the simulation scenarios with Tactile Keypads measurement. You can use finger to adjust the The tactile keypad is raised with concave buttons distance instantly. that assist in making projector set up easier in...
-
Page 5: Technical Specifications
dark environments. Technical Specifications DISPLAY Type TI DMD 0.55 Resolution 1024x768 (XGA) F Stop / Focal Length mm 2.56~2.8 / 22~24.1 Zoom Factor 1.1x Focus / Zoom Manual / Manual Keystone +/- 40° (Vertical) Display Size 30" ~ 300" Throw Distance 1.19 m ~ 13.11 m Throw Ratio 1.95 ~ 2.15 Lamp Power 190 W Lamp Life (Normal / SuperEco 4000 / 10000 (hours) Mode) Brightness (Max.) 3300 ANSI Lumens... - Page 6 3.5mm mini jack x2 Audio Output 3.5mm mini jack x1 Microphone in Share with Audio in 2 connector Control RS-232 Mini type B x1 (Maintenance and mouse control) RJ45 POWER Voltage 100~240Vac 50/60Hz (Auto Switching) Power Consumption 295 W (Max.) Standby <0.5W OPERATING CONDITION Temperature 0°C ~ 40°C (32°F ~ 104°F) Humidity 10% ~ 90% (non-condensing) NOISE LEVEL Normal / Eco Mode 32dB / 27dB DIMENSIONS Physical (W×H×D) 316 x 228 x 103.7 mm /12.44” x 8.98 ” x 4.08” WEIGHT 2.5 kg / 5.51 lb REGULATIONS Mexico Energy test/Registration, TUV-S, Mark(Argentina), India BIS, FCC,CE, EMC,CB,CCC, ROHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, RCM, CECP PACKAGE CONTENTS Power Cord (1.8m) / VGA Cable (1.8m) / Remote Control with Batteries (With Laser pointer) / Quick Start Guide (one sheet version) / ViewSonic CD Wizard (With User Manual) / Cable Cover x1 10022017 www.viewsonic.com PJD6252L...
