OVERVIEW

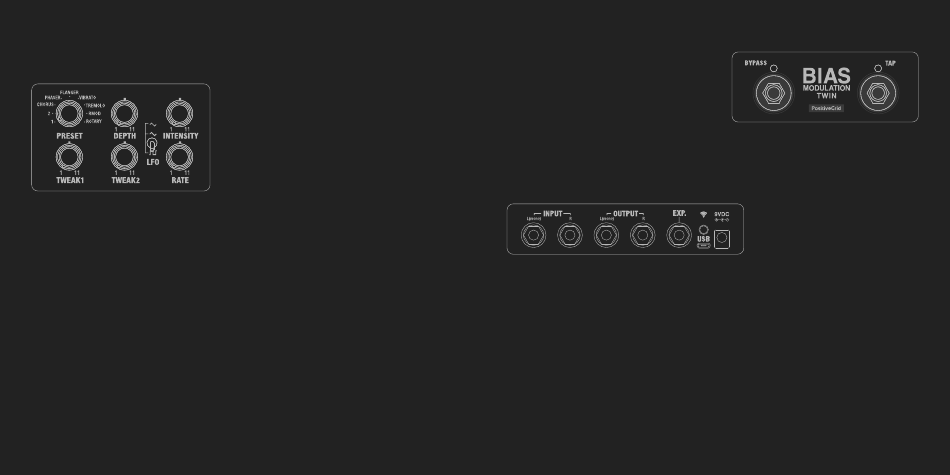

Control Panel

・ Preset
Indicates the preset you can engage with the footswitch. BIAS Modulation Twin comes with 9
preset slots, enabling you to import new presets with the BIAS Pedal app.
・ DEPTH
Controls the depth of primary LFO.
・ INTENSITY
Controls the level of modulation effect.
・ TWEAK 1
Depends on the module and effect type. (see Modulation Module section)
・ TWEAK 2
Depends on the module and effect type. (see Modulation Module section)
・ RATE
Controls the speed of primary LFO.
・ LFO
Controls LFO waveform from Round(sine), Triangle(Saw) and Pulse(Square).
9

Footswitch Panel

BIAS Modulation Twin comes with 2 footswitches:
a bypass/engage footswitch and a Tap Tempo
switch. The bypass/engage footswitch allows you
to bypass or engage the preset according to the
position of PRESET knob. You can also save
parameters by holding the footswitch (see the
Save Preset section of this manual).
For the Tap Tempo footswitch, you can tap the switch twice and the BPM value will be determined
based on the timing between the two taps. (see Tap Tempo and BPM section)

Rear Panel

・ Input
Stereo ¼" TS Hi-Z input
・ Output
Stereo ¼" TS output
・ EXP.
¼" TRS for expression pedal (see Expression
Pedal section).
・ USB
Micro USB, for power supply and BIAS Pedal
(desktop) software integration.
・ Wireless button/Blinking LED
There are 2 different LED states:
LED blinks rapidly - Wireless is in pairing
>
mode and ready to connect with BIAS Pedal
mobile.
LED stays static - Connecting with BIAS
>
Pedal mobile.
・ 9V DC Power Jack
Supports a 9V DC power supply with negative
tips. The minimum current draw is 270mA.
