WET AND DRY VACUUM
HWDV60
WARNING: Read thoroughly the instruction manual before using.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWDV60 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HWDV60

Summary of Contents for Hyundai power products HWDV60

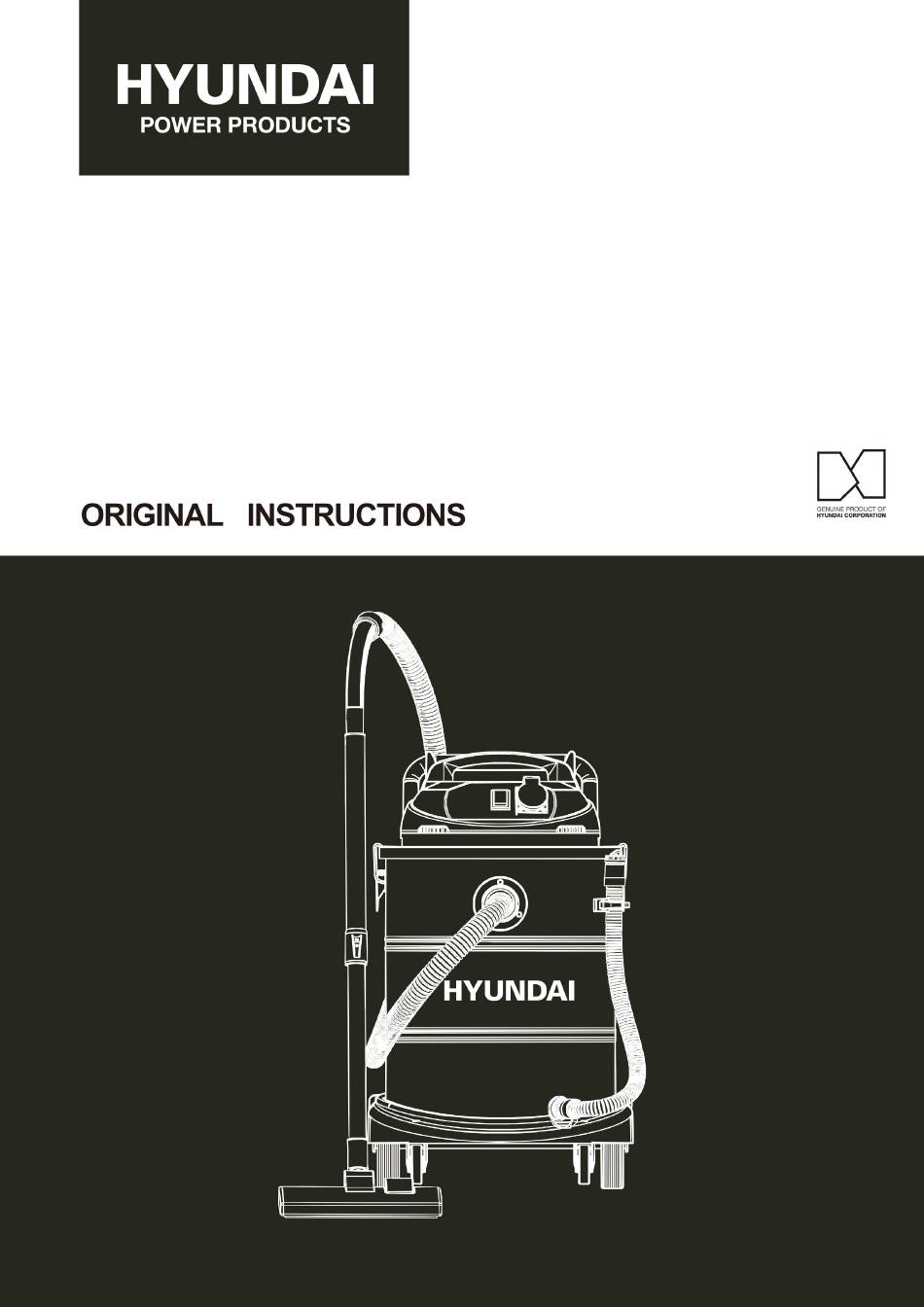

  • Page 1 WET AND DRY VACUUM HWDV60 WARNING: Read thoroughly the instruction manual before using.

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. PRODUCT DESCRIPTION........................5 3. INTENDED USE............................. 6 4. TECHNICAL DATA..........................7 5. ASSEMBLY.............................7 6. OPERATION............................8 7. CLEANING AND MAINTENANCE....................10 8. DISPOSAL AND RECYCLING......................10 9. DECLARATION OF CONFORMITY....................11 10. WARRANTY............................12 11. PRODUCT FAILURE........................13 12.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS IMPORTANT! When using the appliance, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions with due care. Keep this manual in a safe place, so that the information is available at all times.
  • Page 4 assembling and using the appliance for the first time.  Check that the mains voltage is the same as the mains voltage specified on the rating plate.  Only connect the appliance to a properly fitted 230V~ 50 /60Hz shock-proof socket. ...

  • Page 5: Product Description

     Never use the appliance if it is damaged.  Only allow the appliance to be serviced by an authorized customer service center.  Only use the appliance to carry out work for which has been designed.  Take extra care when cleaning steps. ...

  • Page 6: Intended Use

    Handle Wheels ON/OFF switch Haipa filter Suction hose Dirt bag Metal tube Crevice nozzle Tank Adapter Floor brush Socket outlet Water drain hose Large vacuum nozzle Botton bascket Blow connector Filter Floating safety valve Overview of nozzles 3. INTENDED USE The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter.

  • Page 7: Technical Data

    4. TECHNICAL DATA Model HWDV60 Mains voltage 230V~ 50/60Hz Motor power 1600W Rated power 3600W(Max. load of socket-outlet:2000W) Insulation class Class I Tank volume Suction 22Kpa Hose length Hose diameter 32mm Power cable Weight 13.5kg 5. ASSEMBLY Release the buckles on both...

  • Page 8: Operation

    NOTE: Figure 5d: Use the supplied foam filter for wet vacuum-cleaning. Figure 5e: Use the supplied dust bag for dry vacuum-cleaning. 6. OPERATION Important! Switch off the equipment if liquid or foam is emitted with the exhaust air when wet vacuum cleaning. 6.1 On/Off switch Switch position 0: Off Switch position I: On...
  • Page 9 Wet vacuum - cleaning Unplug before change filter (Figure 1) Pull the supplied foamed plastic filter over the filter basket (Figure 2) for wet vacuum-cleaning. Insert the plug and turn on the switch, then appliance starts to work (Figure 4 & 5a or 5b) Pull out the plug of the drainage hose to drain(Figure 6) and use cleaning cloth to clean the tank(Figure 7).

  • Page 10: Cleaning And Maintenance

    7. CLEANING AND MAINTENANCE Maintenance – cleaning Unplug before maintenance (Figure 1) Take off the foamed plastic filter (Figure 3), and wash by water (Figure 5) IMPORTANT: Do not use detergents to clean the filter. The filter must be thoroughly dry before the machine is used.

  • Page 11: Declaration Of Conformity

    Fax : +33 (0)5.34.502.503 States that the designated below machine : WET AND DRY VACUUM Model: HWDV60 S/N: 20231200001-20231202055 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

  • Page 12: Warranty

    10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 13: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 14: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
