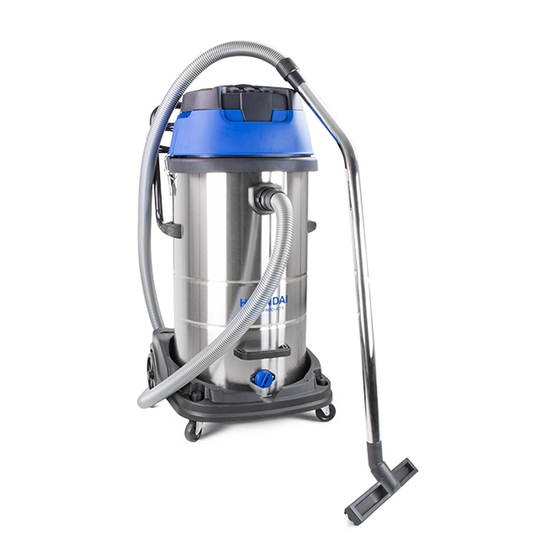

Hyundai power products HYVI10030 Instruction Manual

Hyundai power products HYVI10030 Instruction Manual

Wet / dry
Hide thumbs Also See for HYVI10030:

Advertisement

WET / DRY VACUUM CLEANER
HYVI10030
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYVI10030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai power products HYVI10030

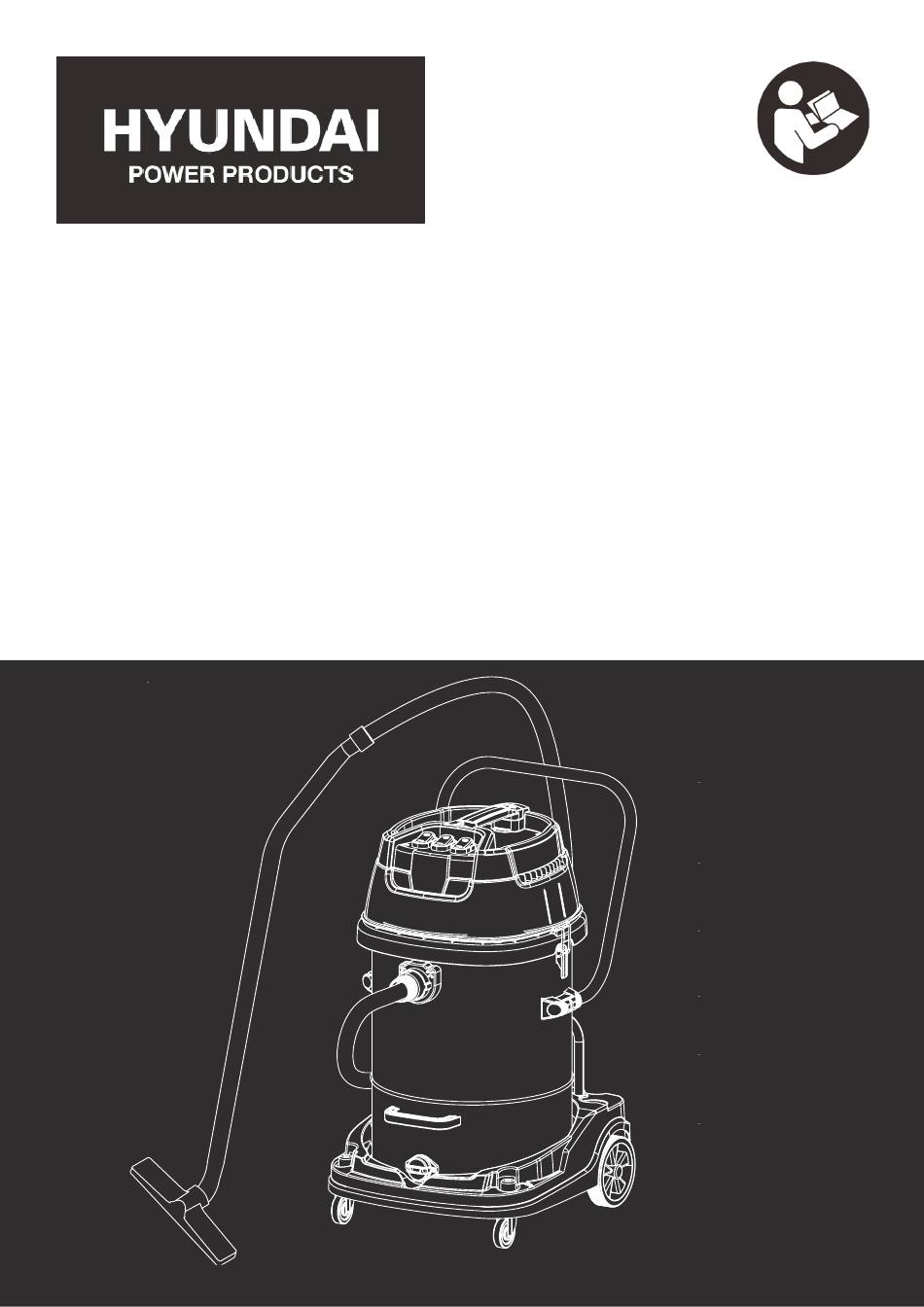

  • Page 1 WET / DRY VACUUM CLEANER HYVI10030 Instruction Manual...
  • Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
  • Page 3: Table Of Contents

    Contents Safety Information.....4-12 Our Product Range.......29 Understand Your Machine.......4 Recycling And Disposal....30 Intended Use............4 Personal Safety..........5 Declaration Of Conformity...31 Work Area............5 Inspect Your Machine........6 Notes.........32-33 During Use............7 Machine Specific Safety.......8-9 Useful Information......34 Electrical Safety..........9 Vibrations............10 Our YouTube Channel........34 Noise..............10 Warranty............34 Personal protective Equipment......11 Manual Updates..........34 Symbols On The Machine......12...
  • Page 4: Safety Information

    Intended Use The HYVI10030 is a wet and dry vacuum cleaner from Hyundai, powered by a 3000W motor. It is designed for picking up dry dust and debris as well as liquids. The machine is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.
  • Page 5: Personal Safety

    Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Stay alert, watch what you are doing and use common sense when operating the machine. Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or any substances which may slow your reflexes and compromise judgment.
  • Page 6: Inspect Your Machine

    Safety Information Inspect Your Machine • You must check the general condition of the machine before use. Keep guards in place and in working order. Make sure all screws, nuts, bolts, etc., are securely tightened. • Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it.
  • Page 7: During Use

    Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Walk, never run with the machine. Be very careful when pulling the machine toward you. You must look behind you to make sure there are no obstacles.
  • Page 8: Machine Specific Safety

    Safety Information Machine Specific Safety • Do not leave the cleaner running without supervision. • The mains voltage must be the same as the details on the machine’s model plate. • Do not carry the cleaner by the cable. Only remove the cable from the socket by pulling the plug.
  • Page 9: Electrical Safety

    Safety Information • Use original accessories only. • When picking up liquids, only use the accessories intended for this purpose. • Keep body parts away from the vacuum opening when the machine is running. • Always unplug the machine from the mains before removing the motor housing. •...
  • Page 10: Vibrations

    Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.
  • Page 11: Personal Protective Equipment

    Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
  • Page 12: Symbols On The Machine

    Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment.
  • Page 13: Features

    Features HYVI10030 Features Hose On / Off Switches Motor Housing Tube Hose Lock Knob Tank Latch Tank Wheel Water Outlet Trolley Nozzle There is a chain connected to the tank. The chain will discharge any static onto the ground whilst using the vacuum to prevent static shock.
  • Page 14: Unboxing

    Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired.
  • Page 15 Unboxing In The Box *NOT TO SCALE www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 16: Assembly

    Assembly Unboxing & Assembly Video: Go to youtube.com and type in Hyundai HYVI10030 assembly. YOU MUST read and understand the instruction manual first. Step 1 : Attaching The Motor Housing To remove the motor housing, undo the latches on each side.
  • Page 17: Attaching The Wheels

    Assembly Step 2 : Attach The Wheels Remove the motor housing by undoing the latches. Turn the tank on its side so you can access under the trolley. To attach the rear wheel axle, screw it into place with the two screws provided using a medium Phillips screwdriver.
  • Page 18: Attaching The Filters

    Assembly Step 3 : Attaching The Filters This vacuum cleaner is suitable for both wet and dry use. You must use the correct filter for each use. Dry Use For dry use, fit the pleated filter to the power unit by twisting the black base clockwise and fit the large cloth filter to the drum.
  • Page 19 Assembly Wet use For wet use, remove the pleated filter and fit the foam filter over the float cage. Make sure you remove the dry use cloth filter also. NOTE : Before using to vacuum for wet cleaning, remove all dirt and debris from the tank.
  • Page 20: Connecting The Hose

    Assembly Step 5 : Connecting The Hose Push the suction hose firmly into fitting on the front of the drum and turn clockwise to secure. To remove hose, turn anti-clockwise and pull out of fitting on drum. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 21: Cable Tidy

    Assembly Step 5 : Cable Tidy You can wrap the cable around the two knobs for storage. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 22: Operation

    Operation Attaching Accessories Before mounting an accessory, always unplug the machine. You can either connect the accessories onto the hose or you can attach them to the telescopic tube. Push the chosen accessory into place. Nozzle For Wet Use Nozzle For Dry Use Crevice Nozzle Tube Brush Nozzle...
  • Page 23: Draining Liquids

    Operation Draining Liquids The vacuum cleaner has a float switch which ensures the vacuum will automatically shut off when the tank gets too full. If this happens, switch off the machine and empty the tank. To drain the tank, simply unscrew the plug and the liquid will drain out. Once it is drained, screw the plug back in.
  • Page 24: Starting / Stopping

    Starting / Stopping Starting Always check whether the correct accessories have been mounted before switching on the machine. Before switching on the machine always check that the filter has been fitted. Using without a filter can seriously damage the machine. The vacuum is equipped with three motors so you can increase the suction power as needed.
  • Page 25 Starting / Stopping Stopping Press the switches back to the ‘O’ position and unplug from the mains power supply. Motor 1 Motor 2 Motor 3 www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 26: Maintenance

    Maintenance General Maintenance • Keep all nuts, bolts and screws tight to be sure the vacuum cleaner is in a safe working condition. • Replace worn or damaged parts for safety. • Regularly replace the dustbag. Always replace the dustbag when it is full. •...
  • Page 27: Storage

    Maintenance Storage Keep the vacuum stored in dry, level area way from damp, moisture and rain fall. • For trouble free service, make sure the machine is clean and dry before storing. • Please ensure the machine is stored away from direct sunlight. Store indoors. •...
  • Page 28: Techincal Data

    Technical Data Specification Model HYVI10030 Voltage 230V Mains Frequency 50Hz Motor 3000W Tank Size 100L Hose Length Cable Length Sound Power Level 82dBA Net Weight 26.5kg www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 29: Our Product Range

    Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps...
  • Page 30: Recycling And Disposal

    Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
  • Page 31: Declaration Of Conformity

    Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors. Equipment Category: Power Tools Product Name/Model: HYVI10030 Type: Industrial Wet / Dry Vacuum Cleaner Mains Voltage: 3000W...
  • Page 32: Notes

    Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 33 Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
  • Page 34: Useful Information

    Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated.
  • Page 35: Contact Us

    Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
  • Page 36 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
