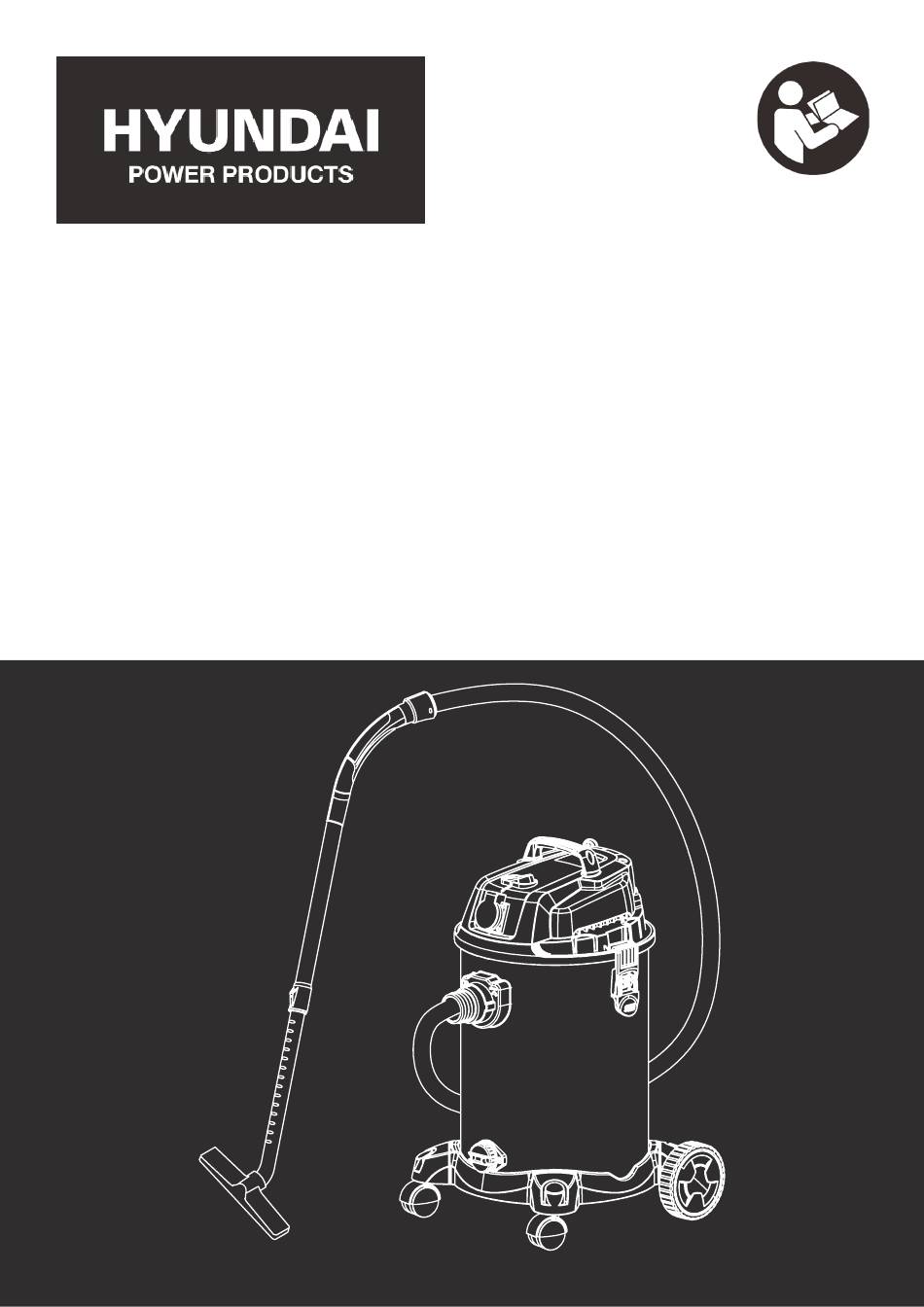

- Page 1 WET / DRY VACUUM CLEANER HYVI3014 Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Safety Information.....4-12 Our Product Range.......29 Understand Your Machine.......4 Recycling And Disposal....30 Intended Use............4 Personal Safety..........5 Declaration Of Conformity...31 Work Area............5 Inspect Your Machine........6 Notes.........32-33 During Use............7 Machine Specific Safety.......8-9 Useful Information......34 Electrical Safety..........9 Vibrations............10 Our YouTube Channel........34 Noise..............10 Warranty............34 Personal protective Equipment......11 Manual Updates..........34 Symbols On The Machine......12... -
Page 4: Safety Information

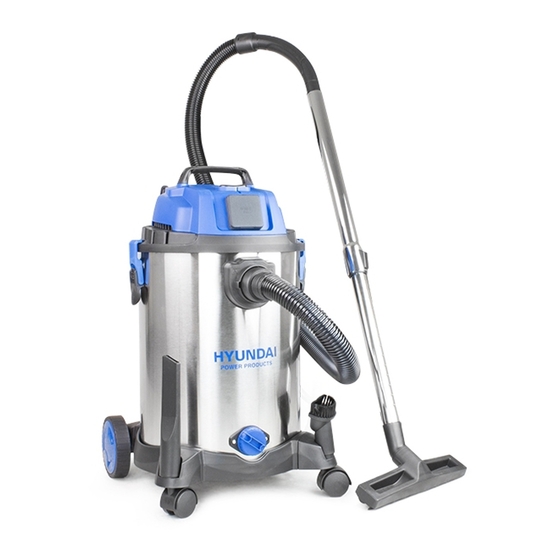

Intended Use The HYVI3014 is a wet and dry vacuum cleaner from Hyundai, powered by a 1400W motor. It is designed for picking up dry dust and debris as well as liquids. The machine is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly. -
Page 5: Personal Safety
Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Stay alert, watch what you are doing and use common sense when operating the machine. Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or any substances which may slow your reflexes and compromise judgment. -
Page 6: Inspect Your Machine
Safety Information Inspect Your Machine • You must check the general condition of the machine before use. Keep guards in place and in working order. Make sure all screws, nuts, bolts, etc., are securely tightened. • Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Walk, never run with the machine. Be very careful when pulling the machine toward you. You must look behind you to make sure there are no obstacles. -
Page 8: Machine Specific Safety
Safety Information Machine Specific Safety • Do not leave the cleaner running without supervision. • The mains voltage must be the same as the details on the machine’s model plate. • Do not carry the cleaner by the cable. Only remove the cable from the socket by pulling the plug. -
Page 9: Electrical Safety
Safety Information • Use original accessories only. • When picking up liquids, only use the accessories intended for this purpose. • Do not connect any electrical equipment to the electronic power socket when using this machine to pick up liquids. •... -
Page 10: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 12: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 13: Features
Features HYVI3014 Features On / Off Switch Motor Housing Electronic Power Socket Tank Latch Hose Lock Knob Telescopic Tube Hose Tank Wheel Nozzle Water Outlet There is a chain connected to the tank. The chain will discharge any static onto the ground whilst using the vacuum to prevent static shock. -
Page 14: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. - Page 15 Unboxing In The Box *NOT TO SCALE www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
-
Page 16: Assembly
Assembly Unboxing & Assembly Video: Go to youtube.com and type in Hyundai HYVI3014 assembly. YOU MUST read and understand the instruction manual first. Step 1 : Attach The Front Wheels Turn the tank upside down. Slide the two front wheel brackets into place. Make sure they are facing the correct way. -
Page 17: Attaching The Rear Wheels
Assembly Step 2 : Attach The Rear Wheels Slide the two rear wheel brackets into place. Make sure they are facing the correct way. See image below. Place the screws through the two holes and use a screwdriver to secure in place. Clip the wheel into position on both sides. -
Page 18: Attaching The Filters
Assembly Step 3 : Attaching The Filters This vacuum cleaner is suitable for both wet and dry use. You must use the correct filter for each use. Dry Use For dry use, fit the paper dust bag to the inlet fitting on the inside of the drum. Make sure that the correct filter is in place for dry use. - Page 19 Assembly Wet use For wet use, remove the paper dust bag and use the foam filter over the float cage. Make sure you remove the dry use filter first. NOTE : Before using to vacuum for wet cleaning, remove all dirt and debris from the tank.
-
Page 20: Connecting The Hose
Assembly Step 5 : Connecting The Hose There are two places to attach the hose. The connector on the front of the vacuum is for suction. The connector at the rear of the vacuum is for blowing. Suction Function Push the suction hose firmly into fitting on the front of the drum and turn clockwise to secure. See image 1. - Page 21 Assembly Blower Function Push the suction hose firmly into fitting at the rear of the drum and turn clockwise to secure. To remove hose, turn anti-clockwise and pull out of fitting on drum. Always switch off the power when changing function. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
-
Page 22: Operation
Operation Attaching Accessories Before mounting an accessory, always unplug the machine. You can either connect the accessories onto the hose or you can attach them to the telescopic tube. Push the chosen accessory into place. Floor Cleaner Brush Nozzle Crevice Nozzle Power Tool Adapter Attach the power tool adapter onto the end of the hose. -
Page 23: Telescopic Tube
Operation Telescopic Tube To extend the tube, simply push the button forward and choose a position. You can connect any of the accessories to the end of the telescopic tube. Draining Liquids The vacuum cleaner has a float switch which ensures the vacuum will automatically shut off when the tank gets too full. -
Page 24: Starting / Stopping
Starting / Stopping Starting Always check whether the correct accessories have been mounted before switching on the machine. Plug the vacuum into the mains power supply. For normal use, turn the switch to the ‘I’ position. For power tool use, turn the switch to the ‘II’ position. The vacuum will not start until you connect your power tool and turn your power tool on. -
Page 25: Power Tool Use
Power Tool Use Power Tool Use The vacuum has a built-in socket for connecting drills, circular saws, etc. This is for direct suction of drilling dust, shavings or sawdust. Plug your power tool into the socket on the vacuum. Connect the hose to the dust extraction outlet on the electrical equipment. Follow the starting procedure on page 24. -
Page 26: Maintenance
Maintenance General Maintenance • Keep all nuts, bolts and screws tight to be sure the vacuum cleaner is in a safe working condition. • Replace worn or damaged parts for safety. • Regularly replace the dustbag. Always replace the dustbag when it is full. •... -
Page 27: Storage
Maintenance Storage Keep the vacuum stored in dry, level area way from damp, moisture and rain fall. • For trouble free service, make sure the machine is clean and dry before storing. • Please ensure the machine is stored away from direct sunlight. Store indoors. •... -
Page 28: Techincal Data
Technical Data Specification Model HYVI3014 Voltage 230V Mains Frequency 50Hz Motor 1400W Tank Size Hose Length 1.5M Cable Length 4.5M Sound Power Level 80dBA Assembled Dimensions 640 x 370 x 400mm Net Weight 8.9kg www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk... -
Page 29: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 30: Recycling And Disposal
Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 31: Declaration Of Conformity
Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors. Equipment Category: Power Tools Product Name/Model: HYVI3014 Type: Wet / Dry Vacuum Cleaner Mains Voltage: 1400W... -
Page 32: Notes
Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk... - Page 33 Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
-
Page 34: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 35: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 36 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
