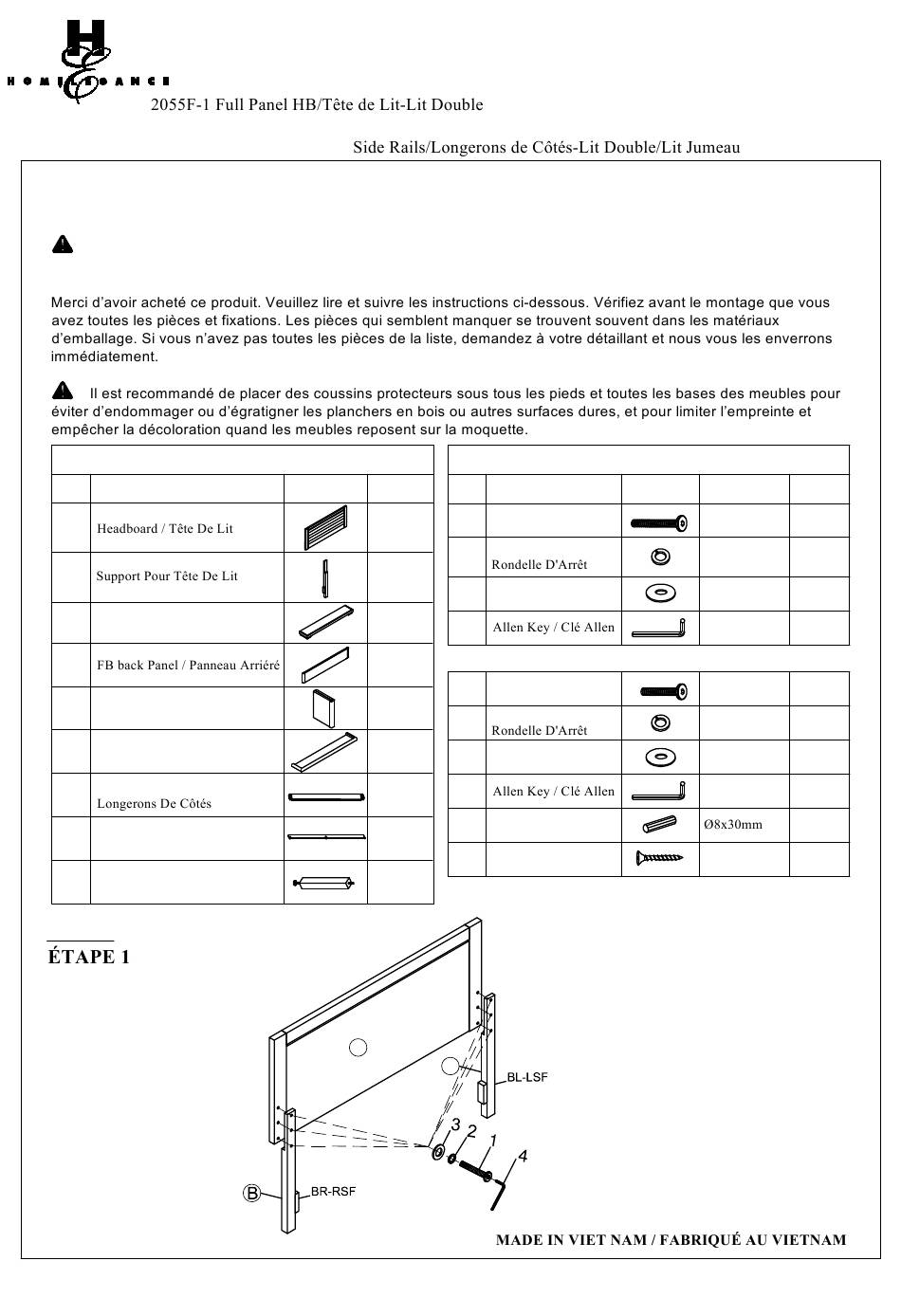

Homelegance 2055F-2 Assembly Instructions

INSTRUCTIONS D'ASSEMBLAGE
2055F-2 Full FB & Slats & Support Legs/Pied de Lit/Lattes et Support de Lattes-Lit Double
2055F-3 Twin/Full Storage
Thank you for purchasing this product.Please take time to read and follow the instructions below. Check that you have all
parts and hardware before assembly. Parts apparently missing are often found in the packing materials. If you do not
have all the parts listed, have your dealer contact us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing
furniture on a wood floor or other hard surface, and to limit indentation and prevent discoloration if placing on carpet.
PART LISTS / LISTE DE PIECES
NO. Description
A
Headboard legs (Br-Rsf/ Bl-Lsf)
B
(Gauche/ Droit)
C FB bottom Panel / Panneau Du Bas
D
E
FB divider / Divider
F FB top Panel / Panneau Du Haut
Side Rails /
G
H
Slats / Lattes
Support Legs/ Support
I
Pour Transverses

STEP 1

ASSEMBLY INSTRUCTIONS

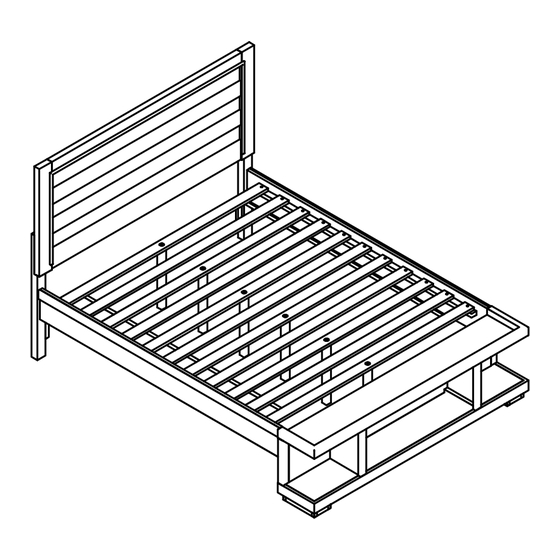

ITEM NO: 2055F-1/2/3 FULL BED / LIT DOUBLE
Sketch Q'ty
1PC
2PCS
1PC
1PC
2PCS
1PC
2PCS
11PCS
6PCS
A
HARDWARE LISTS / LISTE DE QUINCAILLERIE
NO. Description
Bolt / Boulon
1
Spring Washer /
2
Flat Washer /
3
Rondelle Plate
4
**ABOVE HARDWARE ARE PACKED IN 2055-1 FOR ASSEMBLY
5
Bolt / Boulon
Spring Washer /
6
Flat Washer /
7
Rondelle Plate
8
Wooden Dowel /
9
Goujon on Bois
10 Screw / Vis
**ABOVE HARDWARE ARE PACKED IN 2055-2 FOR ASSEMBLY
B
1 OF 3
Sketch Size Q'ty
6PCS
5/16''x40mm
5/16'x 12mm 6PCS
6PCS
5/16''x 19mm
M5x 58mm
1PC
14PCS
1/4''x30mm
1/4'x10mm 14PCS
14PCS
1/4''x16mm
M4x 58mm
1PC
2PCS
M4x 25mm 22PCS
