Summary of Contents for FONESTAR SM-506U

  • Page 1 S -506U COMPACT 3-CHANNEL MIXER AND USB/MP3 PLAYER INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4: Controls And Functions Front Panel

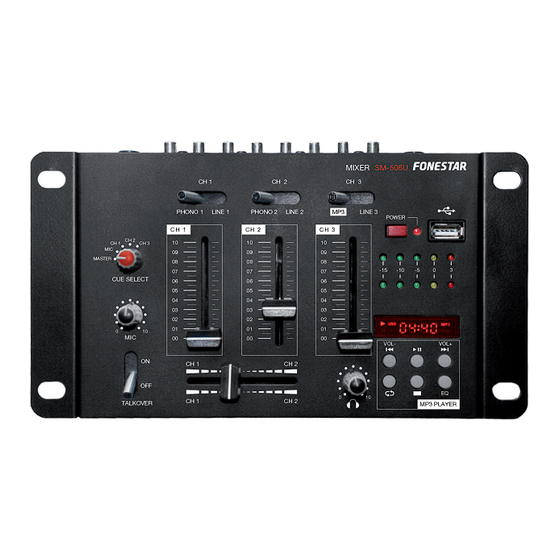

    DESCRIPTION - 3 stereo channel compact mixer and 1 microphone. - USB/MP3 player. CONTROLS AND FUNCTIONS FRONT PANEL 1.- CUE SELECT: channel cue selector. Allows selection of channel to be monitored through the headphones output. 2.- MIC: mic. input volume control. 3.- CH 1 PHONO/LINE: input selector which allows selection of the channel 1 input source between phono level and line level.
  • Page 5: Rear Panel

    (CH 3). - Connect a dynamic microphone to the MIC input. - Switch on the devices in the installation in this order: audio sources, mixer SM-506U and finally the amplifier. - Adjust the volume in each channel using the corresponding controls.
  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS SM-506U CHARACTERISTICS 3 stereo channel and 1 microphone compact DJ mixer. USB/MP3 player. INPUTS 1 unbalanced mic., 6.3 mm jack, 1,000 Ω 1 mV 1 line/USB/MP3 player, 2 x RCA, 100,000 Ω 2 stereo line/phono, 2 x RCA, 100,000 Ω 150 mV, 50,000 Ω 3 mV...
  • Page 7: Warranty

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
