- Page 1 SM-3512U, SM-3520U PROFESSIONAL STEREO MIXER WITH USB/SD/MP3 PLAYER EN Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

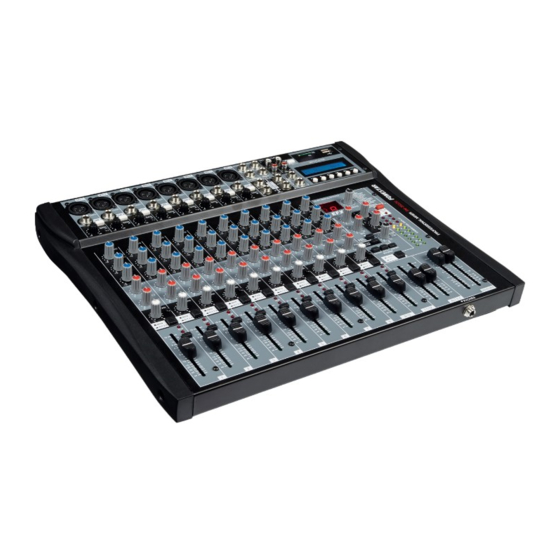

DESCRIPTION Models SM-3512U and SM-3520U are professional stereo mixers with 12 and 20 channels respectively and they are suitable for live applications, PA for musical groups, boardrooms, schools, churches, etc. Each input channel has a 3-band equalizer, gain, high pass filter, 2 auxiliary send, balance and output and cue channel allocation. - Page 5 14.- LINE 9/10, 11/12: balanced/unbalanced line level inputs with the possibility of connecting mono or stereo inputs, 2 x 6.3 mm (balanced) stereo jack connectors. If you want to use channel as a mono channel, just use channel L. 15.- STEREO AUX RETURNS 1/2: auxiliary inputs generally used for connecting the return from the audio signals sent to an external processor using the AUX SENDS 1 and 2 (EFX) outputs.
- Page 6 26.- STEREO AUX RETURNS 1/2 (EFX): volume control for the signals connected to the STEREO AUX RETURNS 1 and 2 inputs . 27.- MAIN/ALT 3-4: for selecting the sending of the STEREO AUX RETURNS 2 (EFX) input to the MAIN mixer bus or the ALT 3-4 sub mix bus. 28.- AUX SENDS 1/2 (EFX): volume control for the AUX 1 and 2 (EFX) auxiliary sender outputs.
-
Page 7: Back Panel
CONTROL ROOM output to auto amplified monitored speakers. Connect the equipment to the power supply. Switch the equipment on in the following order: Firstly, the peripheral equipment, then the SM-3512U or SM-3520U mixer and lastly the power amp. Adjust the gain on each channel while watching the input signal level through the PFL bus and the STEREO LEVEL DISPLAY LED indicator. -
Page 8: Block Diagram
BLOCK DIAGRAM - 8 -... -
Page 9: Specifications
(±15 dB, 2500 Hz), bass (±15 dB, 12 000 Hz), auxiliary send, EFX send, pan, mute-alt 3-4, PFL and sliding volume USB/SD player: play/pause, stop, repeat, fast forward and rewind, and channel 11/12 (SM-3512U) or 19/20 (SM-3520U) allocation Main mix: Sliding volume and output level LED indicator Control room: Source and volume selection... -
Page 10: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los... - Page 11 - 11 -...
