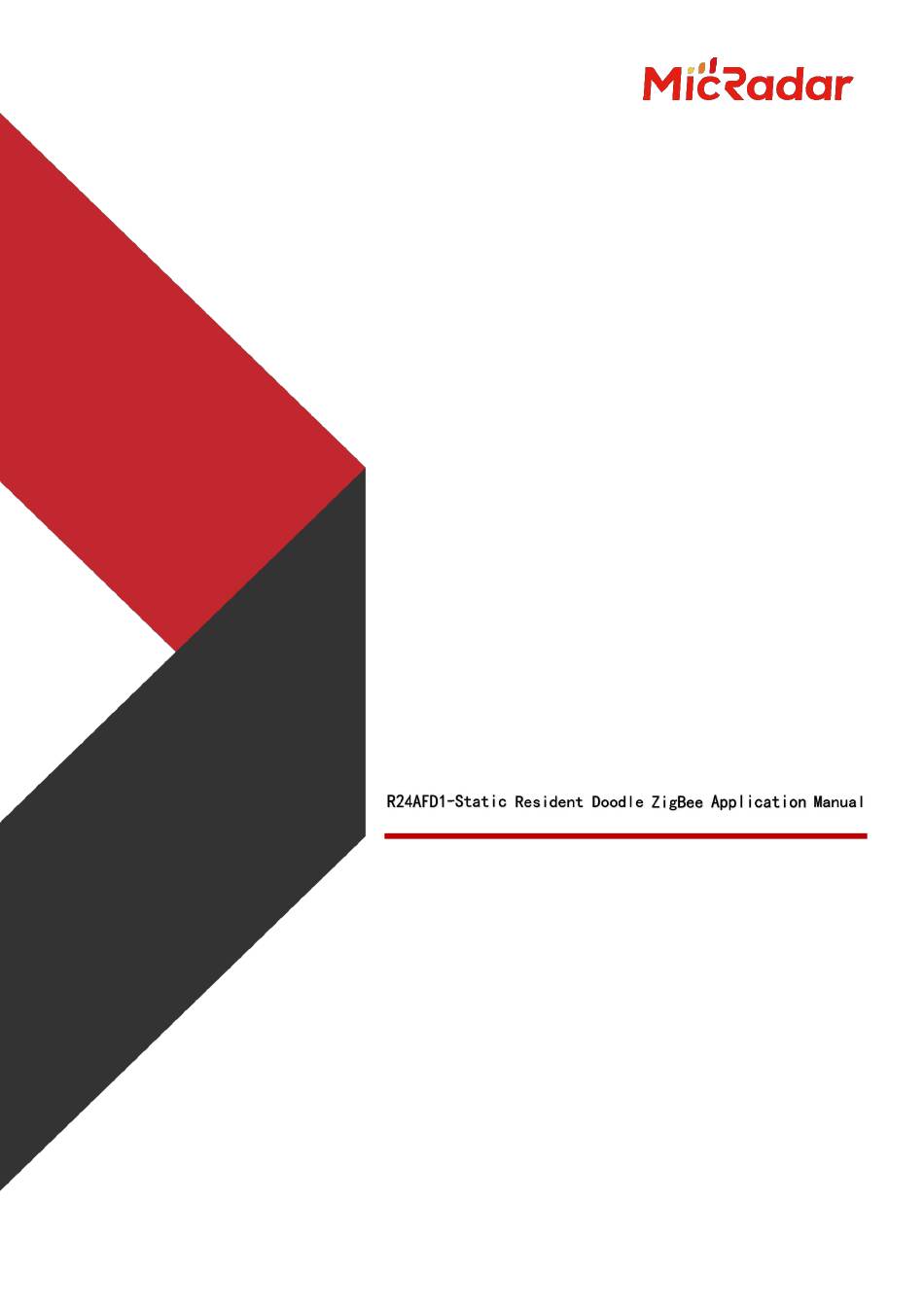

- Page 1 24GMilimeter wave Bio-sensing radar Please read the product instructions carefully before use and keep them properly V1.0 MicRadar Technology (Shenzhen) Co. ,LTD...
- Page 2 R24AFD1-Static dwell tuya ZigBee Application Manual Contents 1. Steps of equipment distribution network routine: ..........2 2. Introduction to the APP panel interface ..............6 3. Introduction to application scenarios and functions of .......... 6 4. Detailed description of main functions of stationary parking detection radar ..7 5.
- Page 3 Static dwell-R24AFD1 1.Device distribution routine steps: (The prerequisite for using Tuya zigbee radar equipment: Tuya zigbee gateway is required) 1、Download through the app store: Tuya Smart APP 2、Click the "red plus sign" in the upper right corner to enter the...
- Page 4 Static dwell-R24AFD1 page , and configure the network according to the type of gateway you have . ( Figure 3 ) 4、Press and hold the button on the gateway until the two LED lights are always on, click Next to enter the gateway to automatically search for pairing.
- Page 5 Static dwell-R24AFD1 add Tuya zigbee devices ( Figure 5 ) ( Picture 5 ) (Picture 6) 6、Press and hold the button on the radar hardware, let go after seeing the red light change from on to off, and see that the red light starts to flash.
- Page 6 Static dwell-R24AFD1 sales@micradar.cn www.micradar.cn TEL:0755-88602663 501, West Block, Phase II, Tian 'an Innovation Technology Plaza, Futian District, Shenzhen...
- Page 7 Static dwell-R24AFD1 2.APP panel interface introduction Panel main interface function setting interface log interface 3.Application Scenarios Functions Stationary Persistence Detection Radar 1. Restrictions on installation scenarios of stationary resident detection radar: · Stationary Persistence Detection Radar is only suitable for overhead installation ·...
- Page 8 Static dwell-R24AFD1 2. The main function points of stationary parking detection radar: Someone/Nobody Status Judgment Active/Still/Stateless Judgment Judgment of body movement range Stationary park alarm 4.Detailed description of main functions of stationary parking detection radar Someone/Nobody Status Judgment: No Time Test: ...
- Page 9 Static dwell-R24AFD1 When the radar state changes from no Switch between different scene one - "someone stops for a moment modes for testing Record the distance to the radar Trigger range according Compare verify with different scene modes corresponding data provided Keep approaching the radar at a If the error is within ±...
- Page 10 Static dwell-R24AFD1 Example test table format: Whether the Testing Status response status is pass frequency time responsive the first time pass Static state test: When the tester is still in the detection area of the human presence radar, or when the person just leaves the unmanned environment without entering the unmanned state, the static state will be output (the "active state"...
- Page 11 Static dwell-R24AFD1 When stationary, the radar body motion amplitude can be displayed as Within the detection range of the "1" selected scene mode When moving, the radar body motion Stay still or keep making big moves amplitude displayed Judging radar status "2-100"...
- Page 12 Static dwell-R24AFD1 Is it normal to cancel the Testing frequency pass stationary parking alarm? the first time pass 5.Historical version update instructions Revision Release Data Summary V1.0_0 606 2022/6/6 first draft sales@micradar.cn www.micradar.cn TEL:0755-88602663 501, West Block, Phase II, Tian 'an Innovation Technology Plaza, Futian District, Shenzhen...
