- Page 1 D A IK IN ROOM AIR CON D ITI ON E R OPERATION MANUAL M ODEL S FVXM25YVMA FVXM35YVMA FVXM45YVMA FVXM50YVMA FVXM60YVMA FVXM71YVMA [Sticker attachment area] Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.
- Page 2 Features Enhanced comfort, energy Enhanced comfort, energy savings and air cleaning savings and air cleaning HOME LEAVE HOME LEAVE operation is a function which allows you to record your preferred temperature and airflow rate settings. You can start your favorite operation mode simply by pressing the HOME LEAVE button on the remote controller.
-
Page 3: Table Of Contents
Contents Read Before Operation Safety Precautions .......... Names of Parts ..........About smart control ........Preparation Before Operation ...... Basic Operation AUTO • DRY • COOL • HEAT • FAN Operation ........Adjusting the Airflow Rate ....Adjusting the Airflow Direction ... Useful Functions FLOOR WARMING Operation .. -
Page 4: Read Before Operation
Read Before Operation Safety Precautions Read the precautions in this manual carefully This appliance is filled with R32. before operating the unit. • Keep this manual where the user can easily find it. • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. - Page 5 Read Before Operation CAUTION • Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
-
Page 6: Names Of Parts

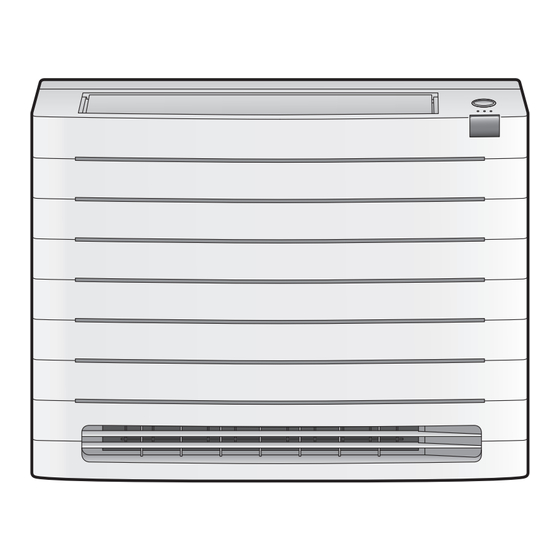

Read Before Operation Names of Parts Indoor Unit Display DAIKIN EYE operation lamp Signal receiver (Multi-colour) • It receives signals from • The lamp colour changes according to the remote controller. the operation. See “List of lamps”. • When the unit receives a signal, you will hear a beep sound. - Page 7 Read Before Operation „ Open the front panel ATTENTION • Careful opening the front panel attached the string. Wireless LAN connecting adapter (inside) Page 9, 37 Push up Tabs (left/right) Indoor unit ON/OFF switch • Place your fingers and (inside) push the tabs on the •...
- Page 8 Read Before Operation Names of Parts Remote Controller Signal transmitter Receiver Display (LCD) • Displays the current settings. (In this illustration, each section is shown with all its displays on for the • To use the remote controller, aim the purpose of explanation.) transmitter at the indoor unit.
- Page 9 Read Before Operation „ Open the front cover MODE selector button • Selects the operation mode. (AUTO/DRY/COOL/HEAT/FAN) Page 14 HOME LEAVE button ECONO/QUIET button • HOME LEAVE operation. • ECONO/OUTDOOR UNIT QUIET operation. Page 23 Page 27 SWING button : WEEKLY button •...
-
Page 10: About Smart Control
Read Before Operation About smart control Wireless LAN connecting adapter The wireless LAN connecting adapter function requires the DAIKIN Mobile Controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. ATTENTION •... -
Page 11: Preparation Before Operation
Read Before Operation Preparation Before Operation CAUTION Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure. Please observe the following precautions and use safely. • If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional. - Page 12 Read Before Operation Preparation Before Operation „ To set the clock Press “ ” appears on the LCD. “ ” and “ ” blink. Press to set the current day of the week. Display Day of the week Monday Tuesday Wednesday Thursday Friday...
- Page 13 Read Before Operation „ To set the brightness of the indoor unit lamps Adjust the brightness of the indoor unit display as desired, or turn OFF the display. „ To set Press and hold the button for 2 seconds. • “ ”...
- Page 14 Read Before Operation Preparation Before Operation „ To set the air outlet selection To let the unit decides automatically which air outlet should be used or set the top air outlet only. „ To set Press and hold the button for 2 seconds. •...
-
Page 15: Basic Operation
AUTO COOL HEAT Press • “ ” appears on the LCD. Operation DAIKIN EYE operation lamp • The DAIKIN EYE operation lamp lights up. AUTO Red/Blue The colour of the lamp varies depending Green on the operation mode. COOL Blue... - Page 16 Basic Operation AUTO • DRY • COOL • HEAT • FAN Operation „ To change the temperature setting Press • Press to raise the temperature and press to lower the temperature. Each pressing of the button changes the temperature by 0.5°C. COOL operation HEAT operation AUTO operation...
- Page 17 Basic Operation „ To set the dry keep function To stops the airflow of indoor unit when the temperature controllers is dry keep set off to prevent increase of room humidity when the temperature nearly the room setting. Press and hold the button for 2 seconds. Press and select menu number .
-
Page 18: Adjusting The Airflow Rate
Basic Operation Adjusting the Airflow Rate You can adjust the airflow rate to increase your comfort. „ To adjust the airflow rate setting Press • Each pressing of the button changes the airflow rate setting in sequence. AUTO Indoor unit quiet Airflow rate 1-5 (Low to High) •... -
Page 19: Adjusting The Airflow Direction
Basic Operation Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. ATTENTION • Always use a remote controller to adjust the angles of the flap. – If you attempt to move the flap and louvres forcibly by hand when they are swinging, the mechanism may be damaged. -
Page 20: Useful Functions
Useful Functions FLOOR WARMING Operation FLOOR WARMING operation can effectively warm large floor areas by closing the top air outlet and increasing the air velocity to reach distant floor surfaces. Airflow direction of FLOOR WARMING operation ; Air is emitted from the lower air outlets HEAT operation ATTENTION •... -
Page 21: Mold Proof Operation
Useful Functions MOLD PROOF Operation The inside of the air conditioner is dried to reduce the occurrence of mold and odour. When COOL or DRY operation is performed, condensation may occur inside the air conditioner and may cause mold or odour. It is recommended to dry the inside of the air conditioner using MOLD PROOF operation. - Page 22 MOLD PROOF is “ON” (green) Blinks (colour depends on mode setting) MOLD PROOF is “OFF” Goes off Air conditioner operating (DAIKIN EYE lamp lights up) Lights up MOLD PROOF is “ON” Goes off (green) Air conditioner stopped (DAIKIN EYE lamp goes off)
-
Page 23: Flash Streamer Air Cleaning Operation
Useful Functions FLASH STREAMER AIR CLEANING Operation The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the deodorizing filter (enzyme blue) and the air filters, this function cleans the air in the room. „... -
Page 24: Home Leave Operation
Useful Functions HOME LEAVE Operation HOME LEAVE operation is a function which allows you to record your preferred temperature and airflow rate settings. „ To start • Check that the unit is operating, “ ” is appears on the LCD. Home Leave Press •... - Page 25 Useful Functions „ What’s the HOME LEAVE operation? Is there a set temperature and airflow rate which is most comfortable, a set temperature and airflow rate which you use the most? HOME LEAVE operation is a function that allows you to record your favorite set temperature and airflow rate. You can start your favorite operation mode simply by pressing the HOME LEAVE button on the remote controller.
-
Page 26: Powerful / Heat Plus Operation
Useful Functions POWERFUL / HEAT PLUS Operation POWERFUL operation quickly maximises the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity. HEAT PLUS operation to increase the airflow temperature coming from the unit. The air temperature will be higher than during normal heating operation. - Page 27 Useful Functions NOTE Possible combinations of POWERFUL / HEAT PLUS operation and basic operations Operation mode AUTO COOL HEAT POWERFUL – – – – HEAT PLUS Regarding the combination of POWERFUL and other operations POWERFUL + HEAT PLUS POWERFUL + FLOOR WARMING Not available* POWERFUL + ECONO POWERFUL + OUTDOOR UNIT QUIET...
-
Page 28: Econo / Outdoor Unit Quiet Operation
Useful Functions ECONO / OUTDOOR UNIT QUIET Operation ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit. OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. -
Page 29: Timer Operation
TIMER Operation ON/OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together. [ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER) „... - Page 30 TIMER Operation ON/OFF TIMER Operation [OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER) „ To set • Check that the clock is correct. If not, set the clock to the present time. Page 11 Press “ ”...
- Page 31 TIMER Operation [ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER) • Check that the clock is correct. If not, set the clock to the present time. Page 11 Press and hold for about 5 seconds, when signal indicater ( ) blink, release your finger from the button.
-
Page 32: Weekly Timer Operation
TIMER Operation WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family’s life style. „ Setting example of the WEEKLY TIMER The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend. [Monday] Make timer settings for programmes 1-4. - Page 33 TIMER Operation „ To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. Page 11 Programme 1 Programme 2 Programme 3 Programme 4 [Monday] 25.0°C...
- Page 34 • Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the DAIKIN EYE lamp. • “ ” appears on the LCD and WEEKLY TIMER operation is activated.
- Page 35 TIMER Operation Copy mode • A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied. Programme 1 Programme 2 Programme 3 Programme 4 [Monday] 25.0°C 27.0°C 6:00...
- Page 36 TIMER Operation WEEKLY TIMER Operation „ Confirming a reservation • The reservation can be confirmed. Setting Displays Normal Confirmation Press • The day of the week and the reservation number of the current day will be displayed. Press to select the day of the week and the reservation number to be confirmed.
- Page 37 TIMER Operation „ To delete a reservation An individual reservation Press • The day of the week and the reservation number will be displayed. Press to select the day of the week and the reservation number to be deleted. Press •...
-
Page 38: System Control Via Smart Control
• Before downloading the application software for installation, please read ‘‘Configuration” Page 9 For Android phones 1) Open [Google Play]. 2) Search using the application name: [DAIKIN Mobile Controller]. 3) Follow the on-screen instructions for installation. For iOS phones 1) Open [App Store]. - Page 39 NOTE Note on wireless LAN connection • When wireless LAN connecting, the DAIKIN EYE lamp blinking alternately with the MOLD PROOF lamp (green). This MOLD PROOF light is not related to the MOLD PROOF operation.
- Page 40 • SP-3 menu cannot be used on this air conditioner. Do not need to activate. If you accidentally activated this menu, the DAIKIN EYE lamp blinks constantly. Please follow the steps below to solve the problem. There are 2 ways to deactivate SP-3 menu.
- Page 41 NOTE Note on simple connection (WPS connection) • If you fail to connect (the DAIKIN EYE lamp red continues to blink), repeat steps 1-5. Alternatively, try connecting via your device directly. Please refer to “Access point connection (AP connection)”. Page 41...
- Page 42 ” blinks briefly. • The DAIKIN EYE lamp red blinks. Press to return to the default screen. NOTE Note on access point connection (AP connection) • If you fail to connect (the DAIKIN EYE lamp red continues to blink), repeat steps 1-2.
-
Page 43: Care
Care Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn off the circuit breaker. • Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury. „... - Page 44 Care Care and Cleaning „ Air filter Open and remove the front panel. Wash the air filters with water or clean them with vacuum cleaner. • Place your fingers and push the tabs on the unit (the left and right sides). •...
- Page 45 Care „ Filter (small) * For the applicable filter type, please refer to Page 42 Attaching Clean or replace. [Cleaning] Open the front panel and Deodorizing filter (enzyme blue) : Blue pull out the air filters. Page 43 / Titanium apatite deodorizing filter : Insert the filter.
- Page 46 Care Care and Cleaning „ Prior to a long period of non-use Operate the MOLD PROOF. Page 20 Clean the air filters and reattach them. Page 43 To prevent battery leakage, take out the batteries from the remote controller. „ We recommend periodical maintenance •...
-
Page 47: When The Need Arises
When the Need Arises Commonly occurring sounds. • The following cases are not air conditioner troubles but have some reasons. You may just continue using it. „ A sound like flowing water Indoor unit • This sound is generated because the refrigerant in the air conditioner is flowing. -
Page 48: Troubleshooting
• Turn off the power with the circuit breaker and restart operation with the remote controller. DAIKIN EYE lamp is blinking. If the DAIKIN EYE lamp is still blinking, check the error code and consult your dealer. Page 50 The air conditioner suddenly stops operating... - Page 49 Description / what to check • Is the display brightness set to “Off”? The DAIKIN EYE lamp is off, but the air conditioner is operating. • MOLD PROOF operation is being performed. It is possible to stop MOLD PROOF operation while it is in progress.
- Page 50 While using the application • Is the wireless LAN connecting adapter out-of-home status is OFF ?, please set to ON or check the application manual for the out-of-home “Initial Set up” in the DAIKIN Mobile Controller application. “Out-of-home” mode. • Communication between the router and the internet connection may not be working.
- Page 51 When the Need Arises „ Fault diagnosis by remote controller • In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code. When is held down for about 5 seconds, “...
- Page 52 Quick Reference Swing Push up Display Display MODE The two-dimensional bar code is a manufacturing code. 3P705032-11D M23N071A (2402) HT...
