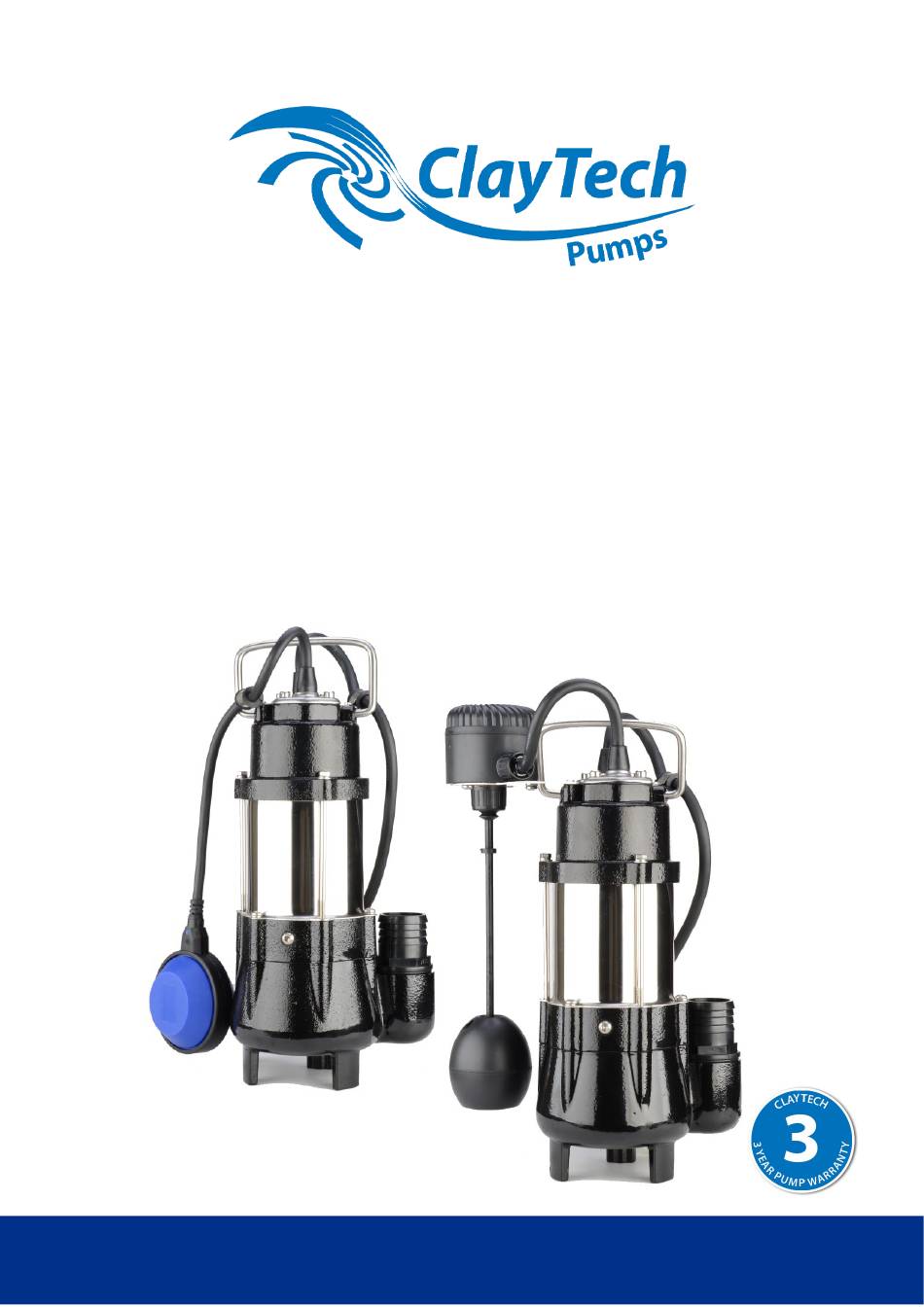

- Page 1 ClayTech B7X and B7XF Cast Iron Submersible Vortex Drainage Pumps 811526 / CLA-B7X (flexible float) 811527 / CLA B7XF (vertical fixed float) CLA-B7X and B7XF Series Installation Manual...
-
Page 2: Table Of Contents
Congratulations on your purchase of a ClayTech B7 Series Submersible Vortex Drainage Pump. ClayTech B7 pumps are vortex type drainage pumps with a cast iron, semi vortex impeller. Vortex type impellers allow for the free passage of soft solids making the... -
Page 3: Iso 7010 Symbols Used In This Manual
4. ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully 5. Warnings Read the manual carefully before starting and retain for future reference. -
Page 4: Cautions
Running the pump without water or allowing the pump to run dry will damage the mechanical seal and void the warranty. The ClayTech B7 pumps rely on water for cooling of the motor. The pumps can operate partially submerged for up to 10 minutes. Operating these pumps at very low flow i.e. -
Page 5: Electrical Connections And Data
Never lift the pump by the power cord 9. Installation & Operating Instructions ClayTech B7 submersible pumps are suitable for small to medium clean water dewatering and or wastewater transfer applications including use in AWTS (septic) systems. These pumps should never be used to pump flammable or corrosive fluids. -
Page 6: 10. Float Adjustment
10. Float adjustment Automatic pumps with a float switch should be installed in a sump or pit of suitable size for the float switch to operate correctly. To avoid excessive thermal shock to the motor the pump should not start more than 20 times in any one- hour period. -
Page 7: 11. Trouble Shooting Guide
11. Trouble Shooting Guide Fault Possible Cause Remedy Check that power is available at the power socket No mains supply and that it is switched on Blown fuse or tripped breaker Replace fuse or reset breaker Impeller jammed Disconnect power and clean impeller Pump does not Thermal overload has been Allow the switch to reset itself... -
Page 8: 12. Warranties - Terms And Conditions
12. Warranties – Terms and Conditions This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document. - Page 9 www.whiteint.com.au www.whiteint.co.nz Please always refer to our website for further technical information & new product innovations Disclaimer: Every effort has been made to publish the correct information in this manual. No responsibility will be taken for errors, omissions or changes in product specifications. ©...
