Viking MICROMATIC VK200 Technical Data Manual

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page: www.vikinggroupinc.com
1. DESCRIPTION

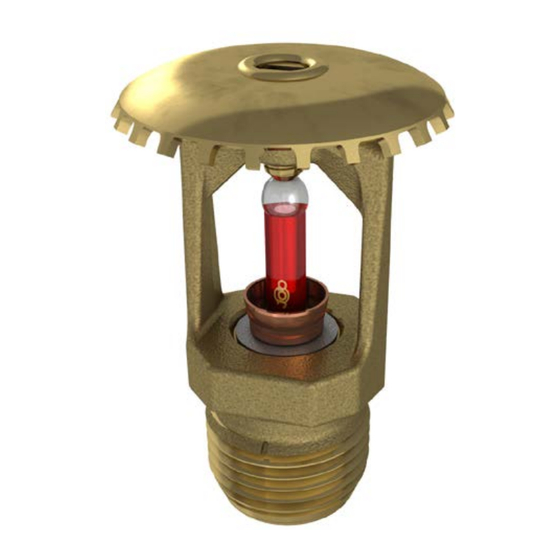

The Viking Micromatic
thermosensitive, glass-bulb spray sprinkler available in several different finishes, tem-
perature ratings, and K-Factors to meet design requirements. The special
and Electroless Nickel PTFE
where colors are desired. In addition, these coatings have been investigated for instal-
lation in corrosive environments and are listed/approved as as indicated in the Approval
Charts.
Viking standard response sprinklers may be ordered and/or used as open sprinklers (glass
bulb and pip cap assembly removed) on deluge systems. Refer to Ordering Instructions.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
FM Approved: Class Series 2000
VdS Approved: Certificates G414013, G414014, G498006, and G4060055
LPCB Approved: Certificate 096e/06
CE Certified: Standard EN 12259-1, Declaration of Performance DOP_S0021_5-2-21, DOP_VK200-260C_17-2-21
China Approval: Approved according to China GB Standard
MED Certified: Standard EN 12259-1, EC-certificate of conformity 0832-MED-1003
NOTE: Other International approval certificates are available upon request.
Refer to Approval Charts and Design Criteria for listing and approval requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: 175 psi (12 bar) wwp
Factory tested hydrostatic rating: 500 psi (34.5 bar)
Thread size: 1/2" NPT, 15 mm BSP, 3/4" NPT, 20 mm BSPT
Nominal K-Factor: 8.0 U.S. (115.2 metric**)
Glass-bulb fluid temperature rating: -65 °F (-55 °C)
Overall Length: 2-3/8" (60 mm)
† cULus Listing, FM Approval, and NFPA 13 installs require a minimum of 7 psi (0.5 bar). The minimum operating pressure for LPCB and CE
Approvals ONLY is 5 psi (0.35 bar).
** Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Material Standards:
Frame Casting: Brass UNS-C84400
Deflector: Brass UNS-C23000 or Phosphor Bronze UNS-C51000
Bulb: Glass, nominal 5 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Screw: Brass UNS-C36000
Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
For Polyester Coated Sprinklers: Belleville Spring-Exposed
For ENT coated Sprinklers: Belleville Spring - Exposed, Screw and Pipcap - ENT plated.
††Not for FM Approval.
Ordering Information: Refer to Table 1.
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
5. OPERATION
During fire conditions, the heat-sensitive liquid in the glass bulb expands, causing the glass to shatter, releasing the pip cap and
sealing spring assembly. Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern
to extinguish or control the fire.
Form No. F_032814 Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Standard Response Upright VK200 Sprinkler is a small,
®
(ENT) coatings can be used in decorative applications
†
August 2023
MICROMATIC STANDARD
®
RESPONSE UPRIGHT
SPRINKLER VK200 (K8.0)
Polyester
Replaces Form No. F_032814 Rev 21.1
(updated material specifications)
Page 1 of 5
