1. PRODUCT IDENTIFICATION
This document covers the following product, hereafter
referred to as "sprinkler":
VK130 and VK132: Standard Response, Standard
Coverage K5.6 (80.6) Sprinkler.
2. INTENDED USE
The sprinkler is intended to be used in automatic fire
sprinkler systems as allowed by applicable approval
authorities. The sprinkler must be used in accordance
with:
1. the sprinkler's Listings, Approvals, and associated
design requirements.
2. the recognized design and installations standards
issued, for example NFPA, FM, EN, VdS, or LPCB.
3. the latest revisions of all applicable manufacturer's
documentation.
Governmental codes, ordinances, and standards may apply and may differ from one another.
WARNING
!
Cancer and Reproductive Harm www.P65Warning.ca.gov
3. LISTING AND APPROVALS
Refer to section 5 for details and requirements that must be followed.
cULus Listed
FM Approved
CE
LPCB Approved
F_060691 Rev 03 December 2023
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
UKCA Approved
Micromatic® Standard
Response Stainless Steel
Sprinklers

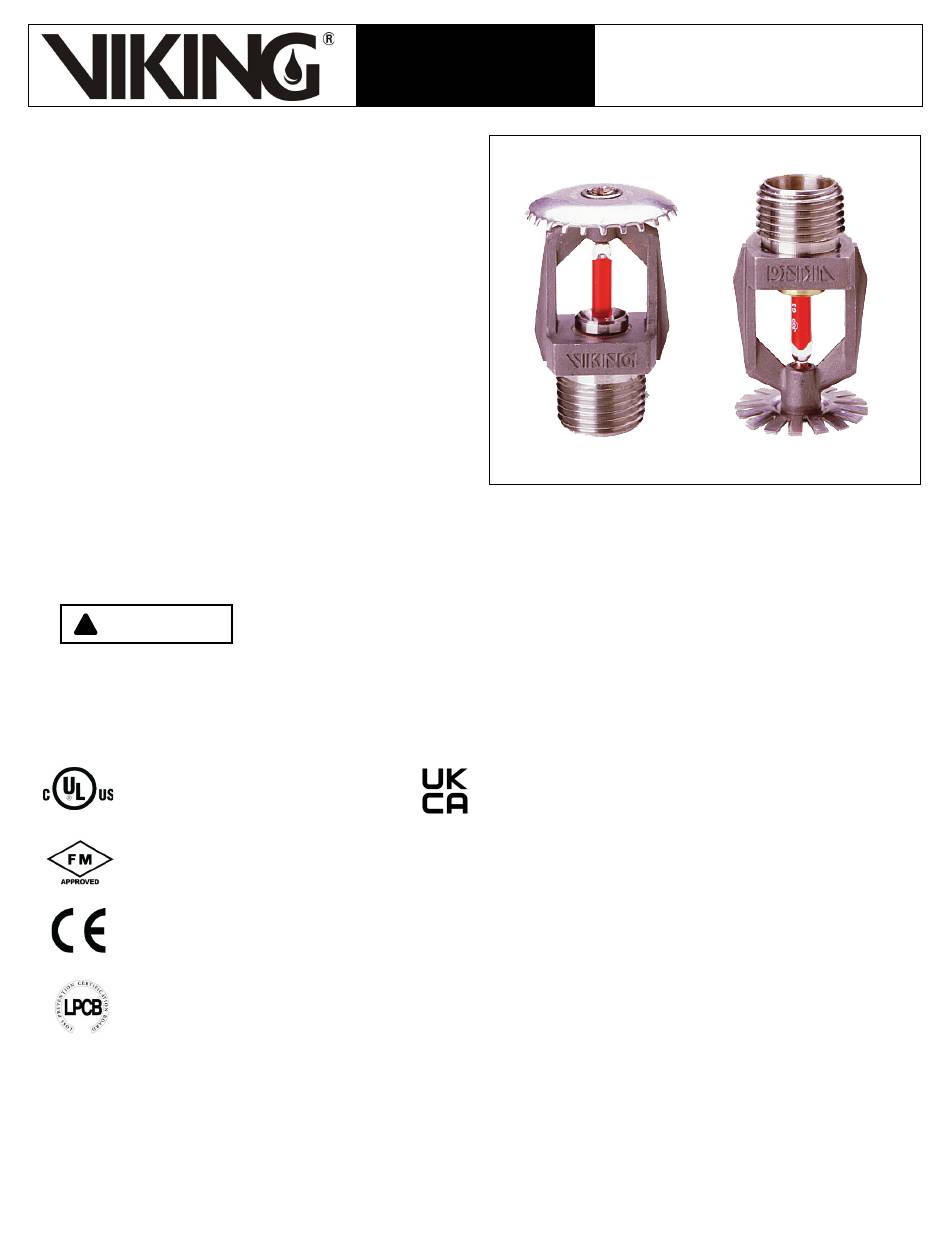

Figure – 1 VK130 & VK132
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micromatic VK130 and is the answer not in the manual?

Questions and answers

Related Manuals for Viking Micromatic VK130

Summary of Contents for Viking Micromatic VK130

  • Page 1 Page 1 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET TECHNICAL DATA SHEET Sprinklers 1. PRODUCT IDENTIFICATION This document covers the following product, hereafter referred to as “sprinkler”: VK130 and VK132: Standard Response, Standard Coverage K5.6 (80.6) Sprinkler. 2.

  • Page 2: Technical Specifications

    Page 2 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 4. TECHNICAL SPECIFICATIONS 4.1 Definitions Standard Pendent Sprinkler: A sprinkler intended to be oriented with the deflector below the frame so that water flows downward through the orifice, striking the deflector and forming an umbrella-shaped spray pattern downward. These sprinklers are marked “SSP”...
  • Page 3 Page 3 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 4.3 Markings and Dimensions Figure – 2: Markings (VK130) Figure – 3: Dimensions (VK130) VK130 Description VK130 Value SSP: Standard Spray Pendent; SSU: Standard Spray Sprinkler type Upright Nominal temperature rating See marking...
  • Page 4 Page 4 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 4.4 Materials of Construction NOTICE: Do not disassemble the sprinkler. Figure – 6 Sprinkler Components VK130 Description Material Compression screw Stainless steel UNS-C31603 Deflector Stainless steel UNS-N08367 Belleville spring (*under pip cap) Nickel alloy, coated on both sides with PTFE tape Sprinkler frame...
  • Page 5 For sprinkler pricing, refer to Viking’s current price list. All available Viking sprinkler base part numbers are approved and/or listed for specific material, equipment, and service standards. The following Approval tables indicate which temperature ratings, sprinkler finishes, and escutcheons (if applicable) each available sprinkler base part number is approved/listed for.
  • Page 6 ENT use, contact Viking Corp. 5.6 Available Temperature Ratings Viking sprinklers are available in several temperature ratings that relate to a specific temperature classification. Applicable installation rules mandate the use and limitations of each temperature classification. In selecting the appropriate temperature classification, the maximum expected ceiling temperature must be known.

  • Page 7: Ordering Procedure

    Page 7 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 6. ORDERING PROCEDURE 6.1 Sprinkler 1. Choose a sprinkler base part number with the required thread size and Listing or Approval (refer to section 5): 2. Add the suffix for the desired finish. 3.
  • Page 8 Page 8 of 9 Micromatic® Standard Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 6.2 Sprinkler Accessories For the most appropriate sprinkler accessories, refer to the Approval Charts in section 5. Figure – 7: Sprinkler Accessories Image Reference Part Number Description 21475M/B Standard wrench 10896W/B...
  • Page 9 Response Stainless Steel TECHNICAL DATA SHEET Sprinklers 7. CONTACT The sprinkler and accessories are available through Viking distributors only. Contact your local Viking sales office, which can be found on our website: Americas and Asia: www.vikinggroupinc.com/locations OR Europe, Middle East, Africa (EMEA): www.viking-emea.com/contact...
  • Page 10 Refer to the appropriate technical data page and NFPA standards for complete care, handling, installation, and maintenance instructions. For additional product and system information Viking data pages and installation instructions are available on the Viking Web site at www.vikinggroupinc.com.
  • Page 11 * Refer to the appropriate current technical data pages for complete care, handling, and installation instructions. Data pages are included with each shipment from Viking or Viking distributors. They can also be found on the Web site at www. vikinggroupinc.com.
  • Page 12 • while ceiling finish work is being completed. Use only the designated Viking recessed sprinkler wrench (refer to the appropriate sprinkler data page) to install these sprinklers. NOTE: The protective cap is • temporarily removed during installation and then placed back on the sprinkler for protection until finish work is completed.
  • Page 13 Take care not to crack the wax coating on the units. • For touching up the wax coating after installation, wax is available from Viking in bar form. Refer to Table 1 below. The coating MUST be repaired after •...

  • Page 14: Technical Data

    1. DESCRIPTION Viking fire sprinklers consist of a threaded frame with a specific waterway or orifice size and a deflector for distributing water in a specified pattern. A closed or sealed sprinkler refers to a complete assembly, including the thermosensitive operating element. An open sprinkler does not use an operating element and is open at all times.
  • Page 15 TECHNICAL DATA SPRINKLER OVERVIEW The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058 Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com VERTICAL SIDEWALL (VSW) SPRINKLER: A sprinkler intended for installation near the wall and ceiling. The deflector provides a water spray pattern outward in a quarter-spherical pattern and can be installed in the upright or pendent position with the flow arrow in the direction of discharge.
  • Page 16 Refer to NFPA 25 for Inspection, Testing and Maintenance requirements. 7. AVAILABILITY Viking sprinklers are available through a network of domestic and international distributors. See The Viking Corporation web site for the closest distributor or contact The Viking Corporation. 8. GUARANTEE For details of warranty, refer to Viking’s current list price schedule or contact Viking directly.

  • Page 17: Warranty Terms And Conditions

    For more information, go to www.P65Warnings.ca.gov 2. WARRANTY TERMS AND CONDITIONS For details of warranty, refer to Viking’s current list price schedule at www.vikinggroupinc.com or contact Viking directly. New Bulletin Form No. F_111218 18.11.15...
