Viking VK3522 Technical Data Sheet

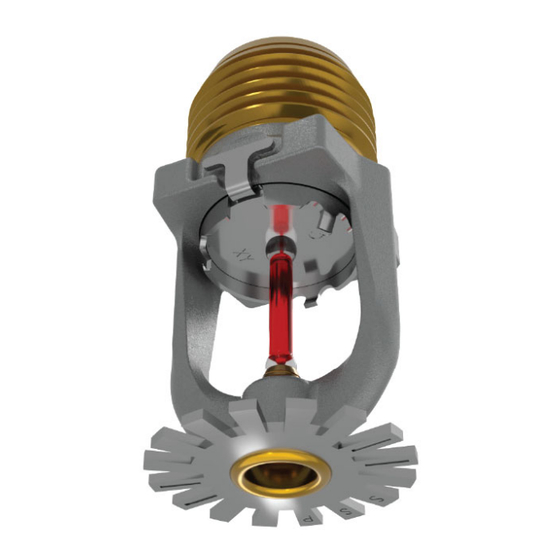

Quick response pendent sprinkler
Hide thumbs Also See for VK3522:

Advertisement

Table of Contents

1. PRODUCT IDENTIFICATION
This document covers the following product, hereafter
referred to as "sprinkler":
VK3522: Quick Response, Standard Coverage,
Pendent, K8.0 (115) Sprinkler.
2. INTENDED USE
The sprinkler is intended to be used in automatic fire
sprinkler systems as allowed by applicable approval
authorities. The sprinkler must be used in accordance
with:
1. the sprinkler's Listings, Approvals, and associated
design requirements.
2. the recognized design and installations standards
issued, for example NFPA, FM, EN, VdS, or LPCB.
3. the latest revisions of all applicable manufacturer's
documentation.
Governmental codes, ordinances, and standards may apply and may differ from one another.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
3. LISTING AND APPROVALS
Refer to section 5 for details and requirements that must be followed.
cULus Listed
FM Approved
CE
LPCB Approved
F_111420 Rev 04 March 2024
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
VdS Approved
UKCA Approved
MED Approved
VK3522 Quick Response
Pendent Sprinkler K8.0 (115)
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK3522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viking VK3522

Summary of Contents for Viking VK3522

  • Page 1 Pendent Sprinkler K8.0 (115) 1. PRODUCT IDENTIFICATION This document covers the following product, hereafter referred to as “sprinkler”: VK3522: Quick Response, Standard Coverage, Pendent, K8.0 (115) Sprinkler. 2. INTENDED USE The sprinkler is intended to be used in automatic fire sprinkler systems as allowed by applicable approval authorities.

  • Page 2: Technical Specifications

    Page 2 of 9 VK3522 Quick Response TECHNICAL DATA SHEET Pendent Sprinkler K8.0 (115) 4. TECHNICAL SPECIFICATIONS 4.1 Definitions Standard Pendent Sprinkler: A sprinkler intended to be oriented with the deflector below the frame so water flows downward through the orifice, striking the deflector and forming an umbrella-shaped spray pattern downward. These sprinklers are marked “SP/RP”...
  • Page 3 Page 3 of 9 VK3522 Quick Response TECHNICAL DATA SHEET Pendent Sprinkler K8.0 (115) 4.3 Markings and Dimensions Figure – 1 Markings Figure – 2: Dimensions Description Value Response type QR: Quick Response Listings and Approvals See sections 3 and 5...
  • Page 4 Page 4 of 9 VK3522 Quick Response TECHNICAL DATA SHEET Pendent Sprinkler K8.0 (115) 4.4 Materials of Construction NOTICE: Do not disassemble the sprinkler. Figure – 3 Sprinkler Components Description Material Brass CW612N, CW508L, UNS–C36000 or UNS–C26000 Compression screw Stainless steel UNS S30400...
  • Page 5 3 = ENT Approval Specification (Escutcheons) Key: X = Installed with Viking Recessed Escutcheons Models E-1, E-2, E-3, NP-1, NP-2, and NP-3, or Viking Standard Surface Mounted Escutcheons Y = Installed with Viking Recessed Escutcheons Models E-1 and NP-1, or Viking Standard Surface Mounted Escutcheons 1 For complete part number, refer to Viking’s current price list.
  • Page 6 Guards and Water Shields for XT1 Sprinklers technical data sheet for more information. 5.7 Escutcheons The sprinkler is approved for use with various styles of Viking escutcheons. Specific installation dimensions apply that must be observed. Refer to the sprinkler's Handling and Installation instructions for more information.

  • Page 7: Ordering Procedure

    NOTE: For Polyester, insert the desired temperature rating suffix where the dash (–) is shown. EXAMPLE: 23874MB/W = VK3522 with white polyester finish and 155 °F (68 °C) nominal temperature rating. This sprinkler is to be installed into an area with a maximum ambient temperature of 100 °F (38 °C).
  • Page 8 Page 8 of 9 VK3522 Quick Response TECHNICAL DATA SHEET Pendent Sprinkler K8.0 (115) 6.2 Sprinkler Accessories NOTE: Images not to scale. Figure – 4: Sprinkler Accessories Image Reference Part Number Description 23559MB Straight wrench: required for proper installation 23560MB...
  • Page 9 VK3522 Quick Response TECHNICAL DATA SHEET Pendent Sprinkler K8.0 (115) 7. CONTACT The sprinkler and accessories are available through Viking distributors only. Contact your local Viking sales office which can be found on our website: Americas and Asia: www.vikinggroupinc.com/locations OR Europe, Middle East, Africa (EMEA): www.viking-emea.com/contact...

  • Page 10: Product Identification

    • VK3521 Quick Response Pendent Sprinkler K8.0 (115) • VK3522 Quick Response Pendent Sprinkler K8.0 (115) 2. OTHER APPLICABLE DOCUMENTS For intended use and relevant conditions for the safe use of the specific sprinkler refer to the appropriate Technical Data Sheet.

  • Page 11: Transport And Handling

    Page 2 of 6 Model XT-1 Pendent Handling and Installation Sprinklers Instructions 3. TRANSPORT AND HANDLING WARNING A damaged or compromised sprinkler poses the risk of fatal consequences. Damaged or compromised sprinklers will not operate properly which could lead to loss of life. •...

  • Page 12: Installation

    CAUTION Cutting Hazard. Sprinklers, accessories, cabinets, and packaging can have sharp edges that can cause cuts. • Wear appropriate personal protective equipment (gloves) while handling product. Figure – 1 Installation Dimensions with Viking Escutcheons F_030722 Rev 01 August 25, 2022...
  • Page 13 Page 4 of 6 Model XT-1 Pendent Handling and Installation Sprinklers Instructions Optional Guards, Shields, and Escutcheons: If the sprinkler shall be installed together with a guard, shield, or escutcheon refer to the applicable documents for the products used. 1. Install all required piping in the intended installation location. 2.
  • Page 14 Page 5 of 6 Model XT-1 Pendent Handling and Installation Sprinklers Instructions 8. NOTICE: Over-tightening the sprinkler can cause permanent damage. For 1/2" NPT (or 15 mm BSPT) sprinkler, tighten up to a maximum torque of 14 ft-lbs (19 Nm). For 3/4" NPT (or 20 mm BSPT) sprinkler, tighten up to a maximum of 20 ft-lbs (27,1 Nm).
  • Page 15 Handling and Installation Sprinklers Instructions 5. CONTACT The sprinkler and accessories are available through Viking distributors only. Contact your local Viking sales office which can be found on our website: Americas and Asia: www.vikinggroupinc.com/locations OR Europe, Middle East, Africa (EMEA): www.viking-emea.com/contact...
  • Page 16 VK2001 SR Upright Sprinkler K8.0 (115) • VK3521 QR Pendent Sprinkler K8.0 (115) • VK2002 SR Upright Sprinkler K8.0 (115) • VK3522 QR Pendent Sprinkler K8.0 (115) • VK3001 QR Upright Sprinkler K5.6 (80.6) • VK1181 SR Conventional Sprinkler K5.6 (80.6) •...

  • Page 17: Removal And Replacement

    Page 2 of 3 Operation and Maintenance Model XT-1 Sprinklers Instructions Obstructions and obstacles Obstructions and obstacles may compromise sprinkler discharge patterns which are critical for proper fire protection. • NEVER attach items to sprinklers or hang items • ALWAYS remove obstructions and obstacles to from the ceiling in an area protected with sprinklers.
  • Page 18 At end of use the product described here should be disposed of via the national recycling system. 6. CONTACT The sprinkler and accessories are available through Viking distributors only. Contact your local Viking sales office which can be found on our website: Americas and Asia: www.vikinggroupinc.com/locations...
